Door Mirror Remote Control Switch (Changeover Switch) Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    Check the operation on "MIR CHNG SW-R" or "MIR CHNG SW-L" in the DATA MONITOR.

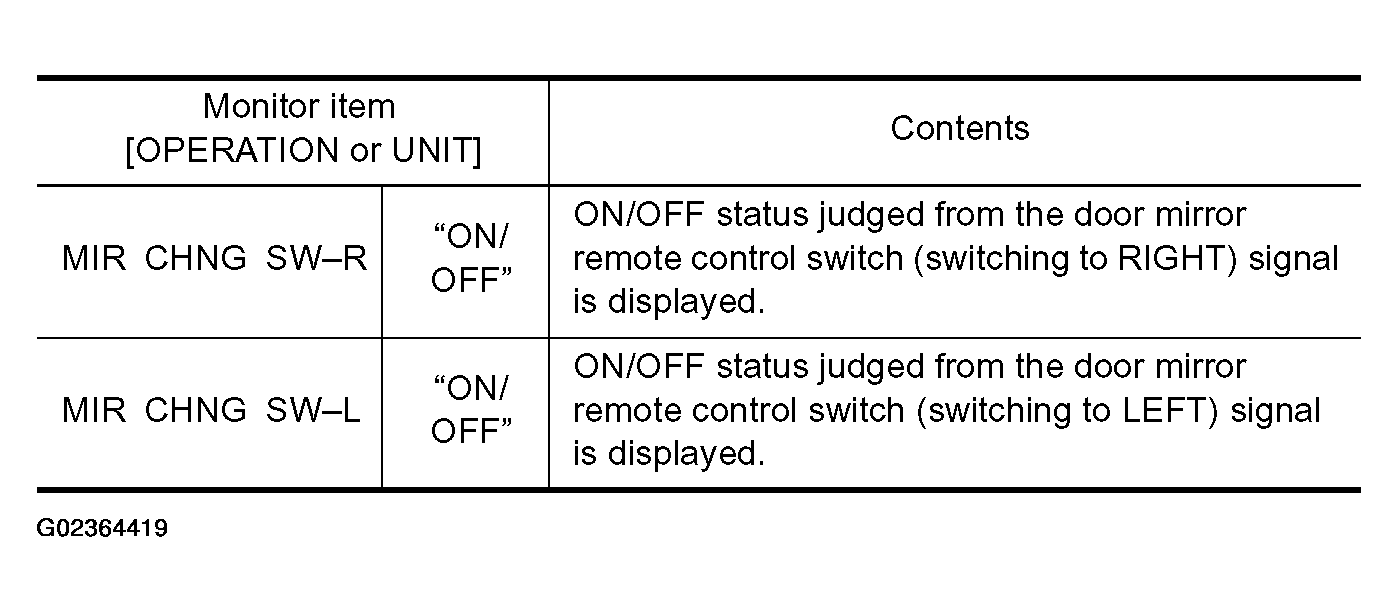

    Fig 1: Monitor Item Table
    G02364419Courtesy of NISSAN MOTOR CO., U.S.A.

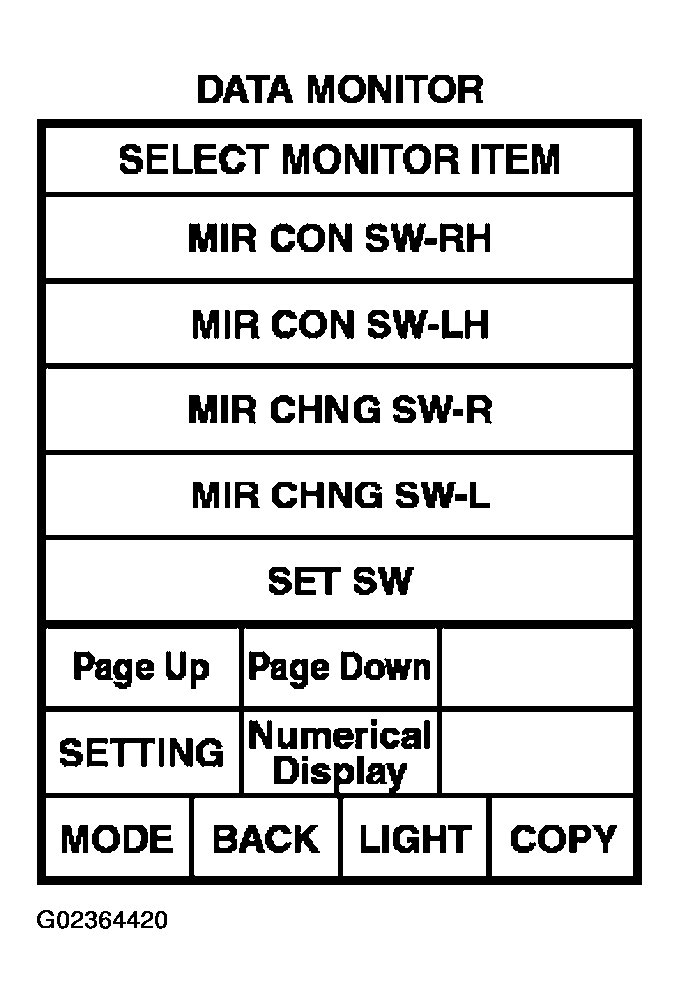

    Fig 2: Data Monitor Display
    G02364420Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ACC.
    2. Change over switch operate, check voltage between automatic drive positioner control unit connector and ground.

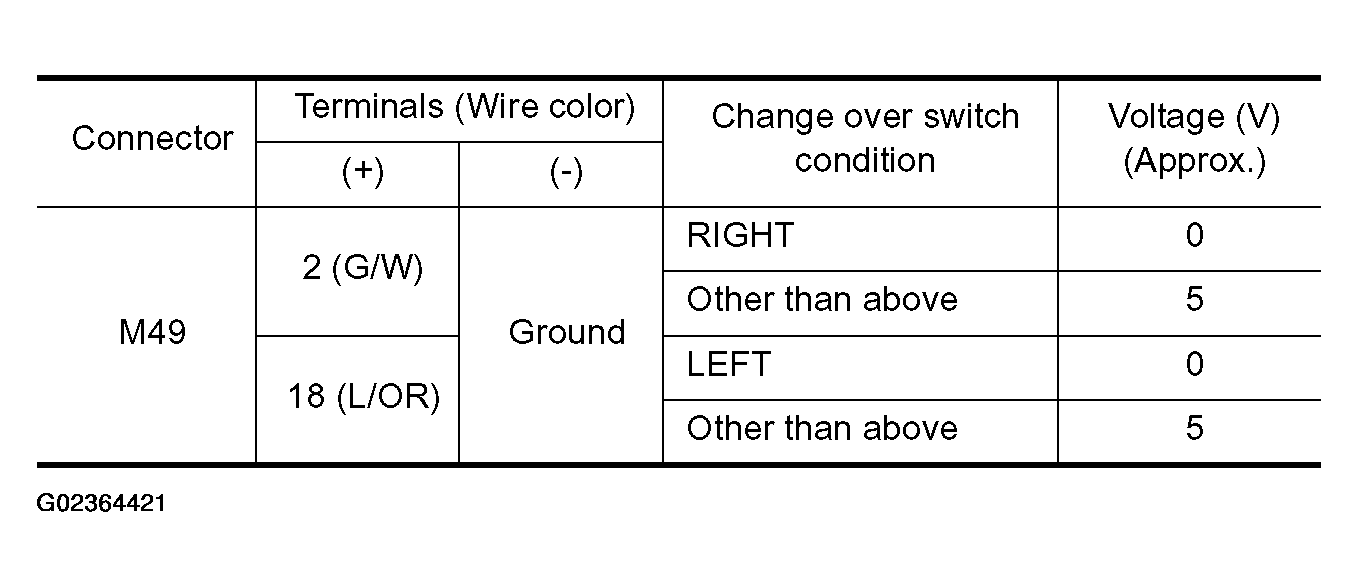

      Fig 3: Voltage Table
      G02364421Courtesy of NISSAN MOTOR CO., U.S.A.

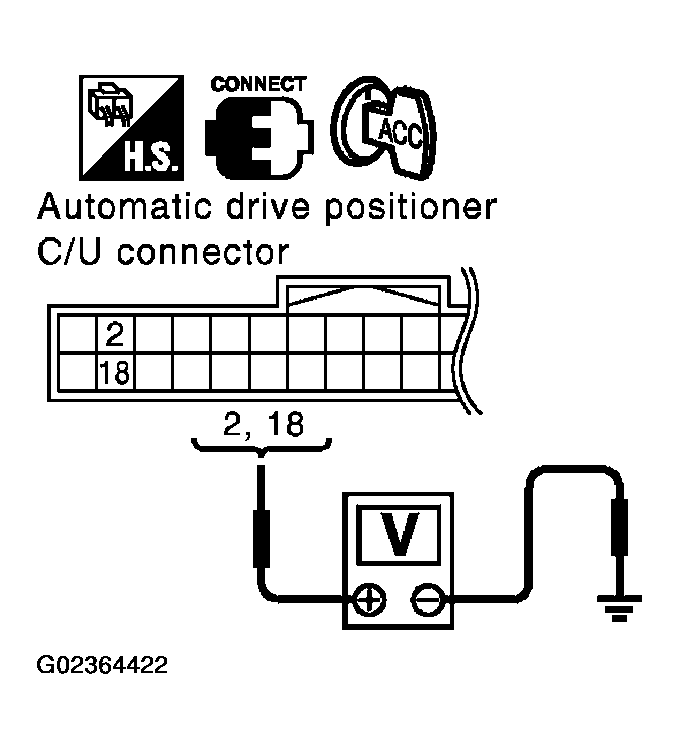

      Fig 4: Checking Voltage Between Terminal 2, 18 And Ground
      G02364422Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Door mirror remote control switch (changeover switch) circuit is OK.
    2. NG : GO TO 2.
  2. CHECK CHANGEOVER SWITCH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror remote control unit connector.
    3. Check continuity between automatic drive positioner control unit connector M49 terminal 2, 18 and door mirror remote control switch connector M18 terminal 2, 3.
      1. 2 (G/W) - 3 (G/W) : Continuity should exist.
      2. 18 (L/OR) - 2 (L/OR) : Continuity should exist.
    4. Check continuity between automatic drive positioner control unit connector M49 terminal 2,18 and ground.
      1. 2 (G/W) - Ground : Continuity should not exist.
      2. 18 (L/OR) - Ground : Continuity should not exist.

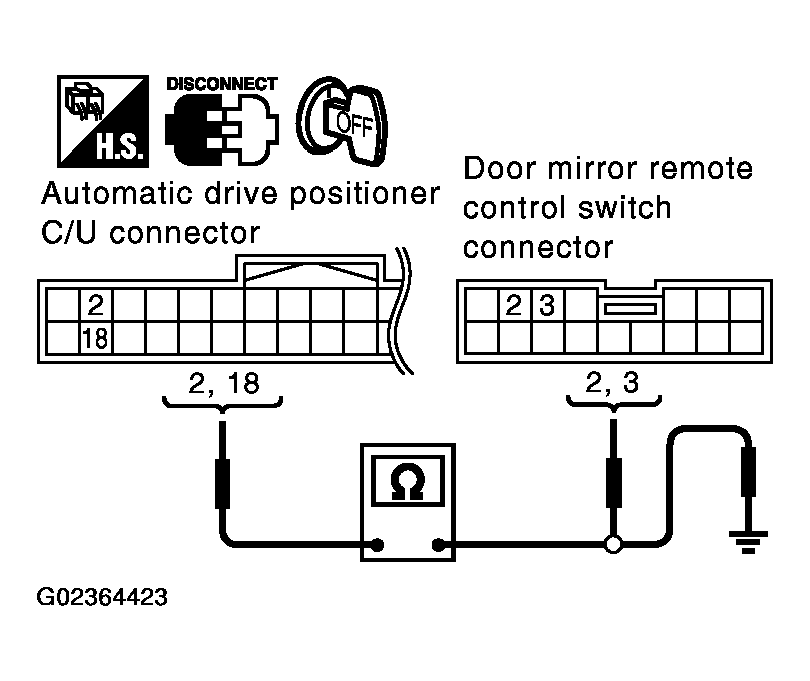

    Fig 5: Checking Continuity Between Terminal 2,18 And Ground
    G02364423Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 3.
    2. NG : Repair or replace harness between automatic drive positioner control unit and door remote control switch.
  3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT

    Check continuity between door mirror remote control switch connector M18 terminal 13 and ground.

    1. 13 (B) - Ground : Continuity should exist.

    OK or NG

    1. OK : GO TO 4.
    2. NG : Repair or replace harness.

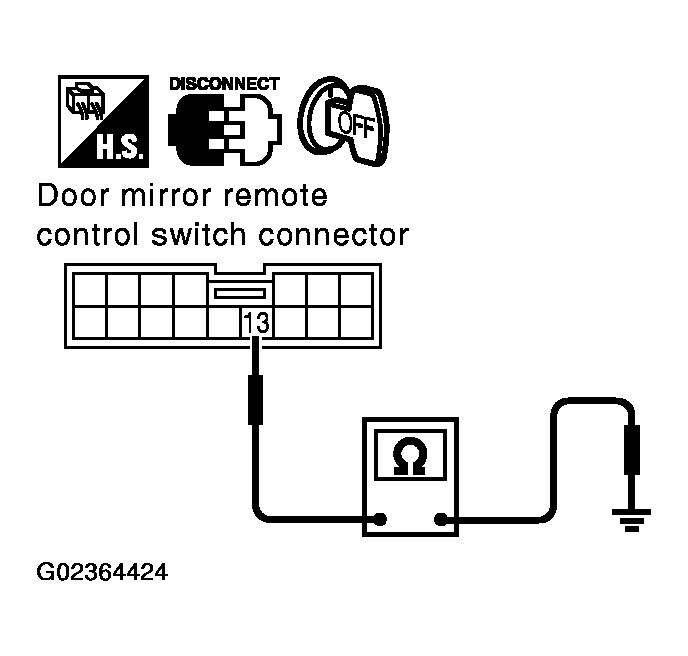

    Fig 6: Checking Continuity Between Terminal 13 And Ground
    G02364424Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CANGEOVER SWITCH)

    Change over switch operate, check continuity between door mirror remote control switch connector M18 terminal 5, 6 and 7.

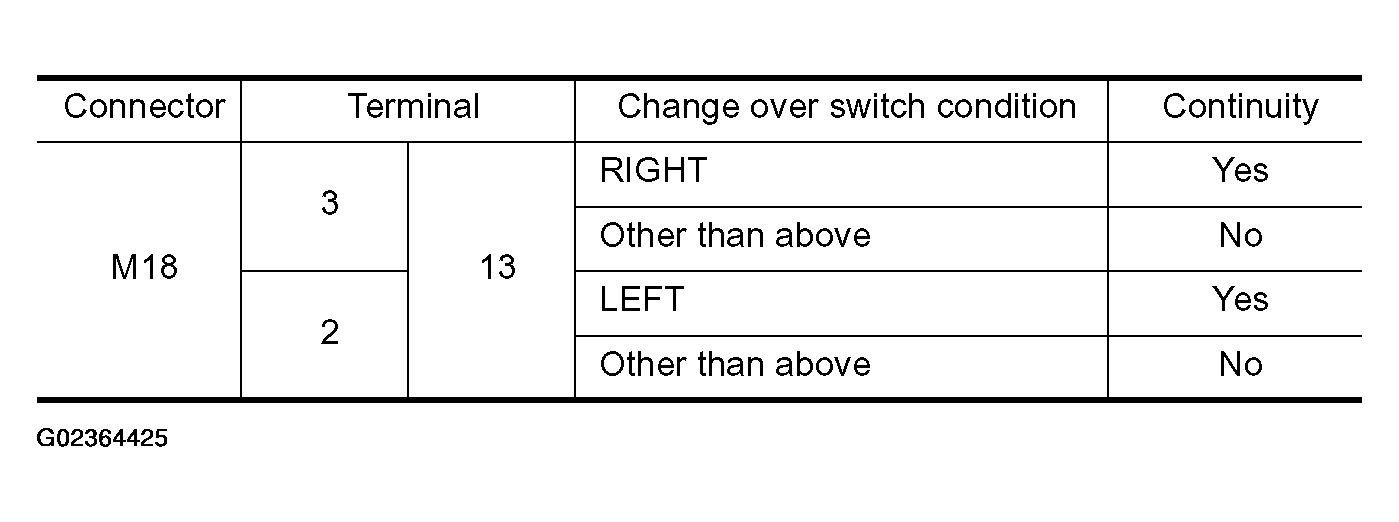

    Fig 7: Continuity Table
    G02364425Courtesy of NISSAN MOTOR CO., U.S.A.

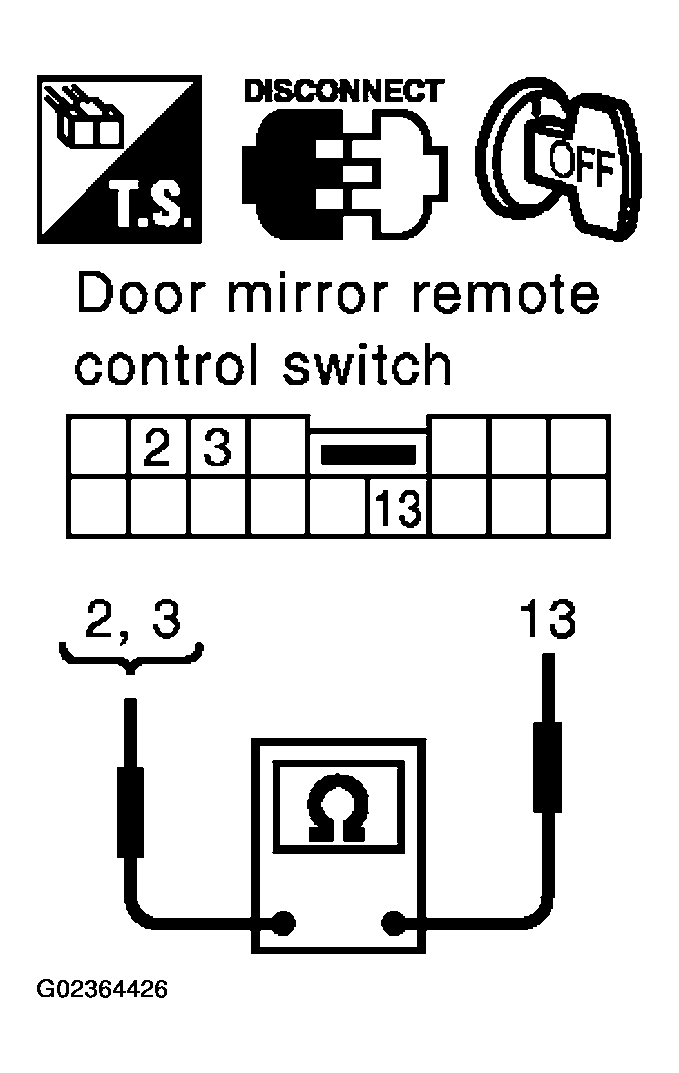

    Fig 8: Checking Continuity Between Terminal 5, 6 And 7
    G02364426Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Check the condition of the harness and the connector.
    2. NG : Replace door mirror remote control switch.
