Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

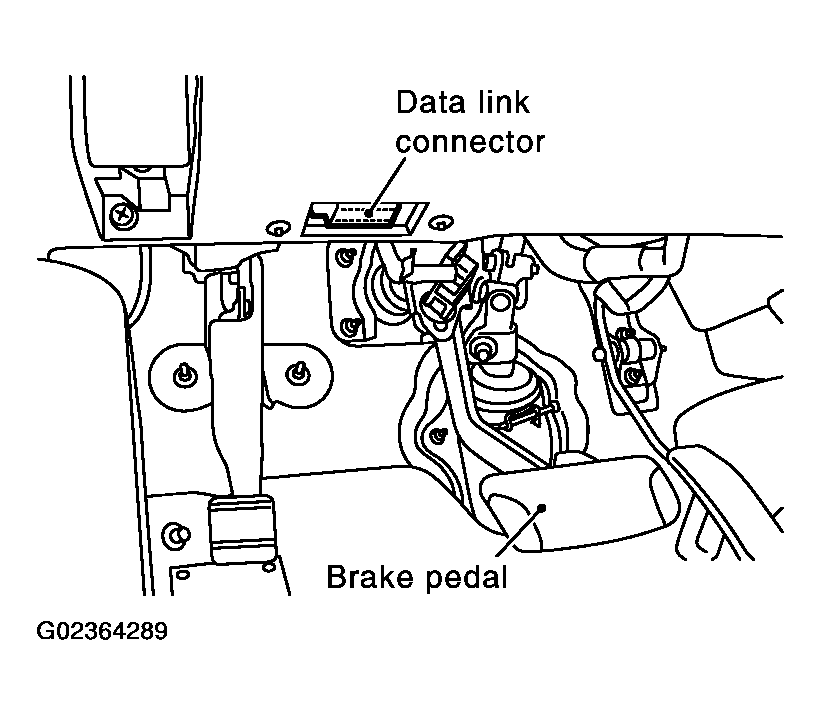

    Fig 1: Identifying Data Link Connector
    G02364289Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".

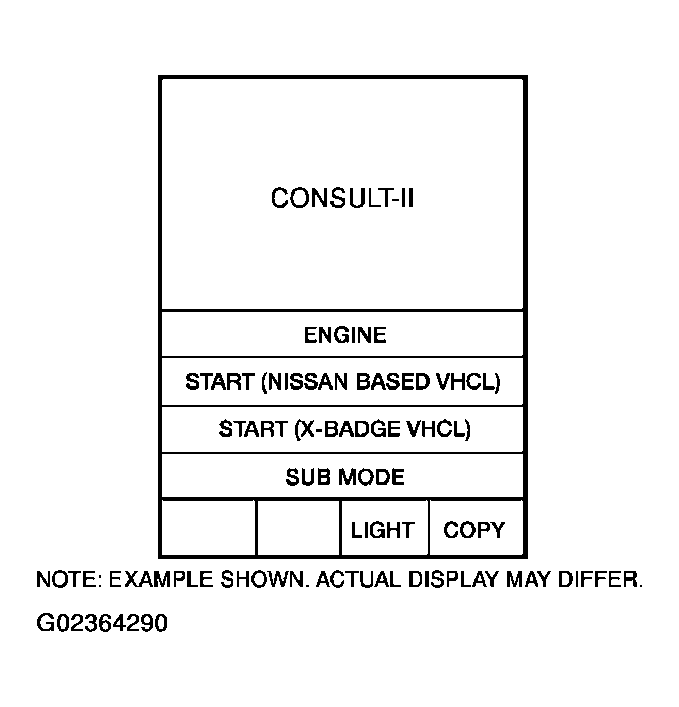

    Fig 2: CONSULT-II Diagnosis Function Display (1 Of 3)
    G02364290Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "AUTO DRIVE POS" and "BCM".

    If "AUTO DRIVE POS." is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

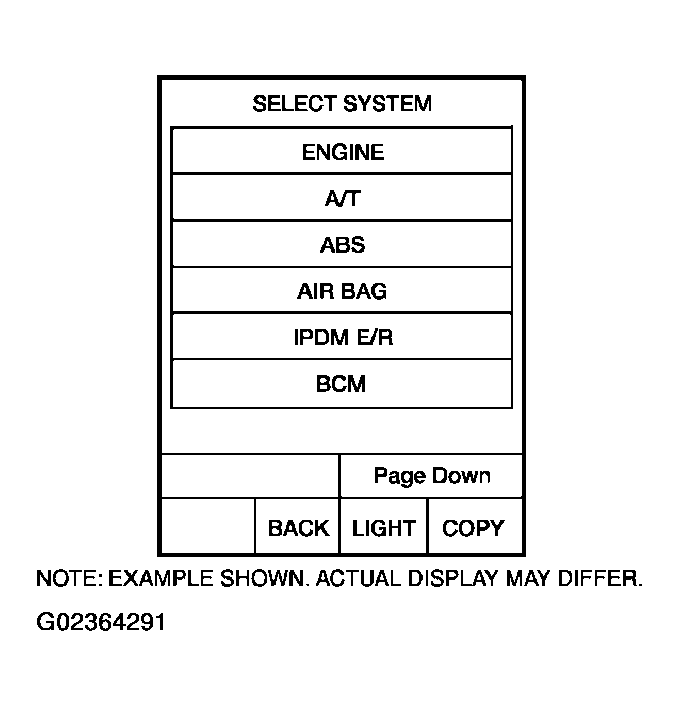

    Fig 3: CONSULT-II Diagnosis Function Display (2 Of 3)
    G02364291Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select diagnosis mode.

    "DATA MONITOR", "ACTIVE TEST", "SELF-DIAG RESULTS", "ECU PART NUMBER" and "WORK SUPPORT" are available.

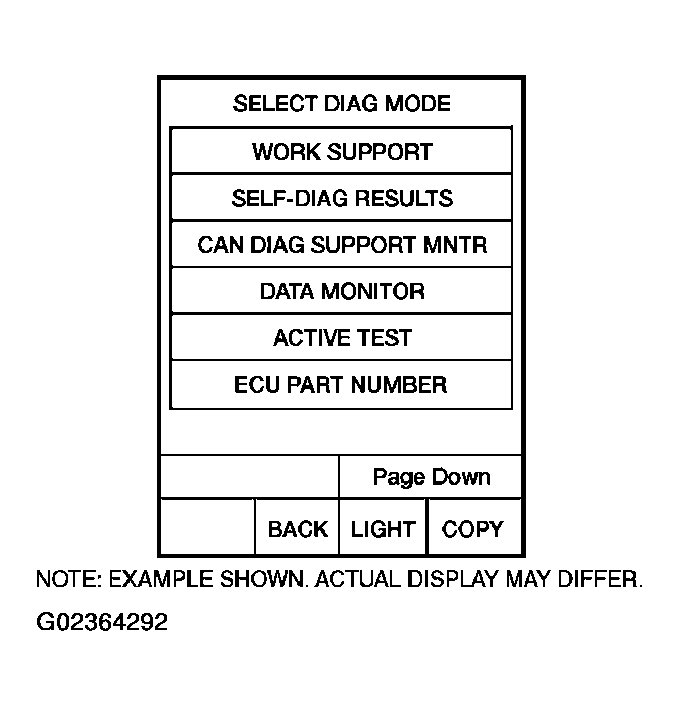

    Fig 4: CONSULT-II Diagnosis Function Display (3 Of 3)
    G02364292Courtesy of NISSAN MOTOR CO., U.S.A.
