Fuse Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check the following fuses and fusible link in the fuse block (J/B) and fuse and fusible link box.

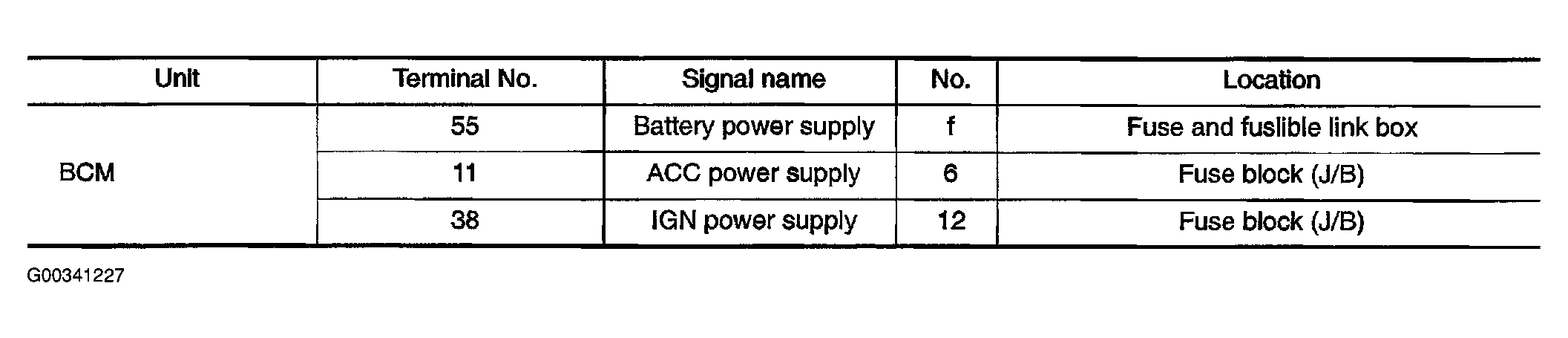

Fig 1: BCM Fuse And Fusible Link Condition Descriptions

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> GO TO 2
NG >> Replace the fuse or fusible link.
