Front Power Window Motor (Passenger Side) Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FRONT POWER WINDOW SWITCH (PASSENGER SIDE) OUTPUT SIGNAL

Turn igniting switch ON.

Check voltage between front power window switch (passenger side) connector D35 terminals 8, 9 and ground.

CONNECTOR, TERMINALS CONDITION AND VOLTAGE SPECIFICATION

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D35	8 (L)	Ground	Closing	Battery voltage
	8 (L)		Opening	0
	9 (G)		Closing	0
	9 (G)		Opening	Battery voltage

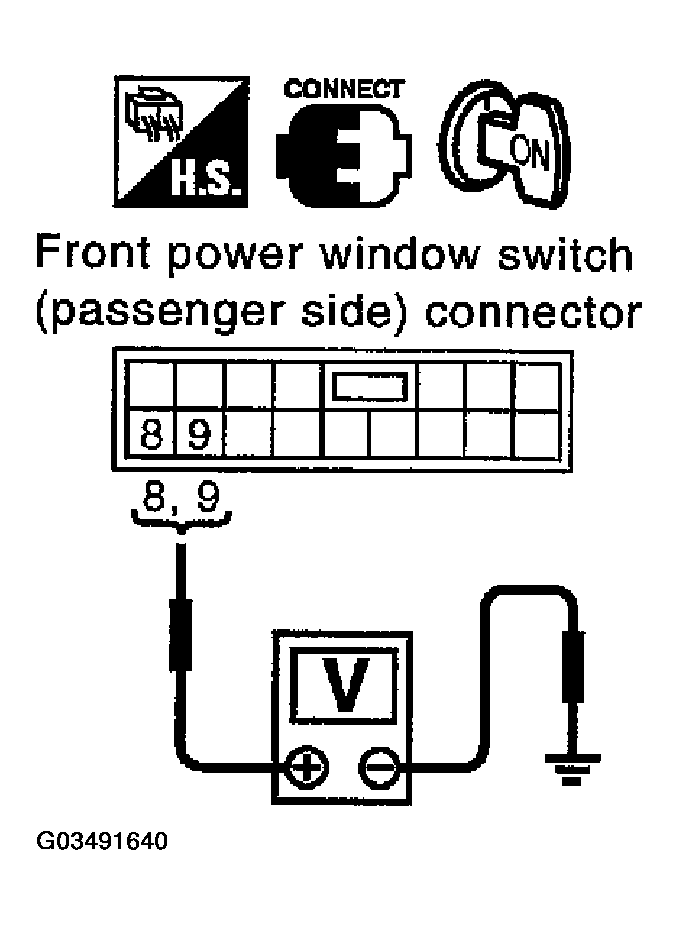

Fig 1: Checking Voltage Between Front Power Window Switch Connector D35 Terminals 8, 9 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.
NG: Replace front power window switch (passenger side).

CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect front power window switch (passenger side) and front power window motor (passenger side) connector.
3. Check continuity between front power window switch (passenger side) connector D35 terminals 8, 9 and front power window motor (passenger side) connector D36 terminals 1, 2.
  8 (L) - 2 (L) Continuity should exist.

  9 (G) - 1 (G) Continuity should exist.

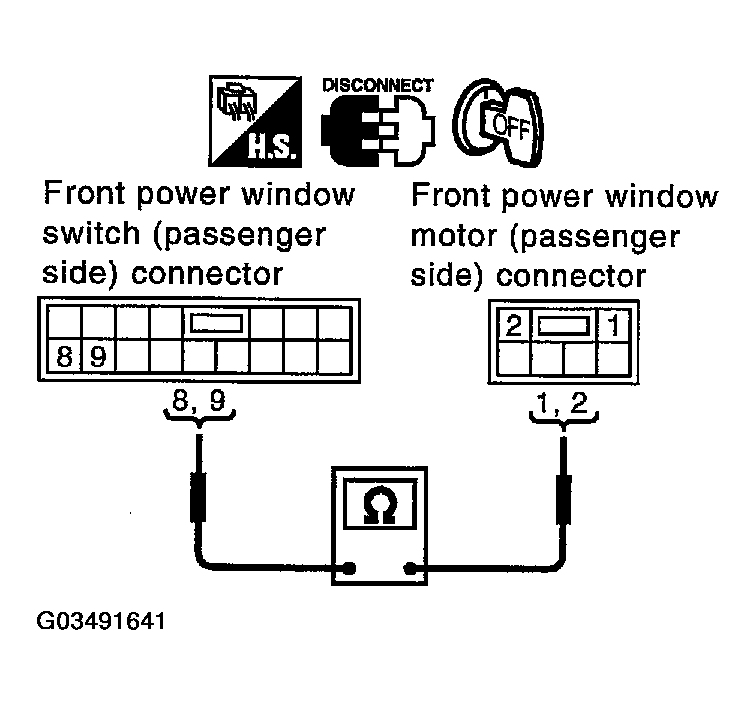

  Fig 2: Checking Continuity Between Front Power Window Switch (Passenger Side) Connector D35 Terminals 8, 9 And Front Power Window Motor (Passenger Side) Connector D36 Terminals 1, 2
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace front power window motor (passenger side).
2. NG: Repair or replace harness between front power window switch (passenger side) and front power window motor (passenger side).
