Home >> Nissan-Datsun >> 2003 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Front Axle >> Service Data And Specifications (SDS) >> Drive Shaft

Drive Shaft

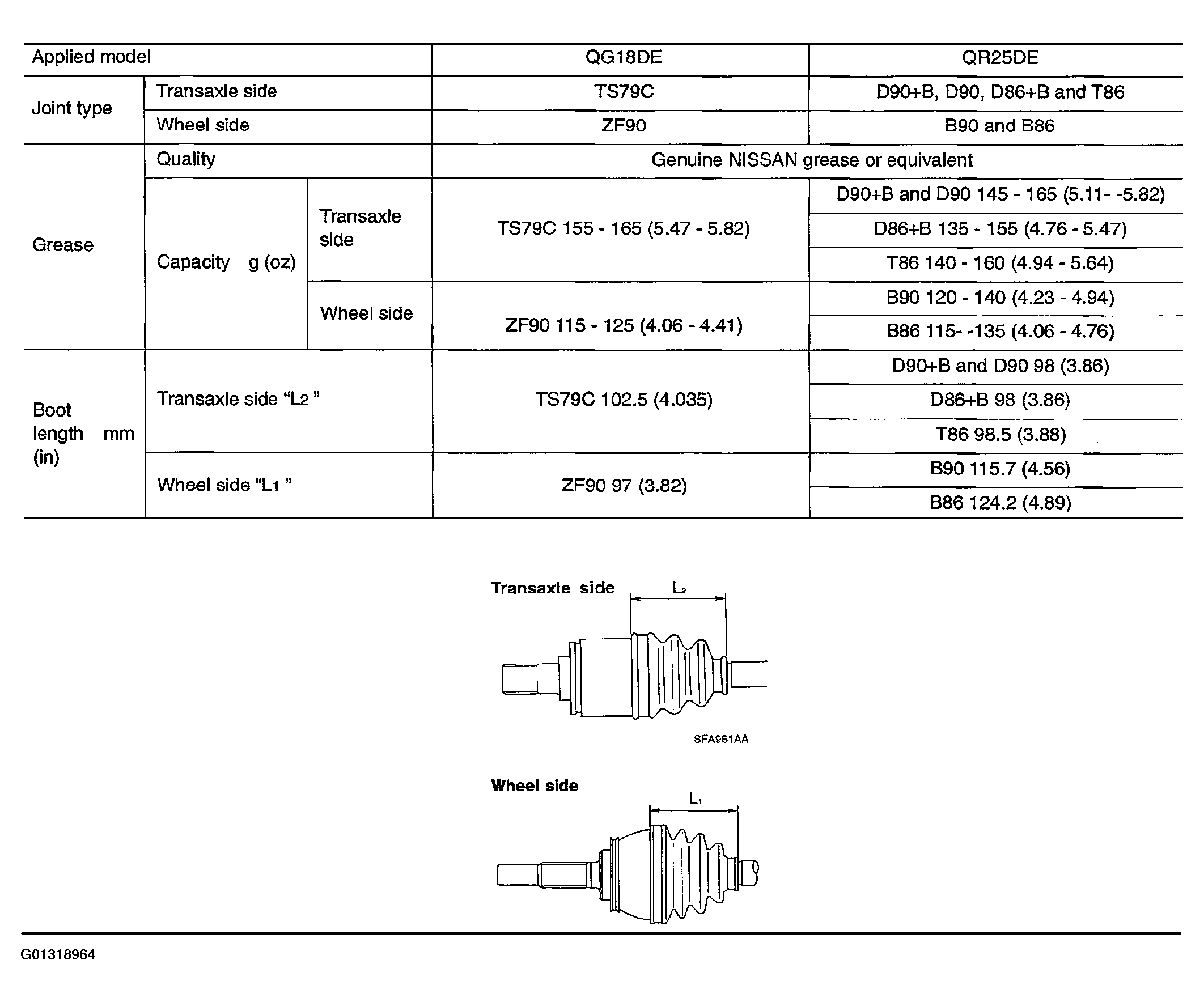

Fig 1: Drive Shaft Service Specifications

G01318964

Courtesy of NISSAN MOTOR CO., U.S.A.
