Inspection Procedure

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Perform "DATA MONITOR (SPEC)" mode in maximum scale display.
  1. Perform BASIC INSPECTION .
  2. Confirm that the testing conditions indicated above are met.
  3. Select "B/FUEL SCHDL", "A/F ALPHA-B1", "A/F ALPHA-B2" and "MAS A/F SE-B1" in "DATA MONITOR (SPEC)" mode with CONSULT-II.
  4. Make sure that monitor items are within the SP value.
  5. If NG, go to DIAGNOSTIC PROCEDURE .

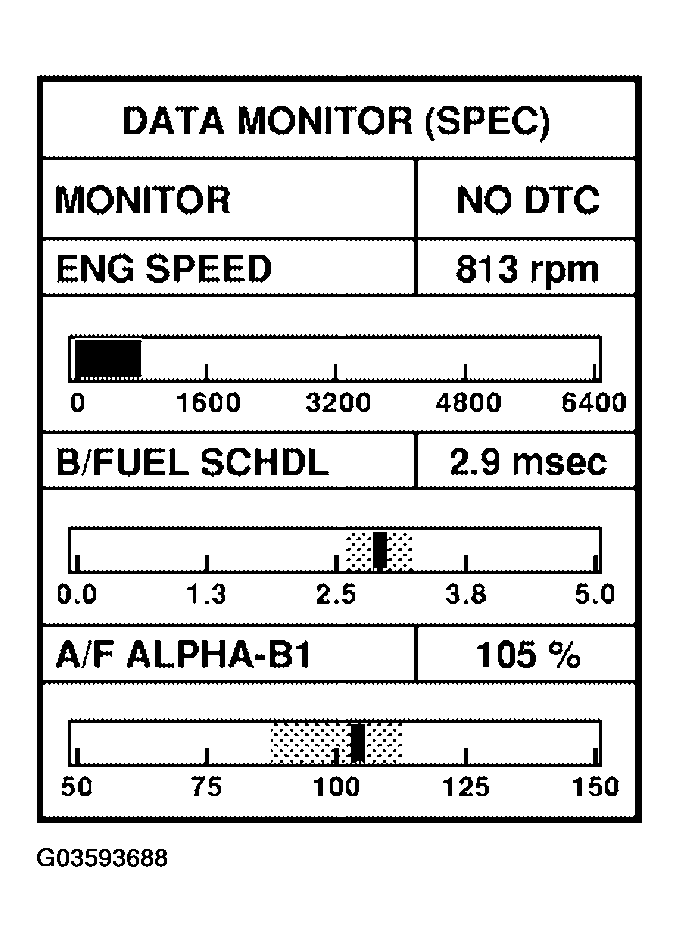

    Fig 1: CONSULT-II Diagnosis Function Display Data Monitor (SPEC) Screen
    G03593688Courtesy of NISSAN MOTOR CO., U.S.A.
