DTC P1122: Electric Throttle Control Performance Problem

NOTE: If DTC P1121 or DTC P1126 is also set, perform diagnosis for DTC P1121 or DTC P1126 first. See DTC P1121: ELECTRIC THROTTLE CONTROL ACTUATOR  and/or DTC P1124: THROTTLE CONTROL MOTOR RELAY CIRCUIT SHORTED OR DTC P1126: THROTTLE CONTROL MOTOR RELAY CIRCUIT OPEN  .

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 7 .

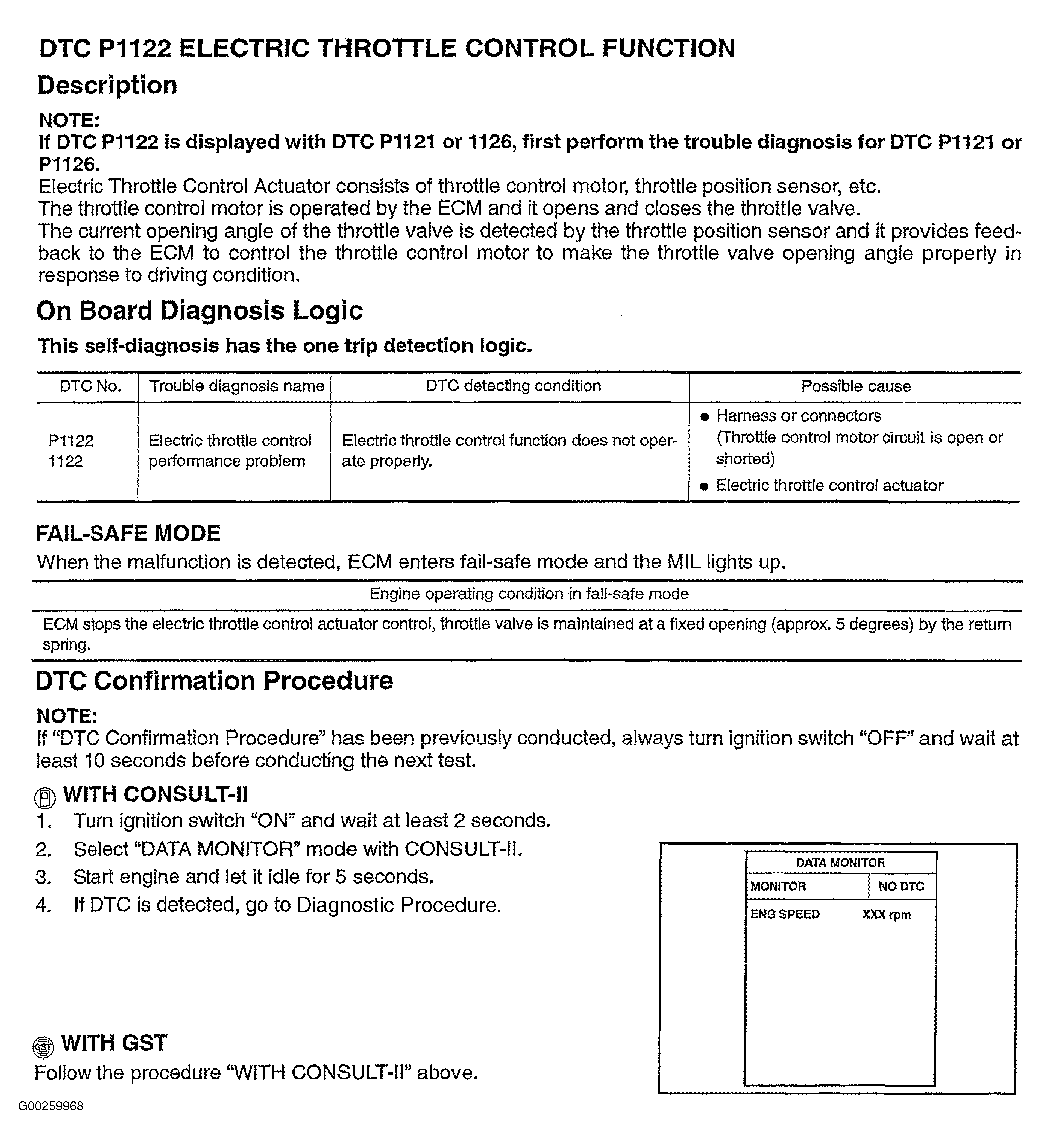

Fig 1: DTC P1122 (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

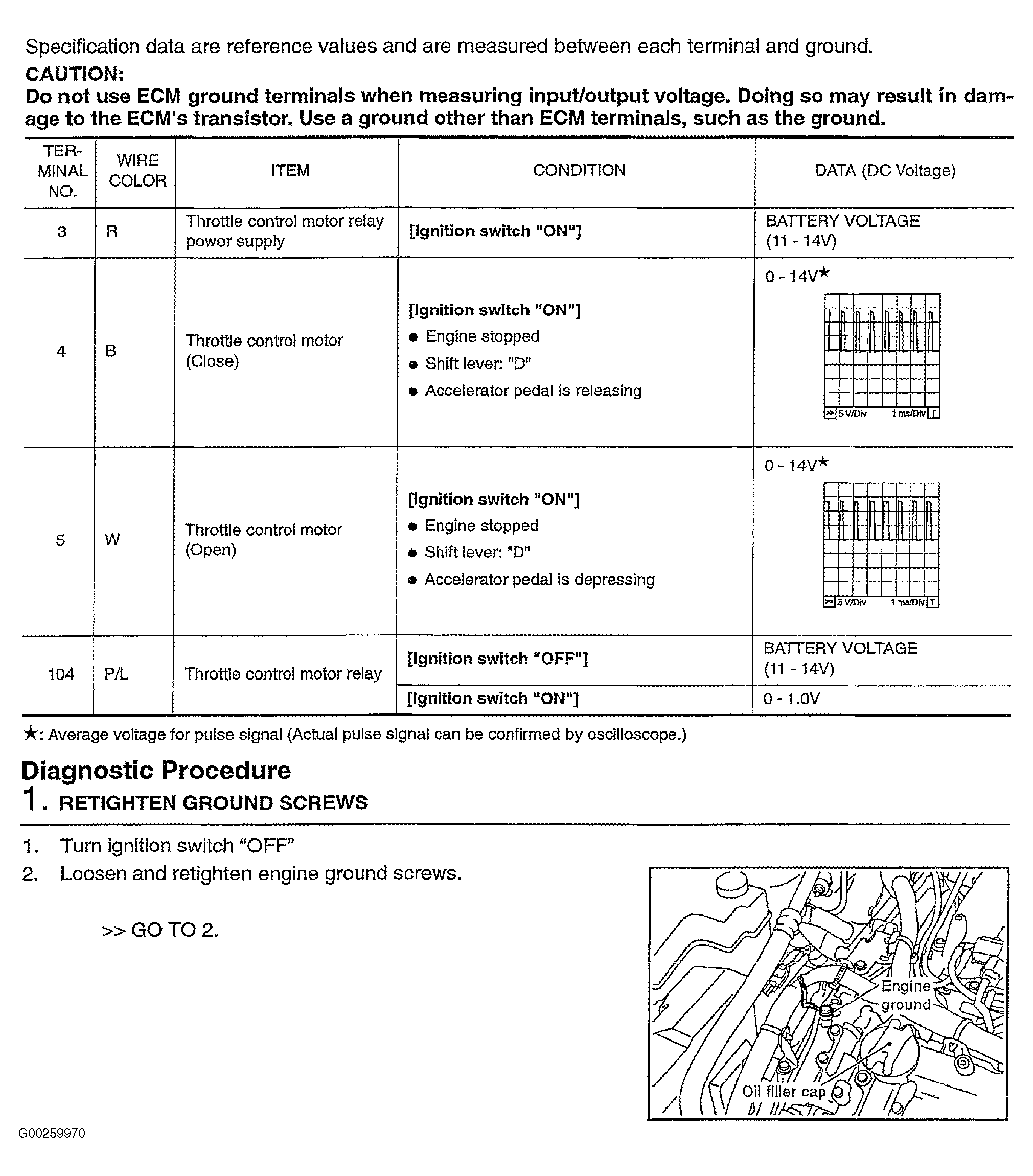

Fig 2: DTC P1122 (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

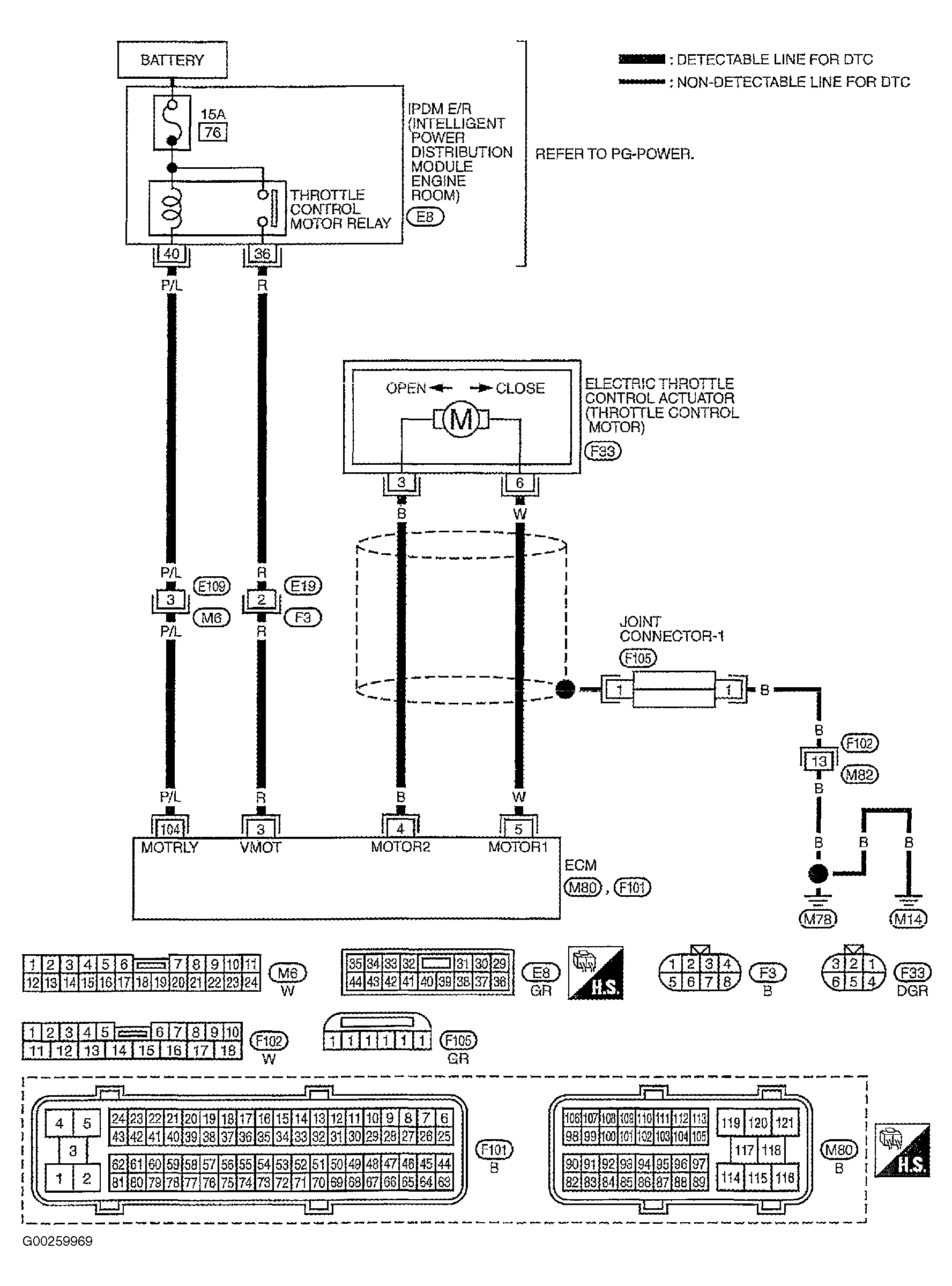

Fig 3: DTC P1122 (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

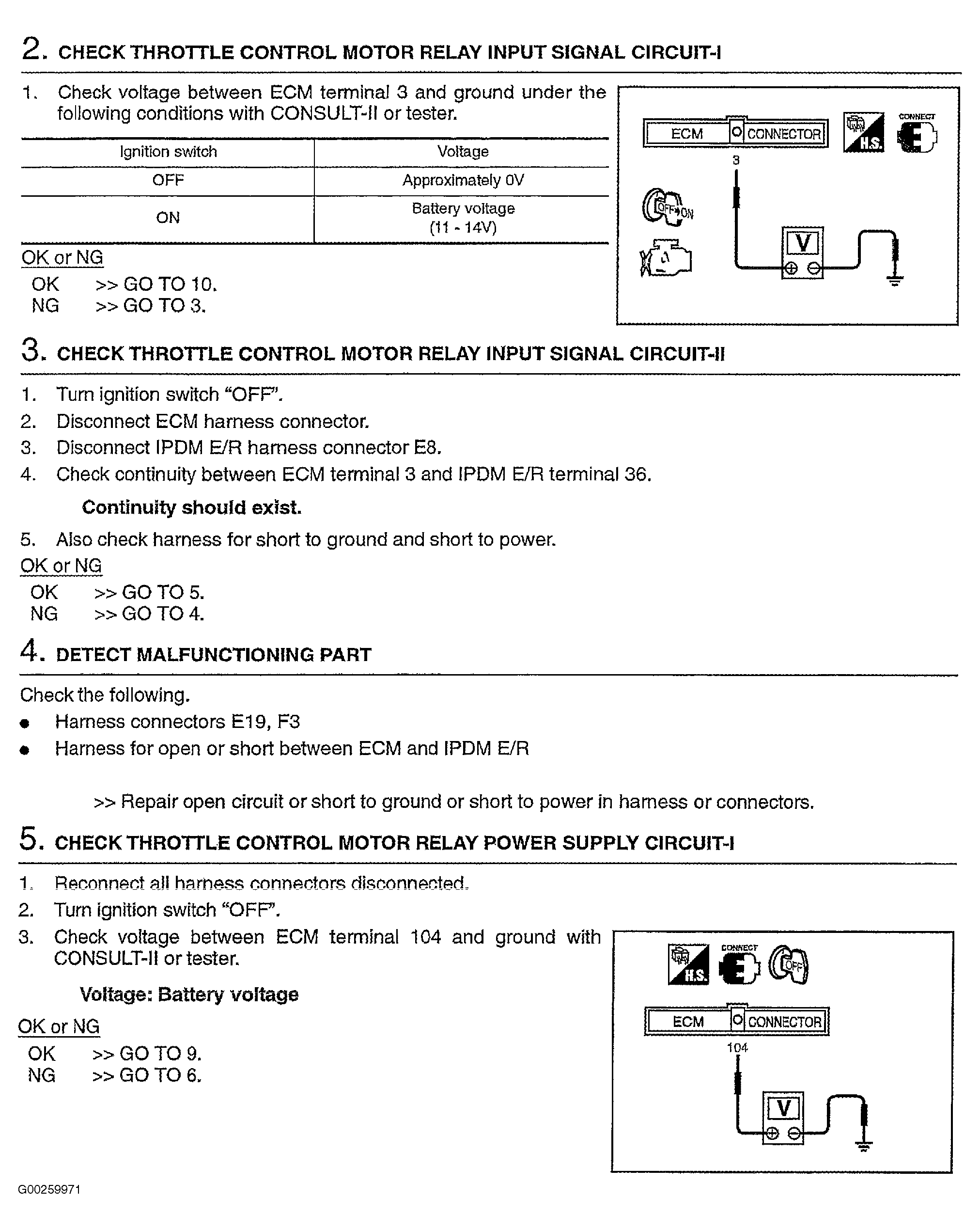

Fig 4: DTC P1122 (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

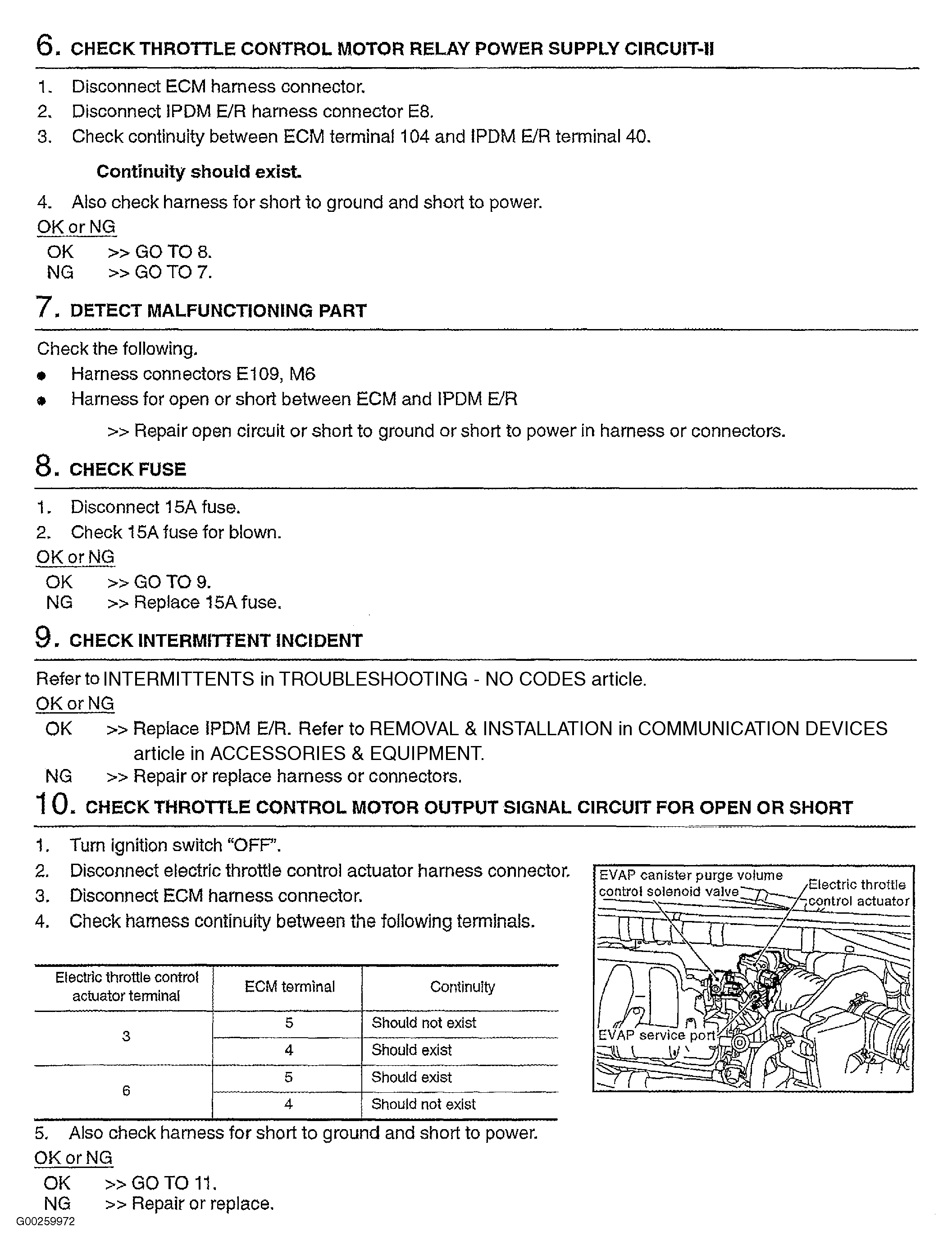

Fig 5: DTC P1122 (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

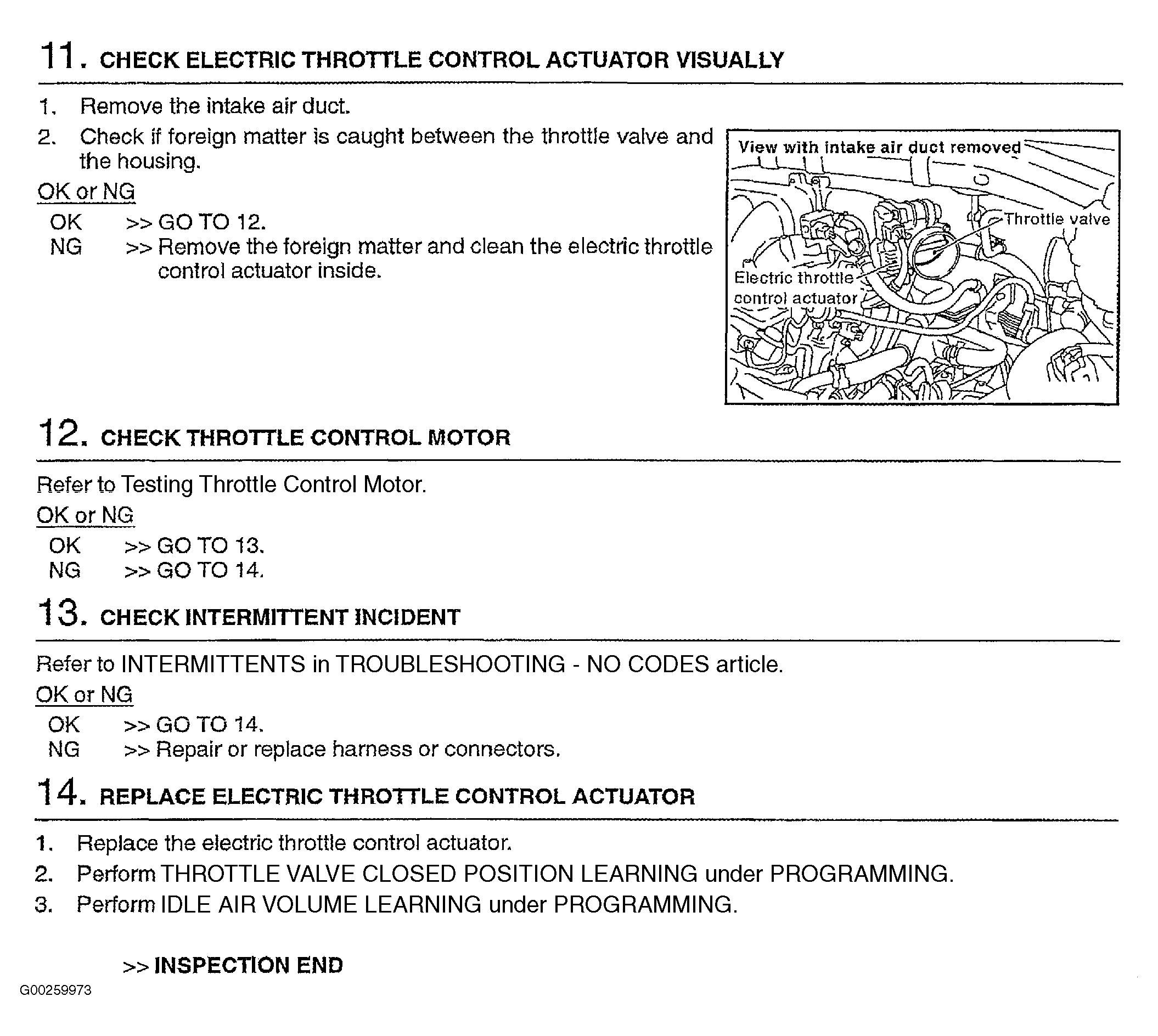

Fig 6: DTC P1122 (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

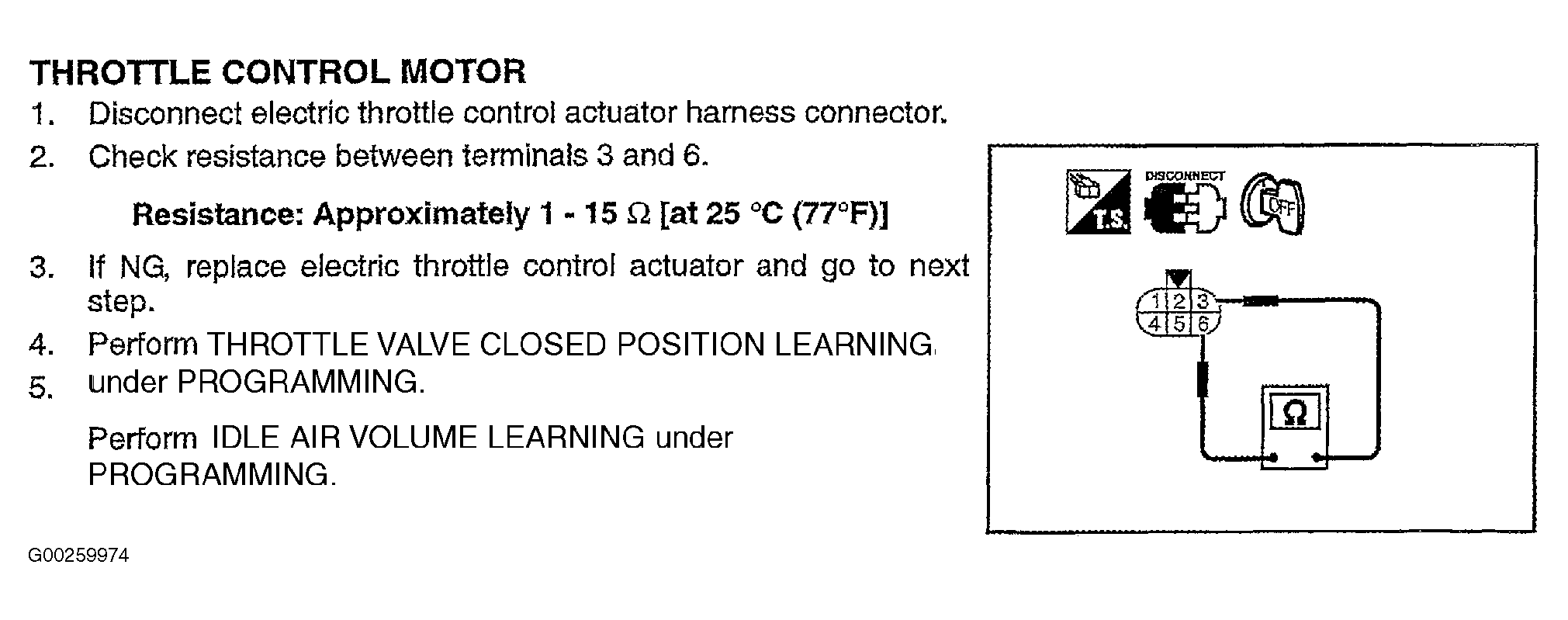

Fig 7: Testing Throttle Control Motor

Courtesy of NISSAN MOTOR CO., U.S.A.
