Home >> Nissan-Datsun >> 2003 >> Maxima GLE >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Service Data And Specifications (SDS) >> Revolution Sensor (For Speed Sensor)

Revolution Sensor (For Speed Sensor)

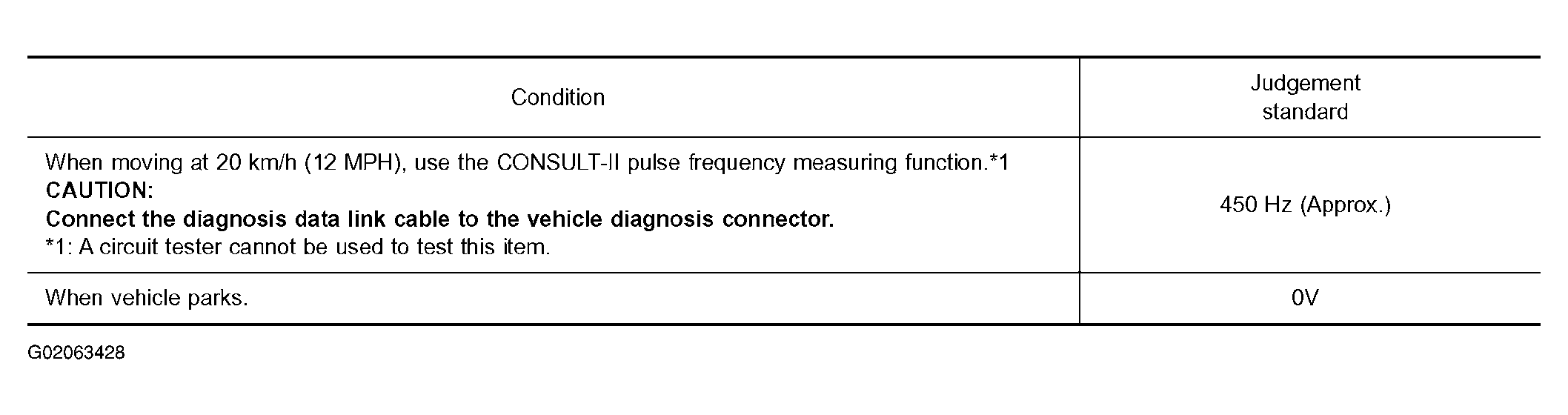

Fig 1: Revolution Sensor (For Speed Sensor) Specification Table

G02063428

Courtesy of NISSAN MOTOR CO., U.S.A.
