TCM Terminals And Reference Value

Remarks: Specification data are reference values.

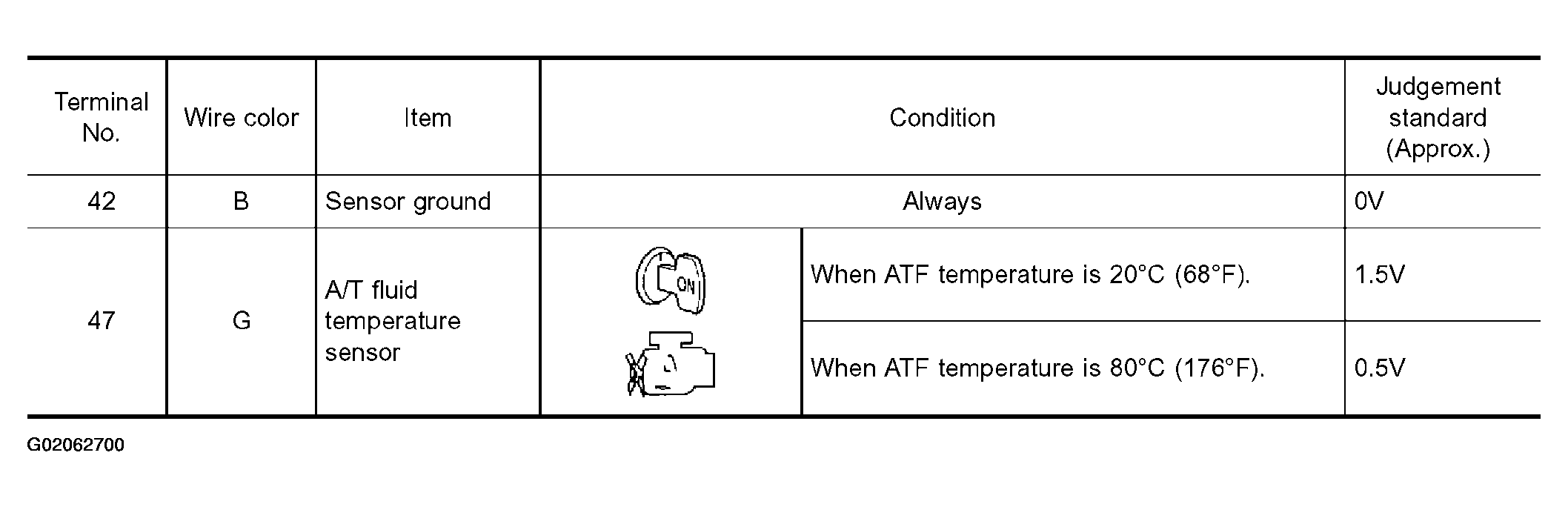

Fig 1: TCM Terminals And Reference Value Table

G02062700

Courtesy of NISSAN MOTOR CO., U.S.A.
