ABS Wheel Sensor

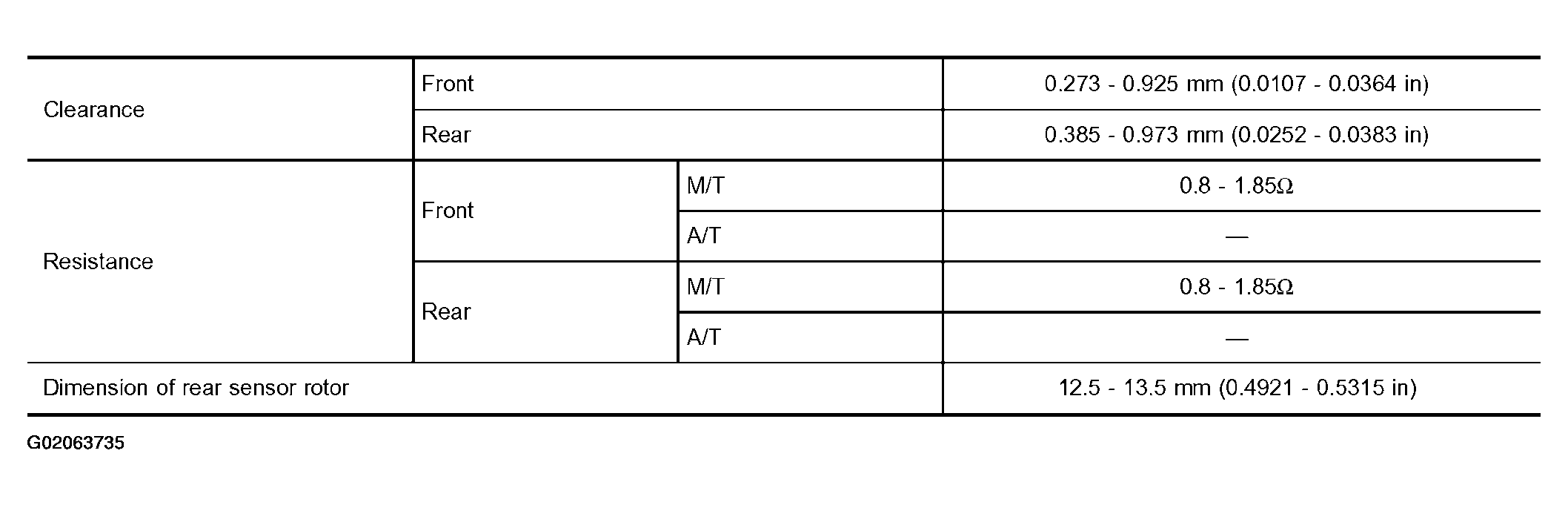

Fig 1: ABS Wheel Sensor Service Specification

G02063735

Courtesy of NISSAN MOTOR CO., U.S.A.
