Schematic (For M/T models)

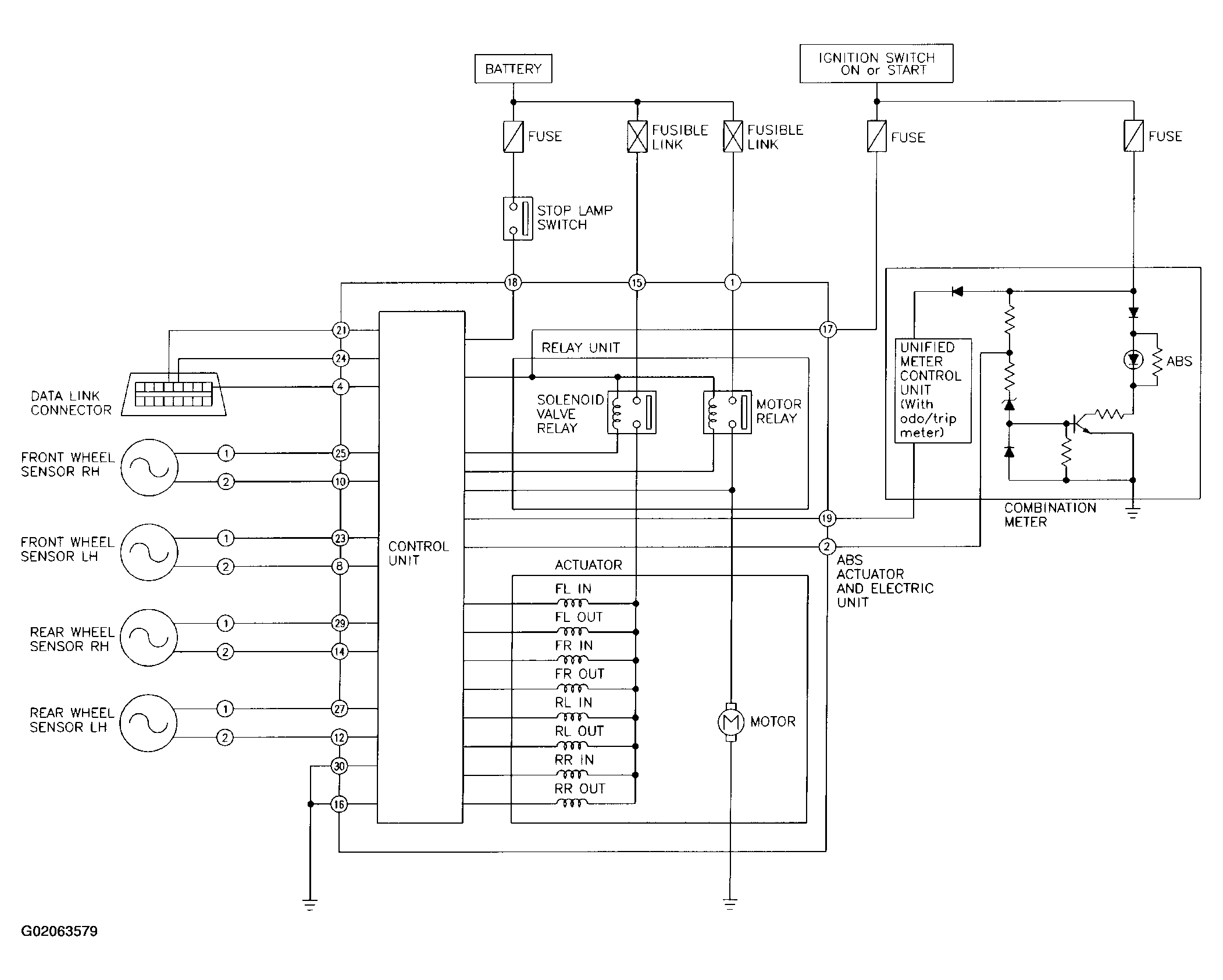

Fig 1: ABS Schematic (For M/T Models)

G02063579

Courtesy of NISSAN MOTOR CO., U.S.A.
