Solenoid Valve Operation Chart

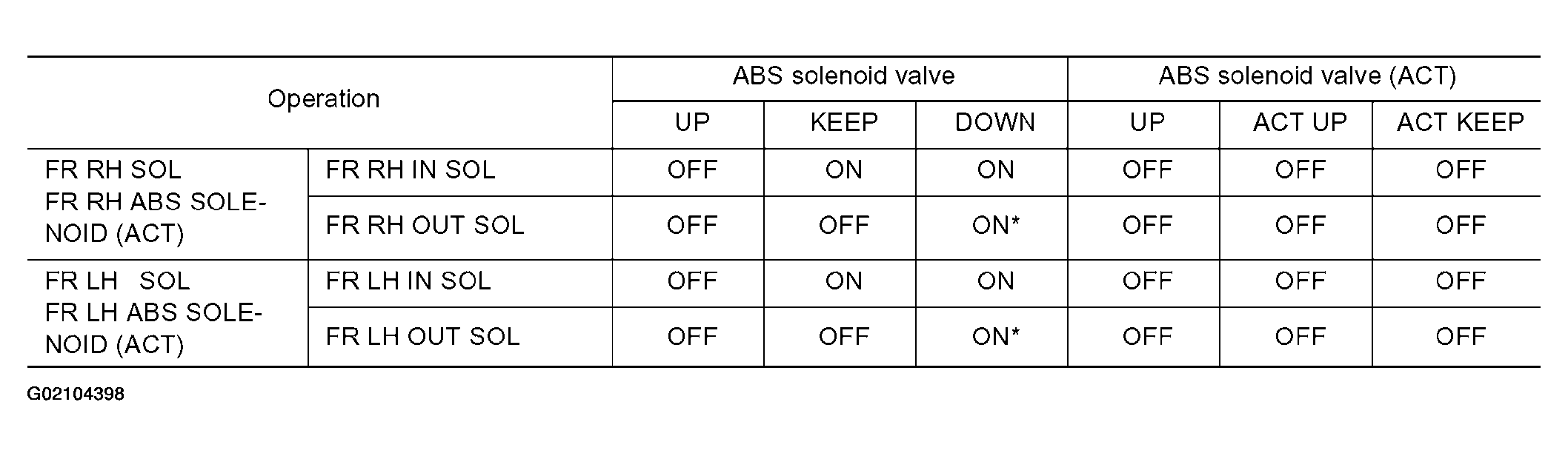

Fig 1: Solenoid Valve Operation Chart (1 Of 2)
G02104398Courtesy of NISSAN MOTOR CO., U.S.A.

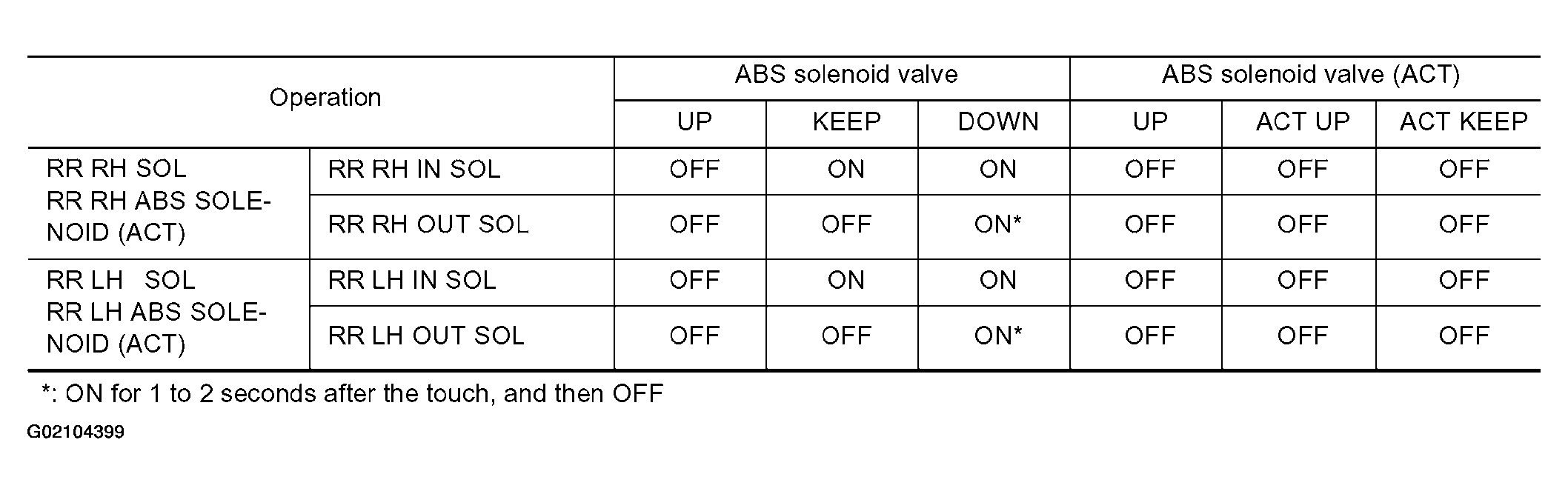

Fig 2: Solenoid Valve Operation Chart (2 Of 2)
G02104399Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
  • "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
  • After "TEST IS STOPPED" is displayed, to perform test again, repeat Active Test Step 6.
