Nissan-Datsun
>>
2003
>>
Frontier Base, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Control System
>>
Smart Entrance Control Unit
>>
Circuit Diagram
Circuit Diagram

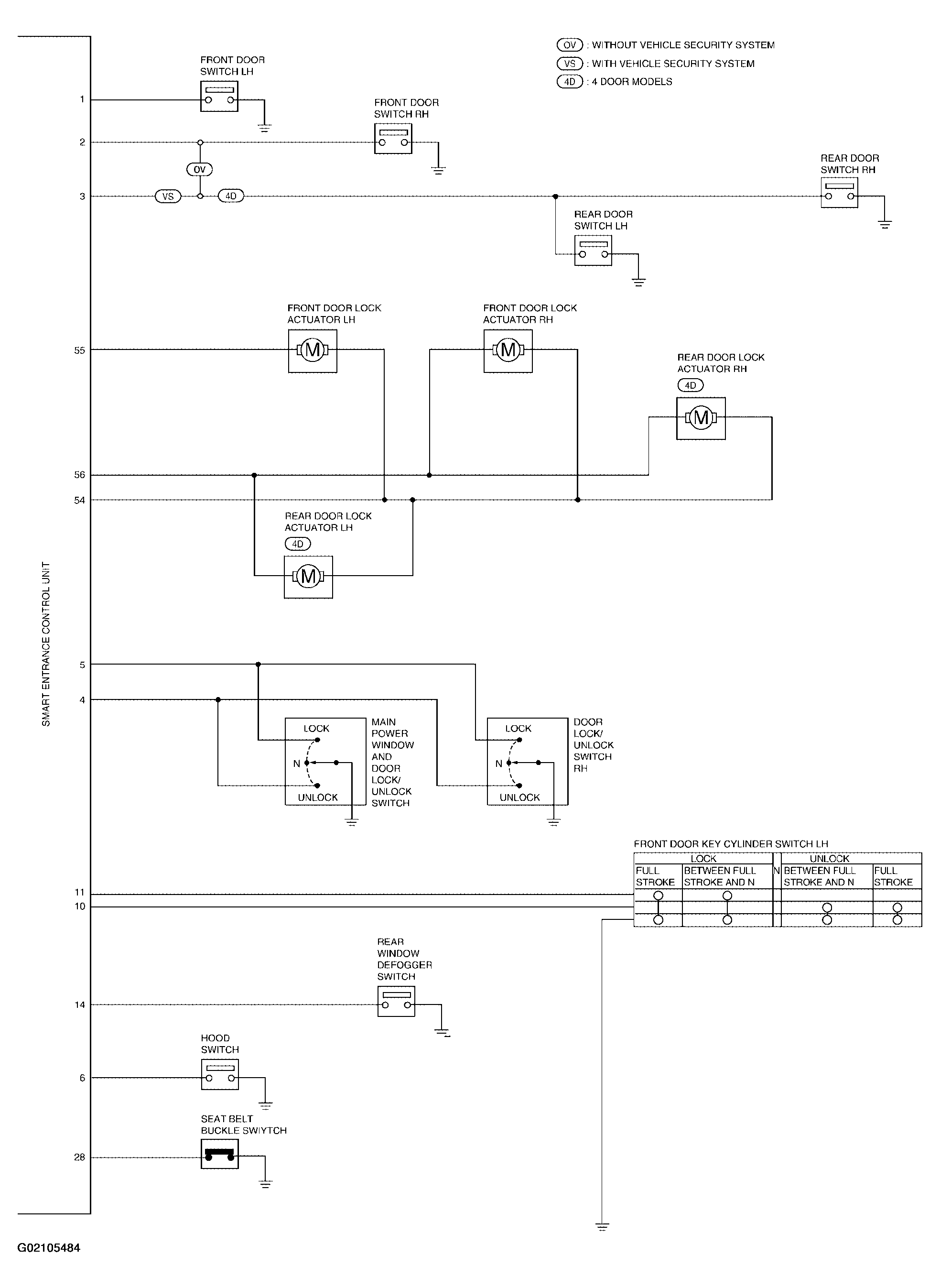

Fig 1: Smart Entrance Control Unit Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

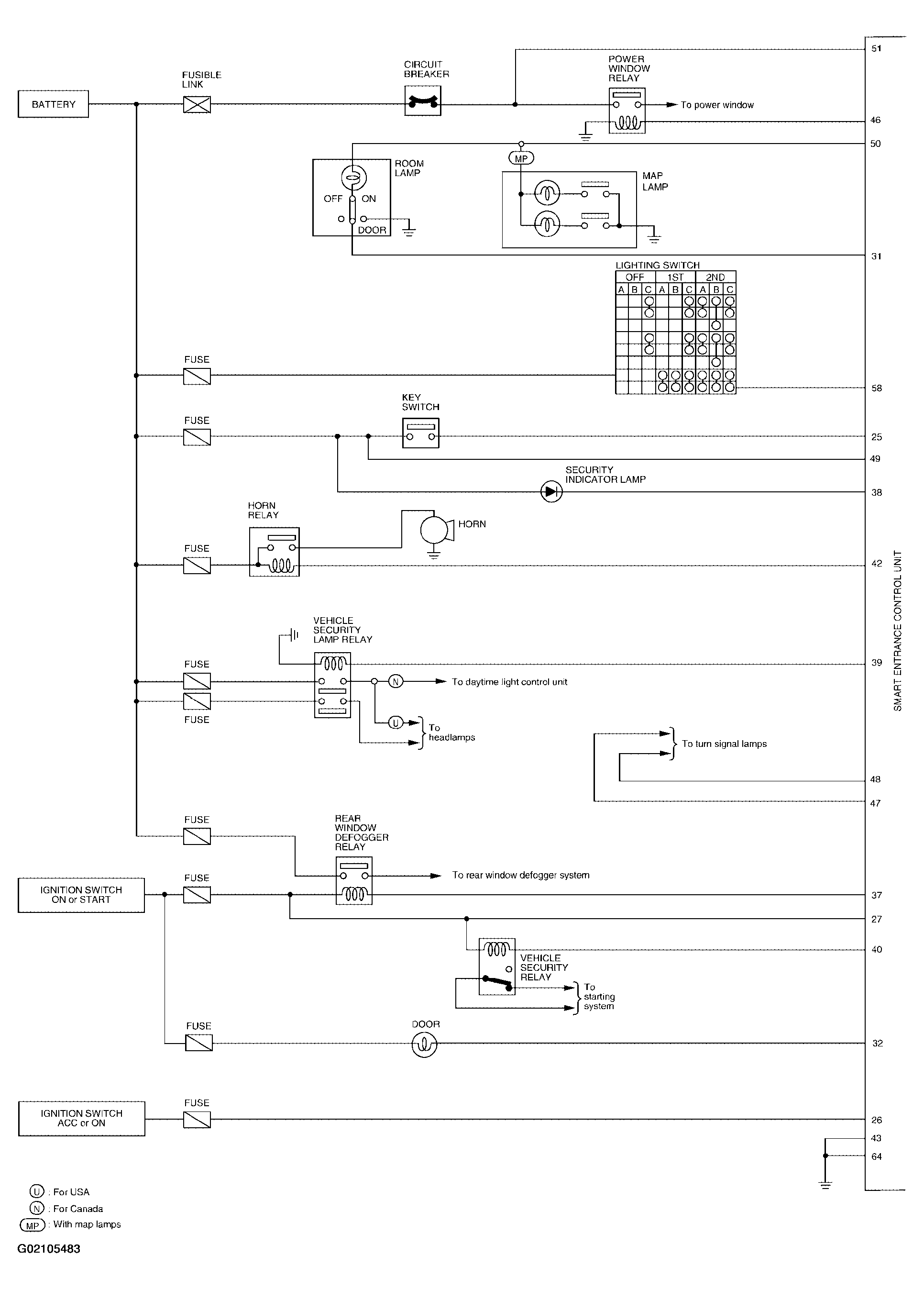

Fig 2: Smart Entrance Control Unit Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
