Diagnostic Procedure

NOTE: For component inspection, see COMPONENT INSPECTION (2.5L)  or COMPONENT INSPECTION (3.5L)  and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1 - Fig 3 .

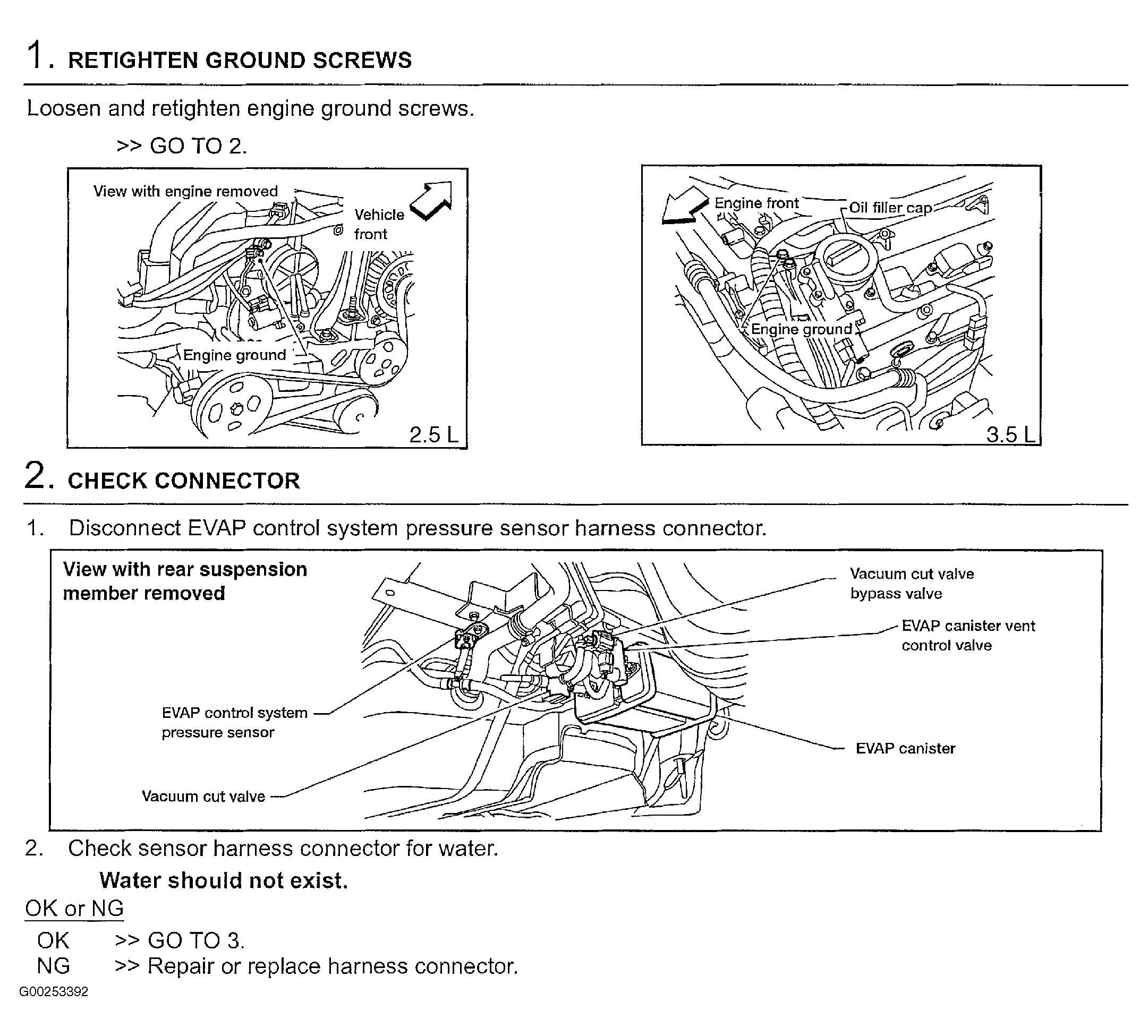

Fig 1: Identifying DTC Diagnostic Procedure For DTC P0452: EVAP Control System Pressure Sensor (Steps 1-2 Of 10)
G00253392Courtesy of NISSAN MOTOR CO., U.S.A.

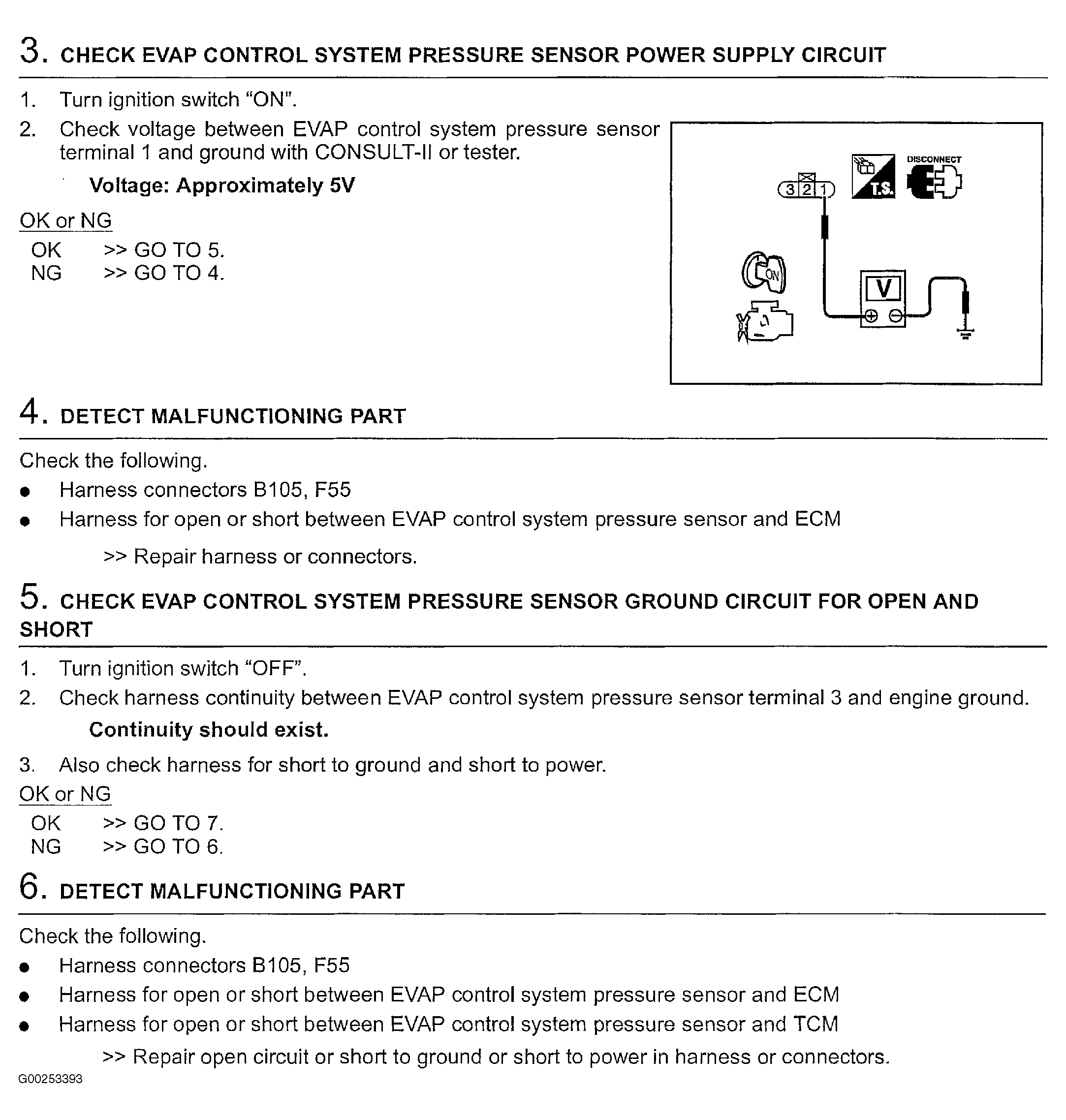

Fig 2: Identifying DTC Diagnostic Procedure For DTC P0452: EVAP Control System Pressure Sensor (Steps 3-6 Of 10)
G00253393Courtesy of NISSAN MOTOR CO., U.S.A.

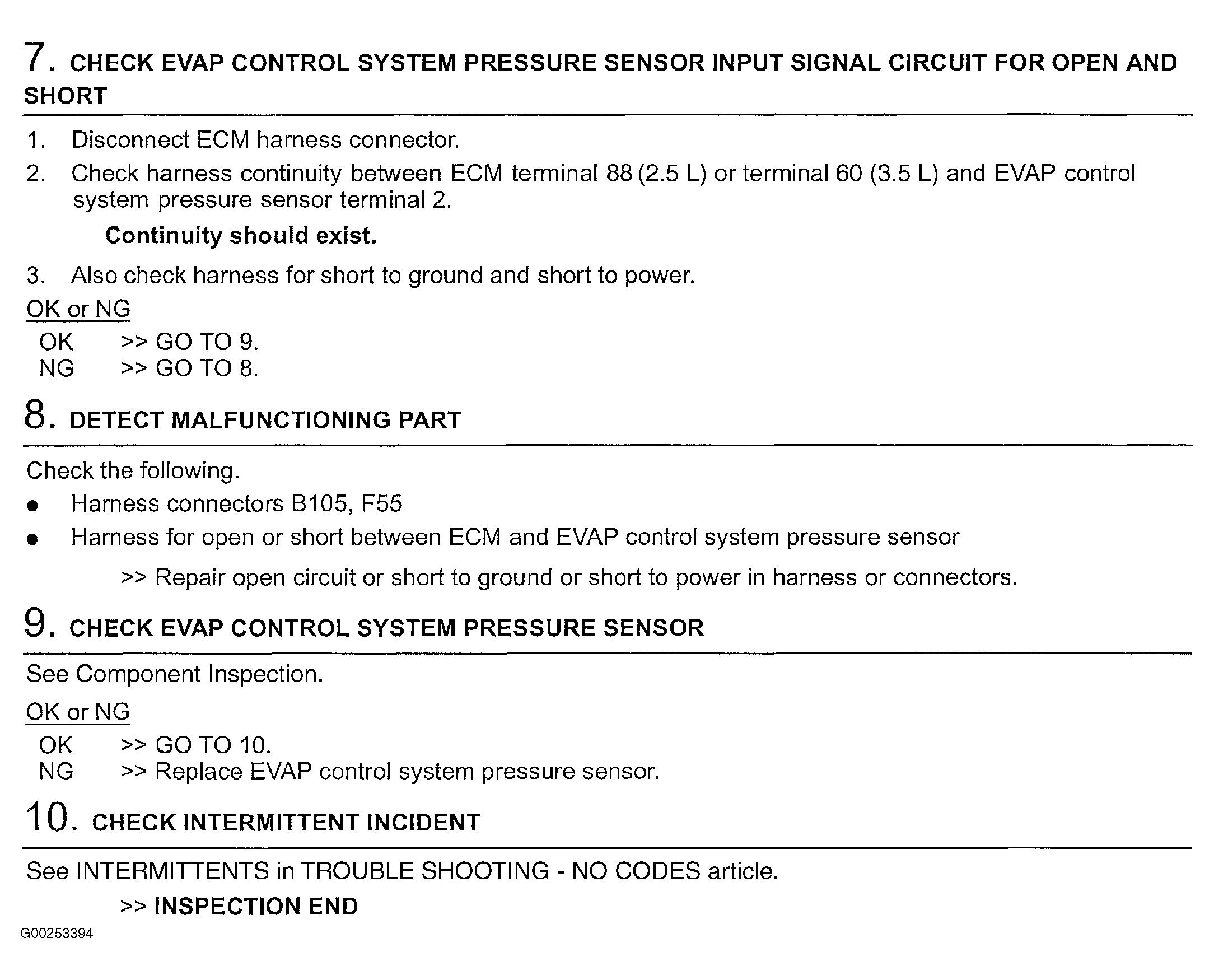

Fig 3: Identifying DTC Diagnostic Procedure For DTC P0452: EVAP Control System Pressure Sensor (Steps 7-10 Of 10)
G00253394Courtesy of NISSAN MOTOR CO., U.S.A.
