CONSULT-II Reference Value In Data Monitor Mode

For CONSULT-II reference value in data monitor mode, see Fig 1 - Fig 2 .

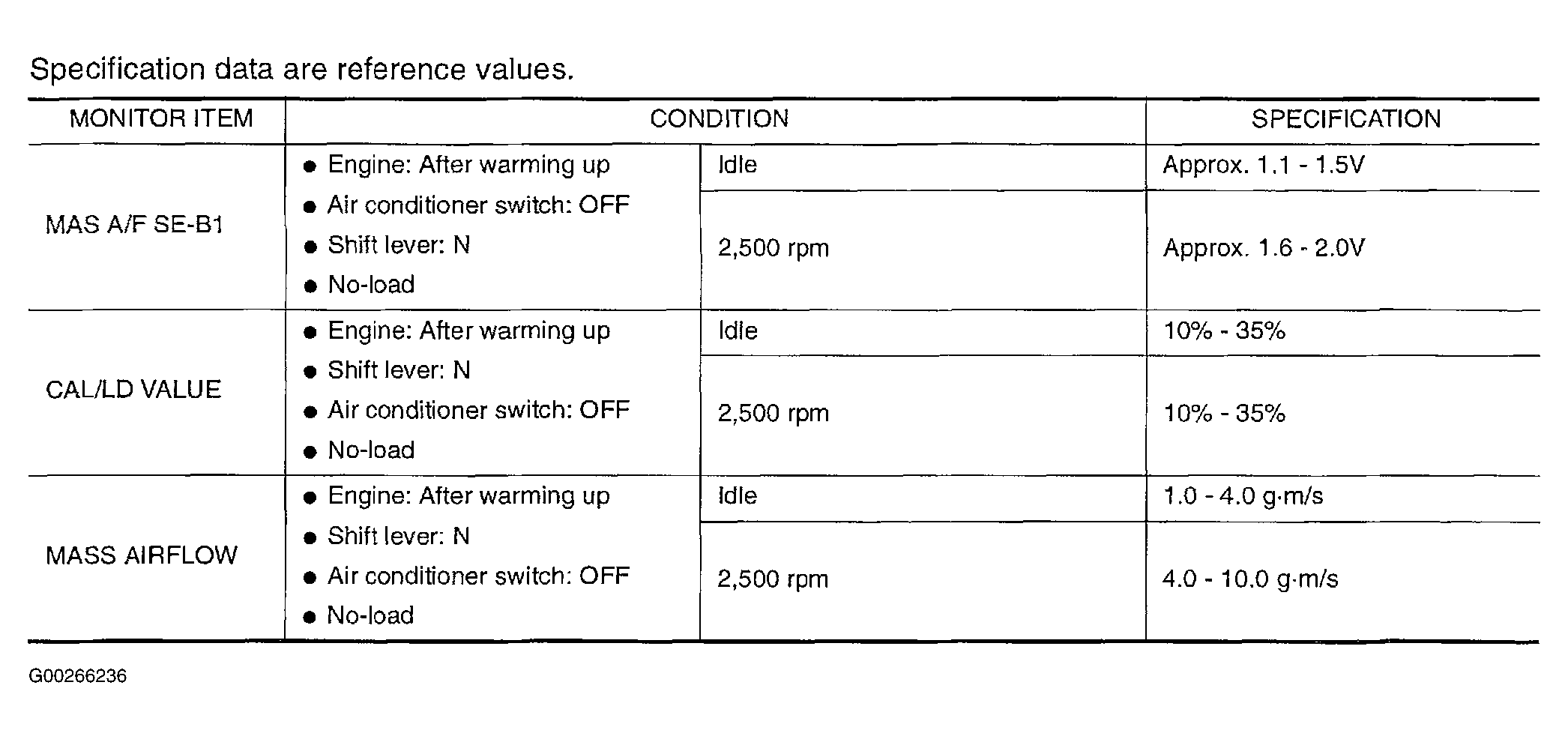

Fig 1: CONSULT-II Reference Value In Data Monitor Mode For DTC P0102 Or DTC P0103: MAF Sensor (2.5L)
G00266236Courtesy of NISSAN MOTOR CO., U.S.A.

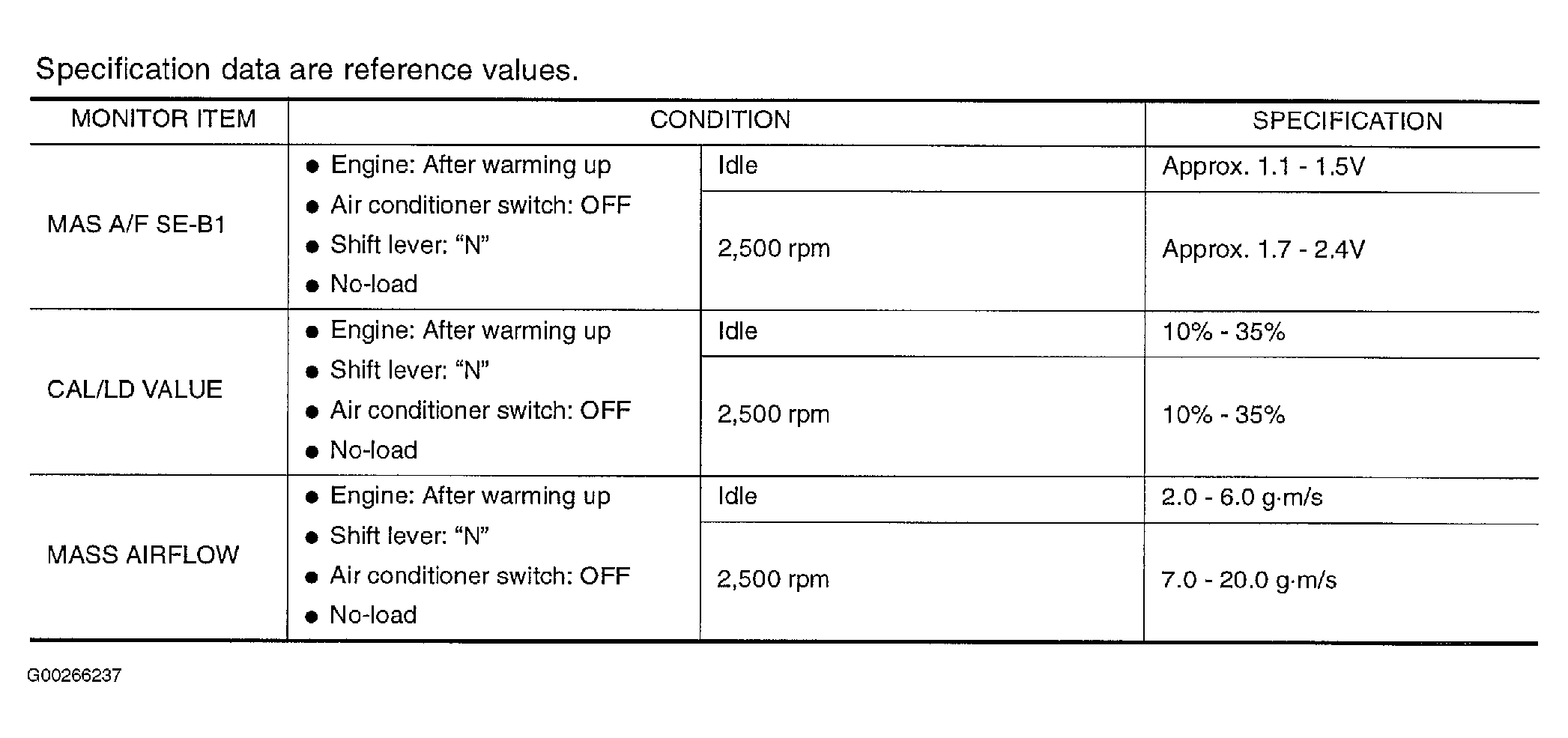

Fig 2: CONSULT-II Reference Value In Data Monitor Mode For DTC P0102 Or DTC P0103: MAF Sensor (3.5L)
G00266237Courtesy of NISSAN MOTOR CO., U.S.A.
