Overall Function Check (With GST - 2.5L)

NOTE: Use this procedure to check the overall monitoring function of the EVAP control system purge flow monitoring. During this check, a DTC might not be confirmed.

For overall function check, see Fig 1.

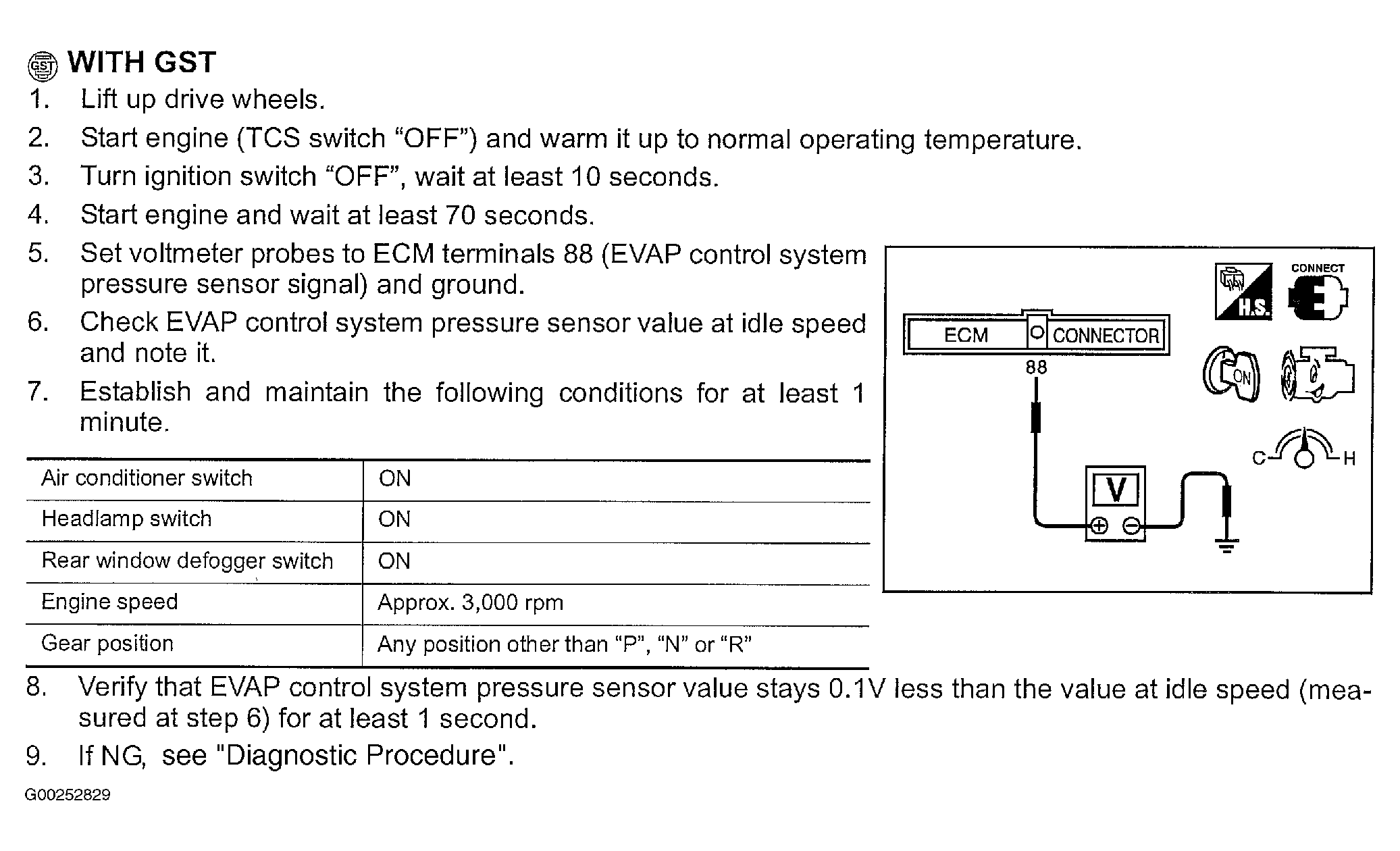

Fig 1: Identifying Overall Function Check For DTC P0441: EVAP Control System (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
