CONSULT-II Reference Value In Data Monitor Mode

For CONSULT-II reference value in data monitor mode, see Fig 1 or Fig 2 .

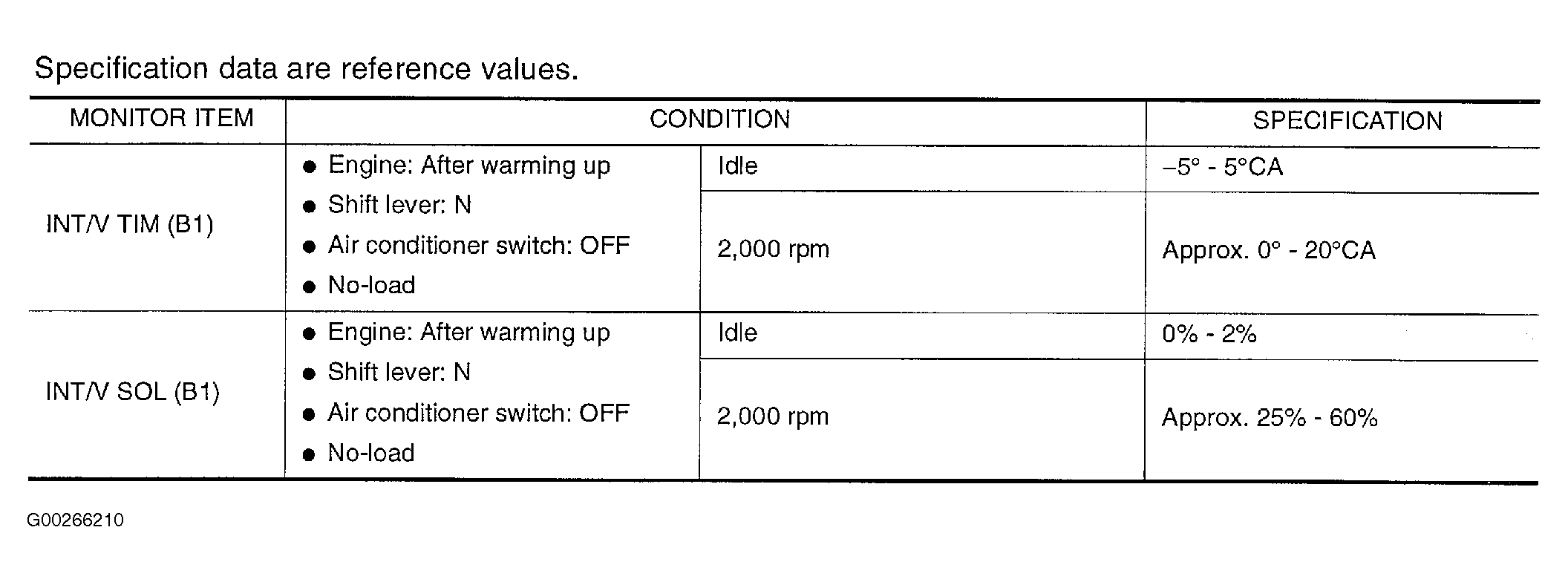

Fig 1: Identifying CONSULT-II Reference Value In Data Monitor Mode (2.5L)
G00266210Courtesy of NISSAN MOTOR CO., U.S.A.

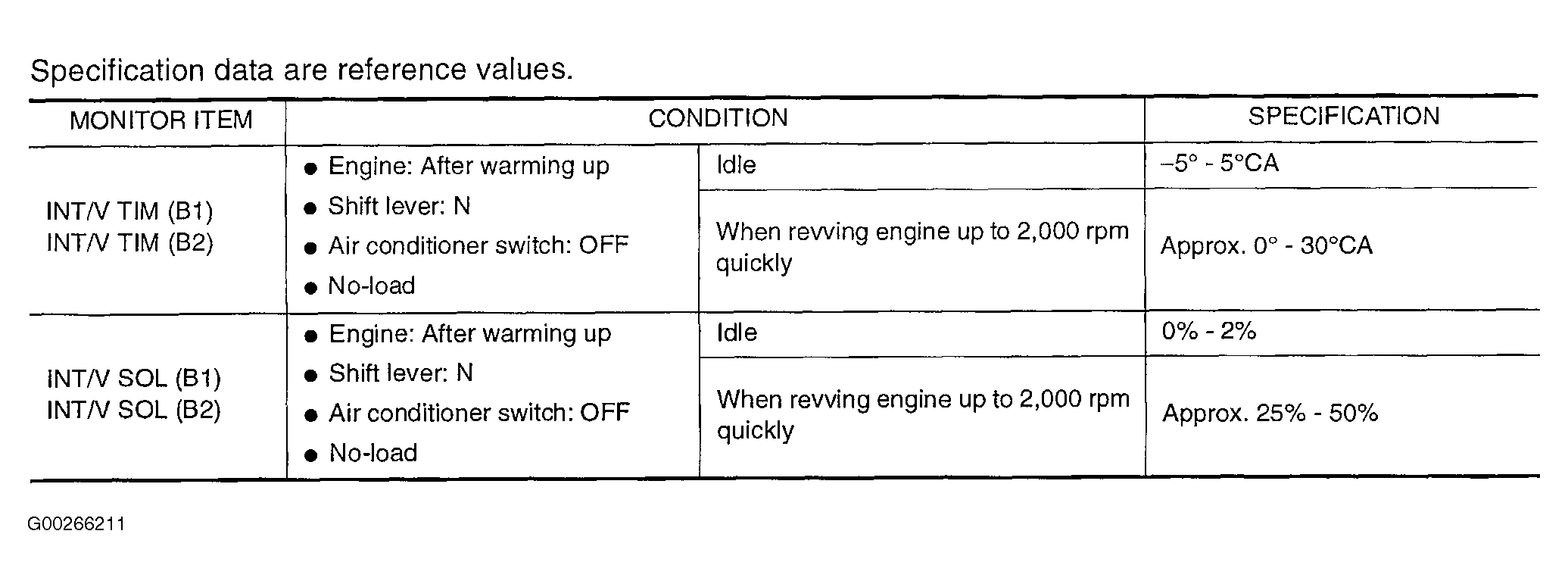

Fig 2: Identifying CONSULT-II Reference Value In Data Monitor Mode (3.5L)
G00266211Courtesy of NISSAN MOTOR CO., U.S.A.
