Home >> Nissan-Datsun >> 2003 >> Altima Base, 2.5 A, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P1464: Fuel Level Sensor >> Circuit Identification

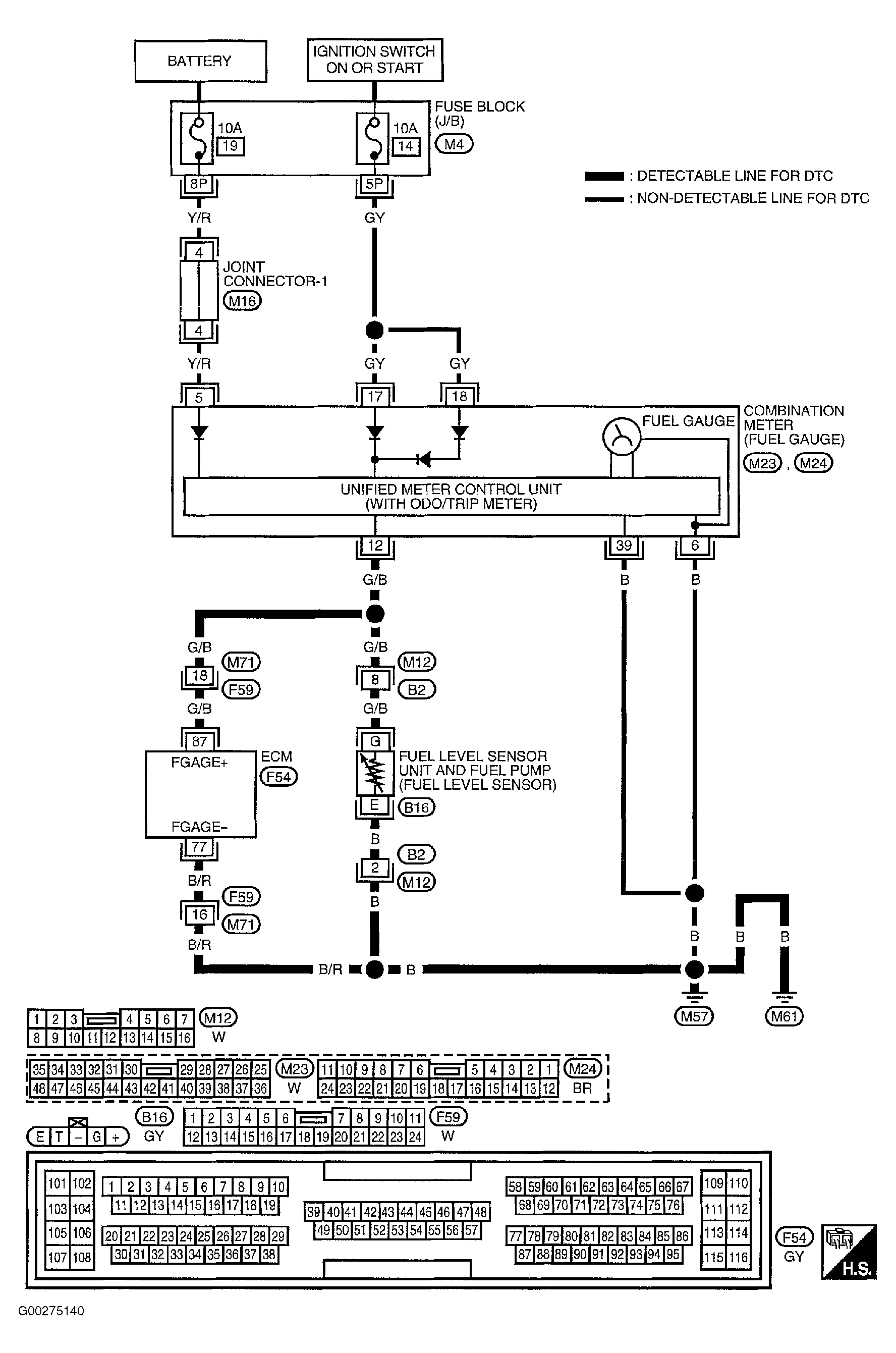

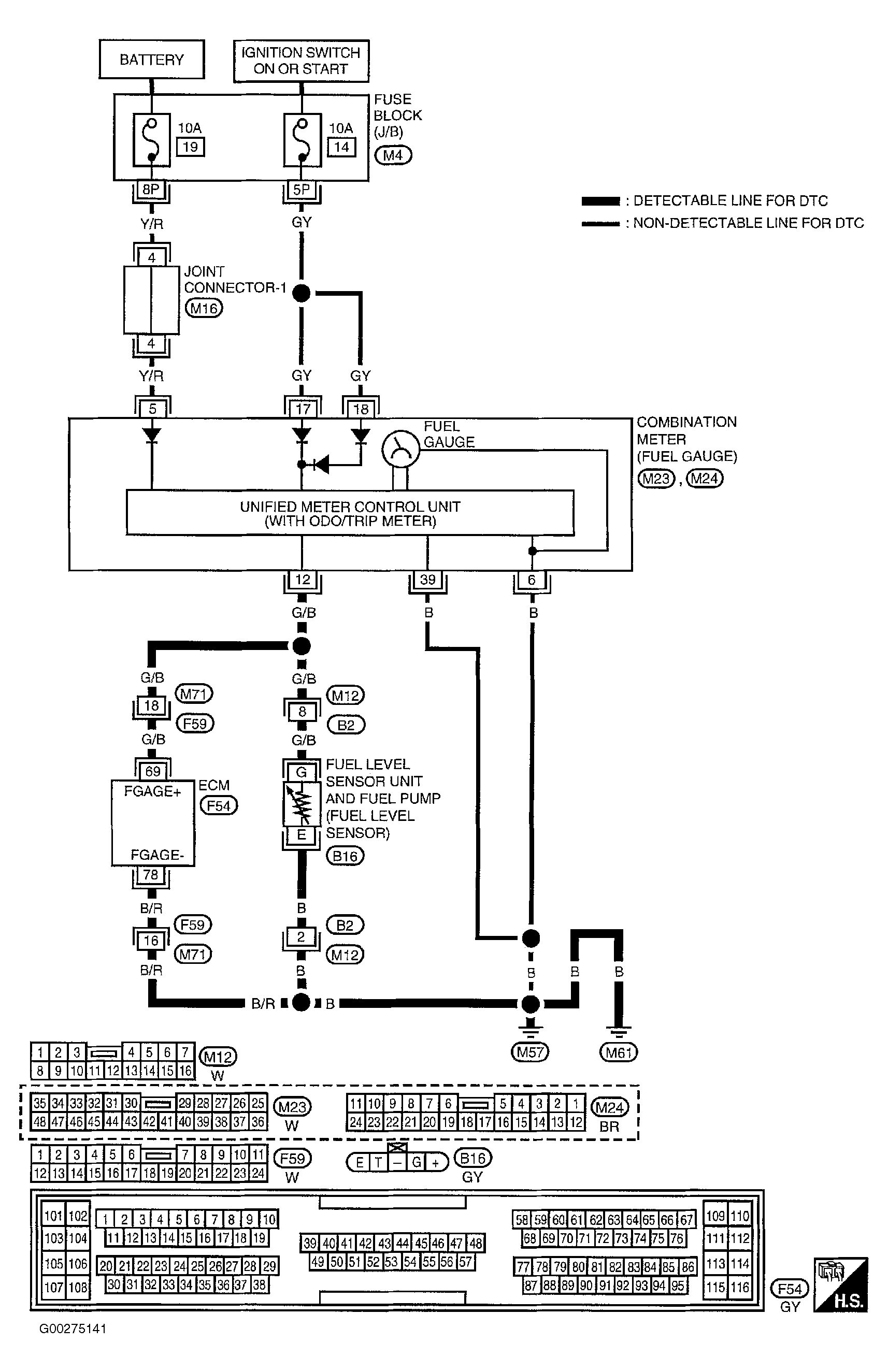

Circuit Identification

For circuit identification, see Figure-Figure .
