Nissan-Datsun
>>
2003
>>
350Z Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
VDC/TCS/Abs
>>
Trouble Diagnosis
>>
Control Unit Input/Output Signal Standard
>>
Reference Value From Consult-II
Reference Value From Consult-II
CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short - circuited.

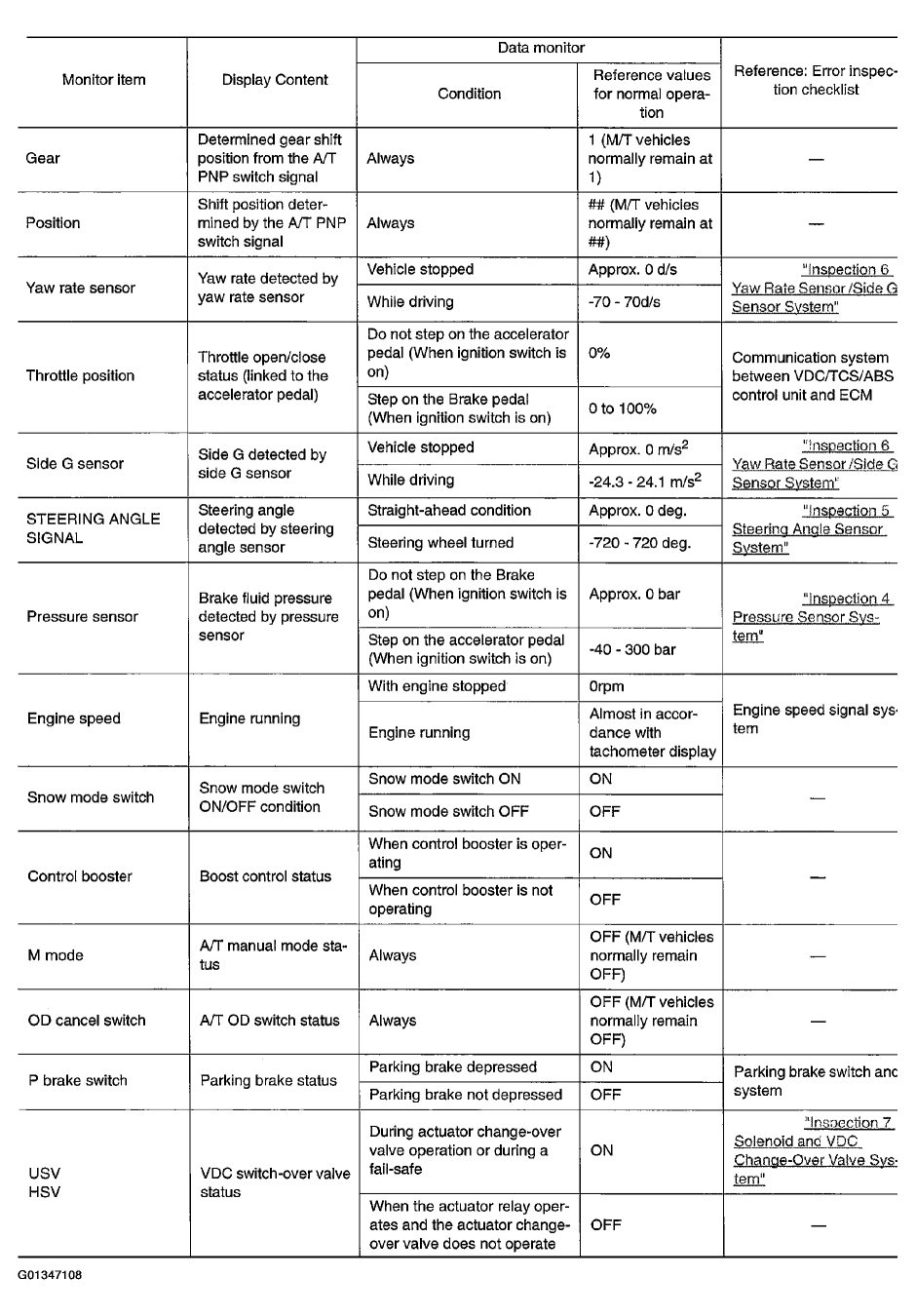

Fig 1: Reference Value From CONSULT-II (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

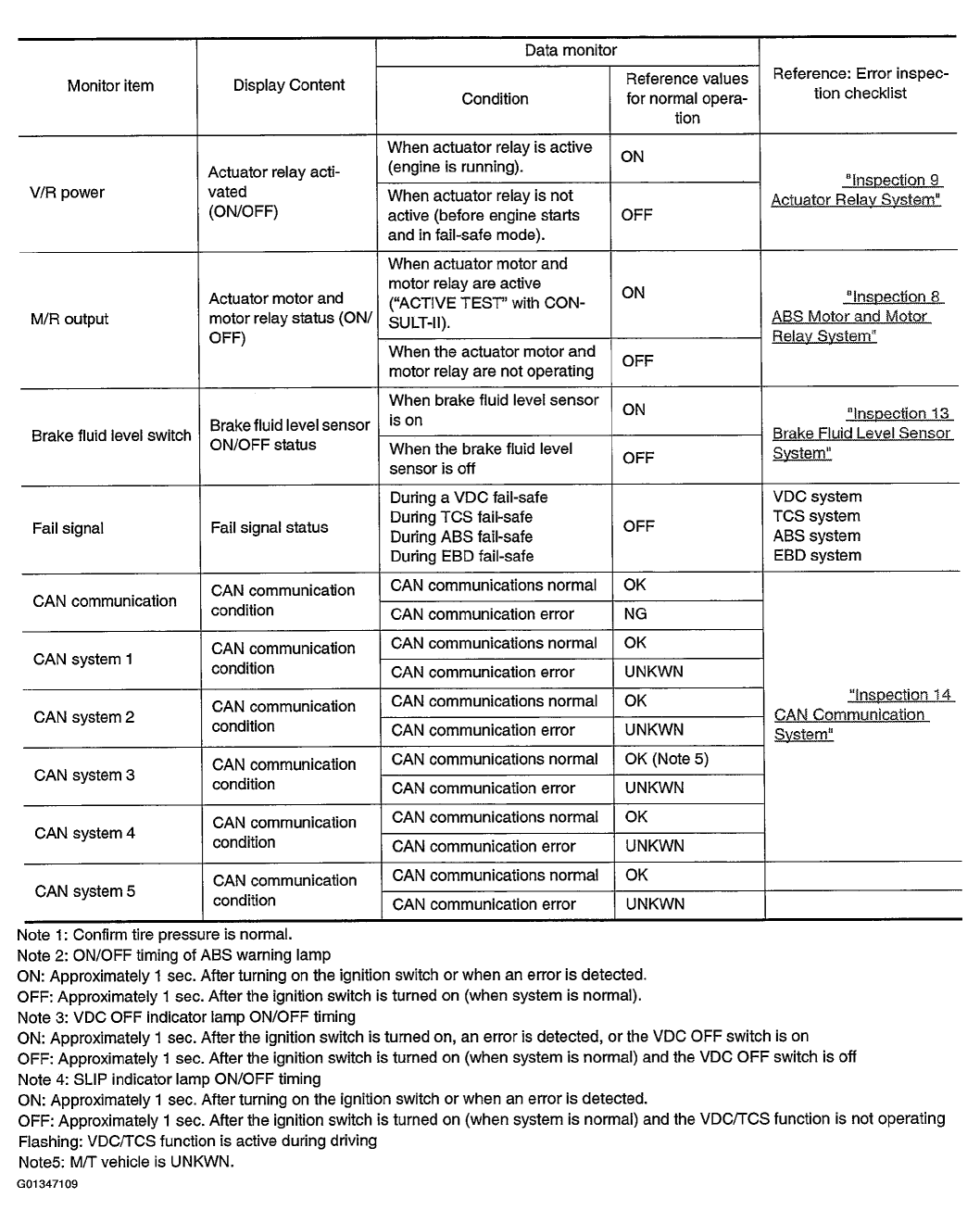

Fig 2: Reference Value From CONSULT-II (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

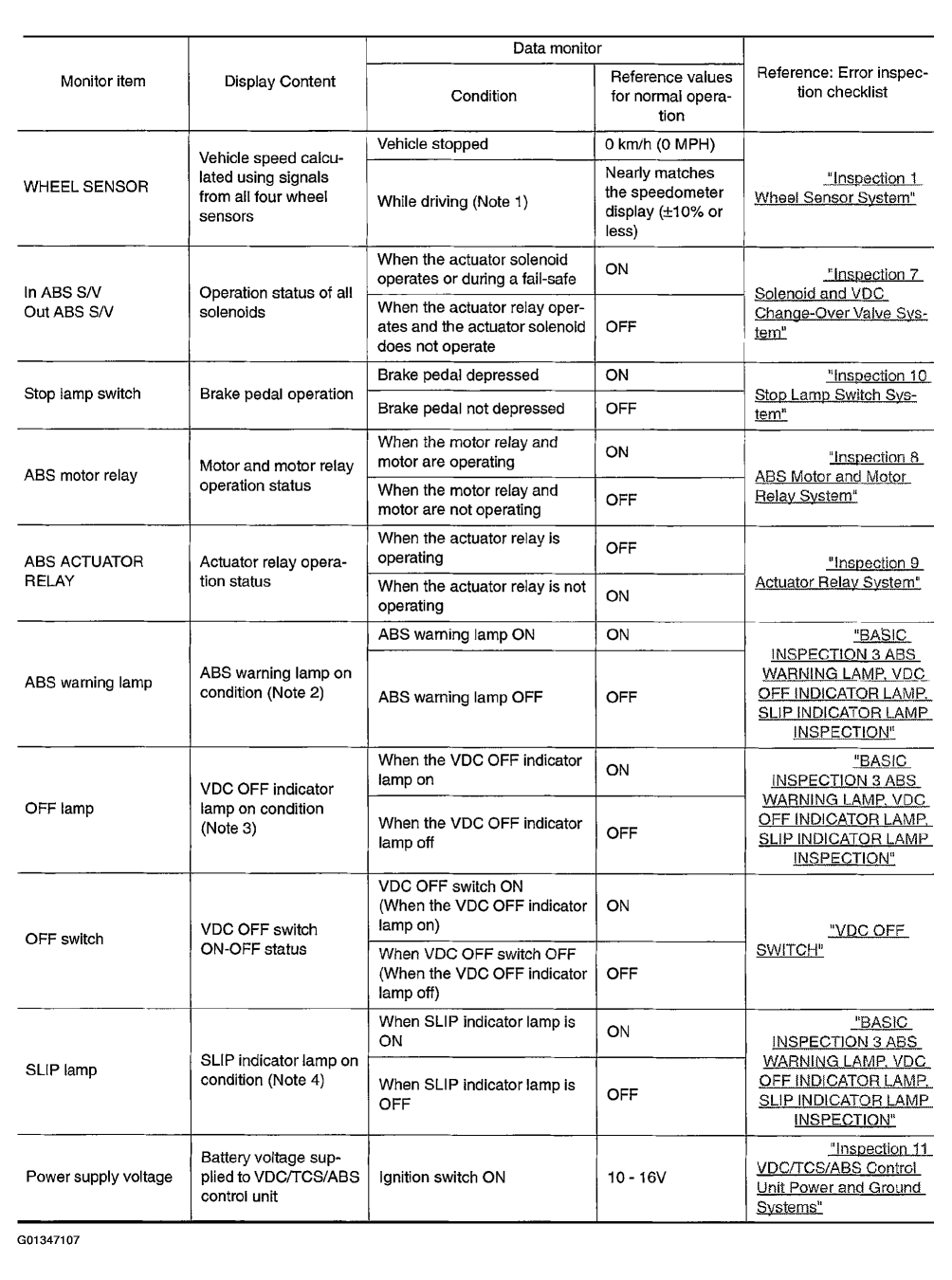

Fig 3: Reference Value From CONSULT-II (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
