Consult-II Basic Operation Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  3. Turn ignition switch ON.

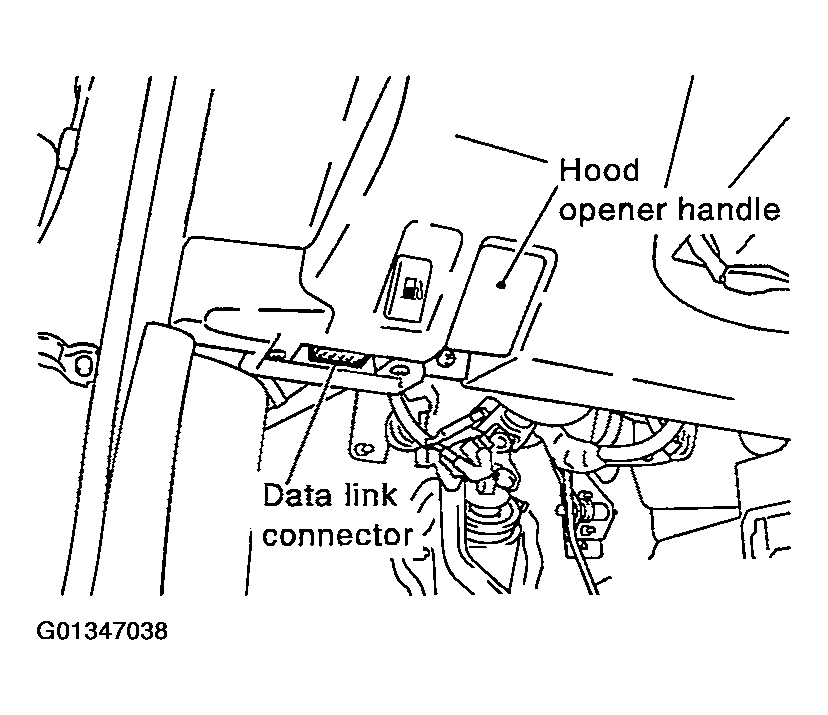

    Fig 1: Locating DLC Connector
    G01347038Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Display - Start Screen
    G01347039Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS" in the "Diagnosis System Selection" screen. If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
    Fig 3: CONSULT-II Display - Select System
    G01347040Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select the required diagnostic location from the "Diagnosis Mode Selection" screen.

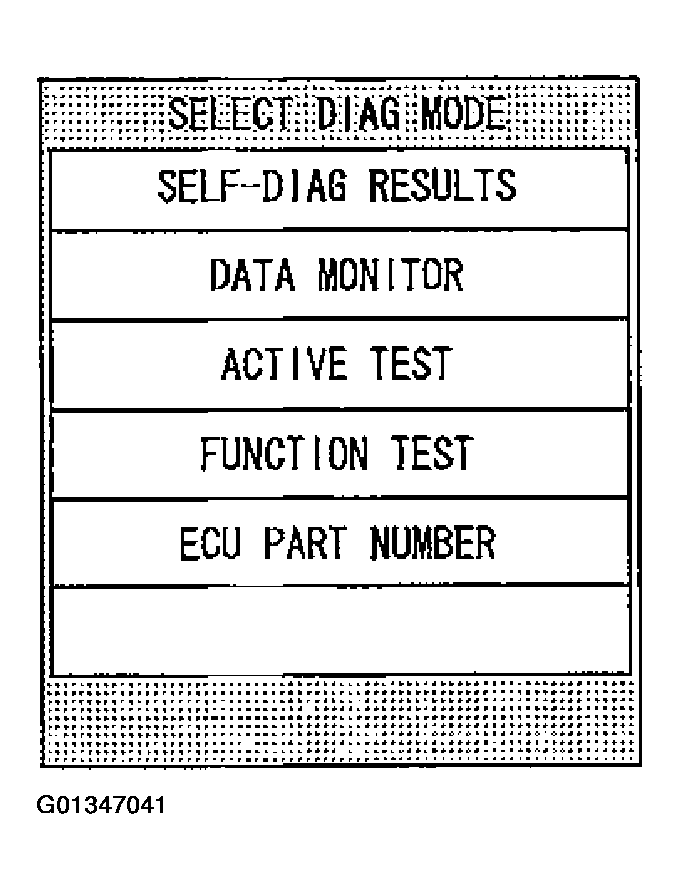

    Fig 4: CONSULT-II Display - Diagnosis Mode
    G01347041Courtesy of NISSAN MOTOR CO., U.S.A.
