Transaxle & Transmission

Filler plug is located on side of transaxle or transmission case. Lubricant level should be to bottom of filler plug hole. See Fig 1 -Fig 3 . Add fluid if necessary.

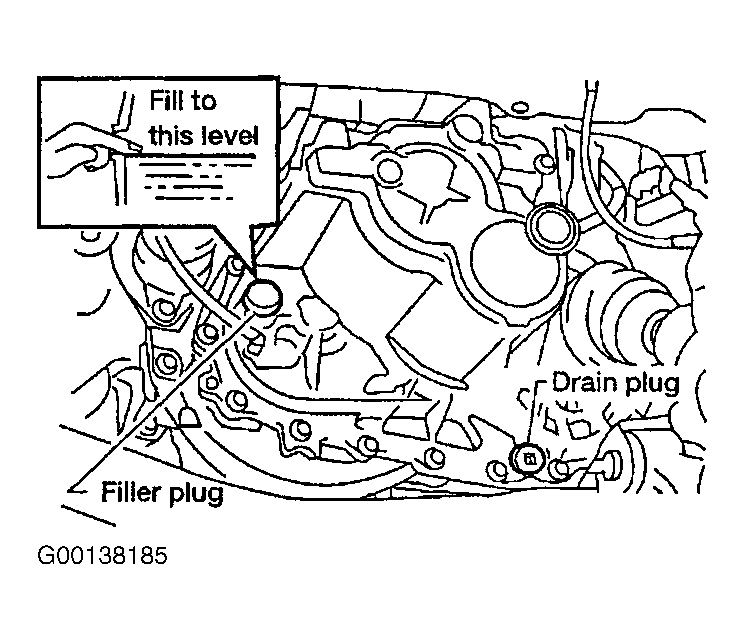

Fig 1: Checking Transaxle Fluid Level (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Transaxle Fluid Level (Except Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Checking Transmission Fluid Level

Courtesy of NISSAN MOTOR CO., U.S.A.
