Input Shaft Thrust Washer

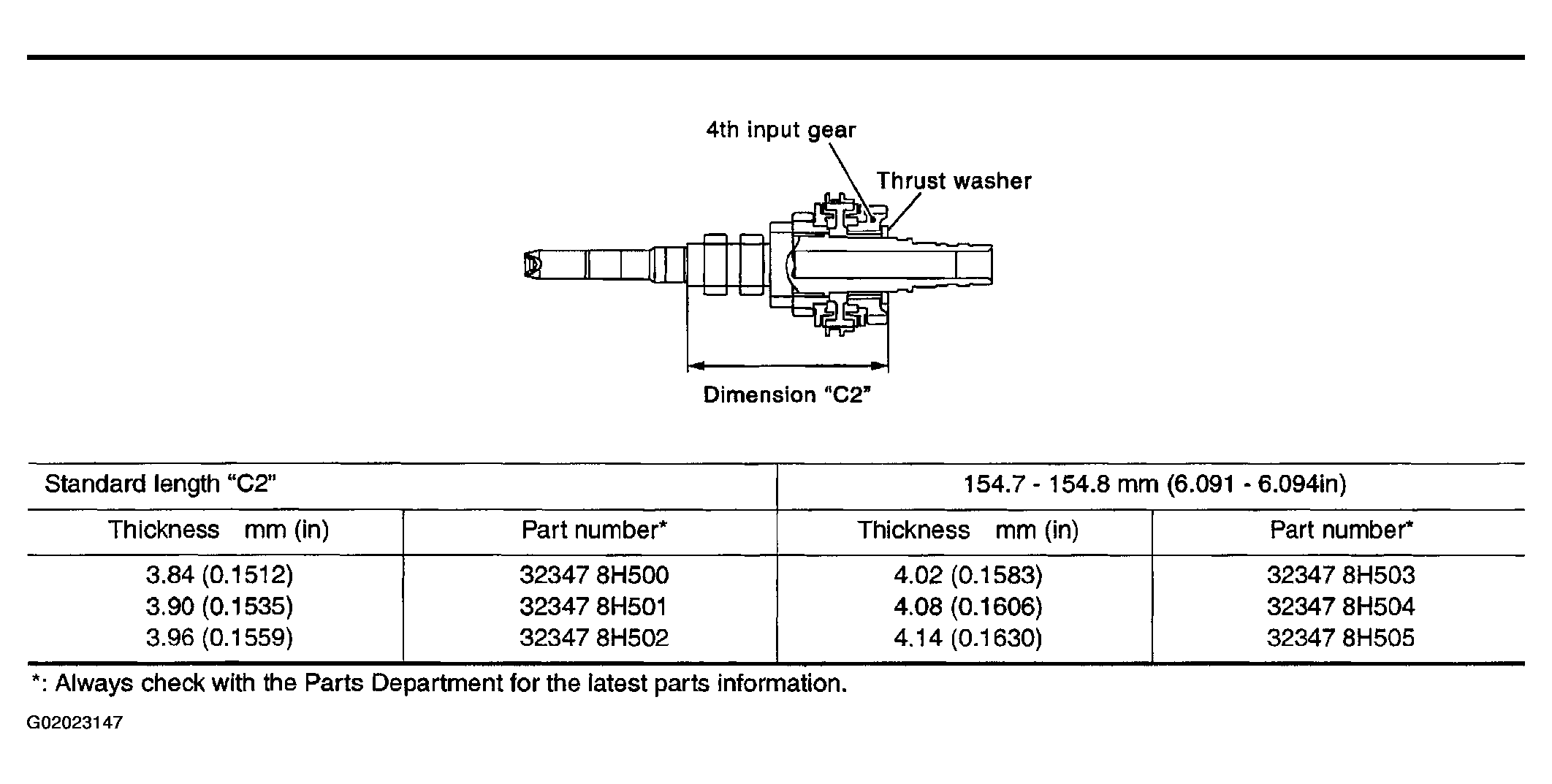

Fig 1: Input Shaft Thrust Washer Specifications

G02023147

Courtesy of NISSAN MOTOR CO., U.S.A.
