MAINSHAFT Thrust WASHER

WARNING: This page is about a different variant/trim than selected.

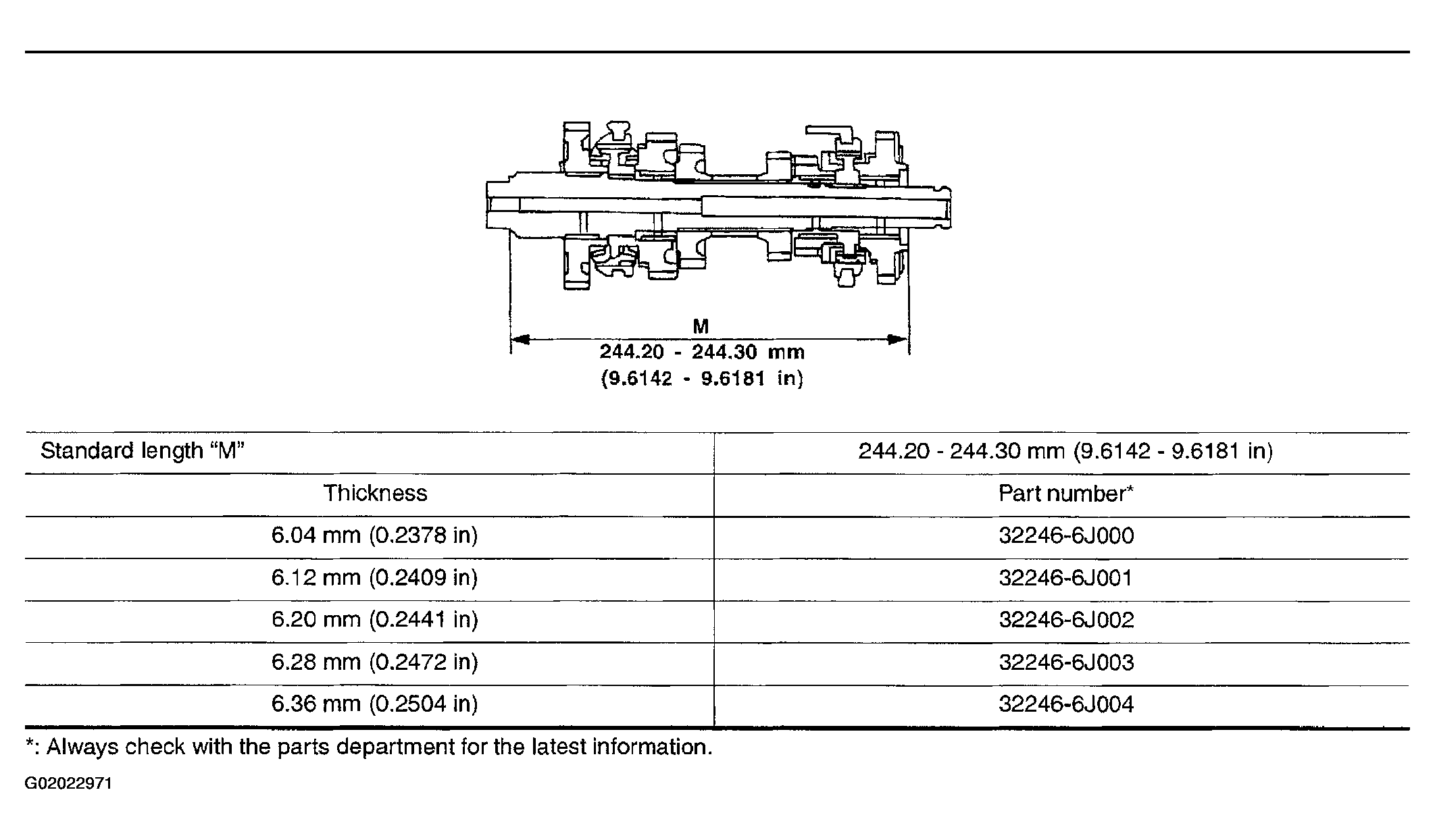

Fig 1: Available Thrust Washer Specifications

G02022971

Courtesy of NISSAN MOTOR CO., U.S.A.
