Data Monitor Mode (A/T)

WARNING: This page is about a different variant/trim than selected.

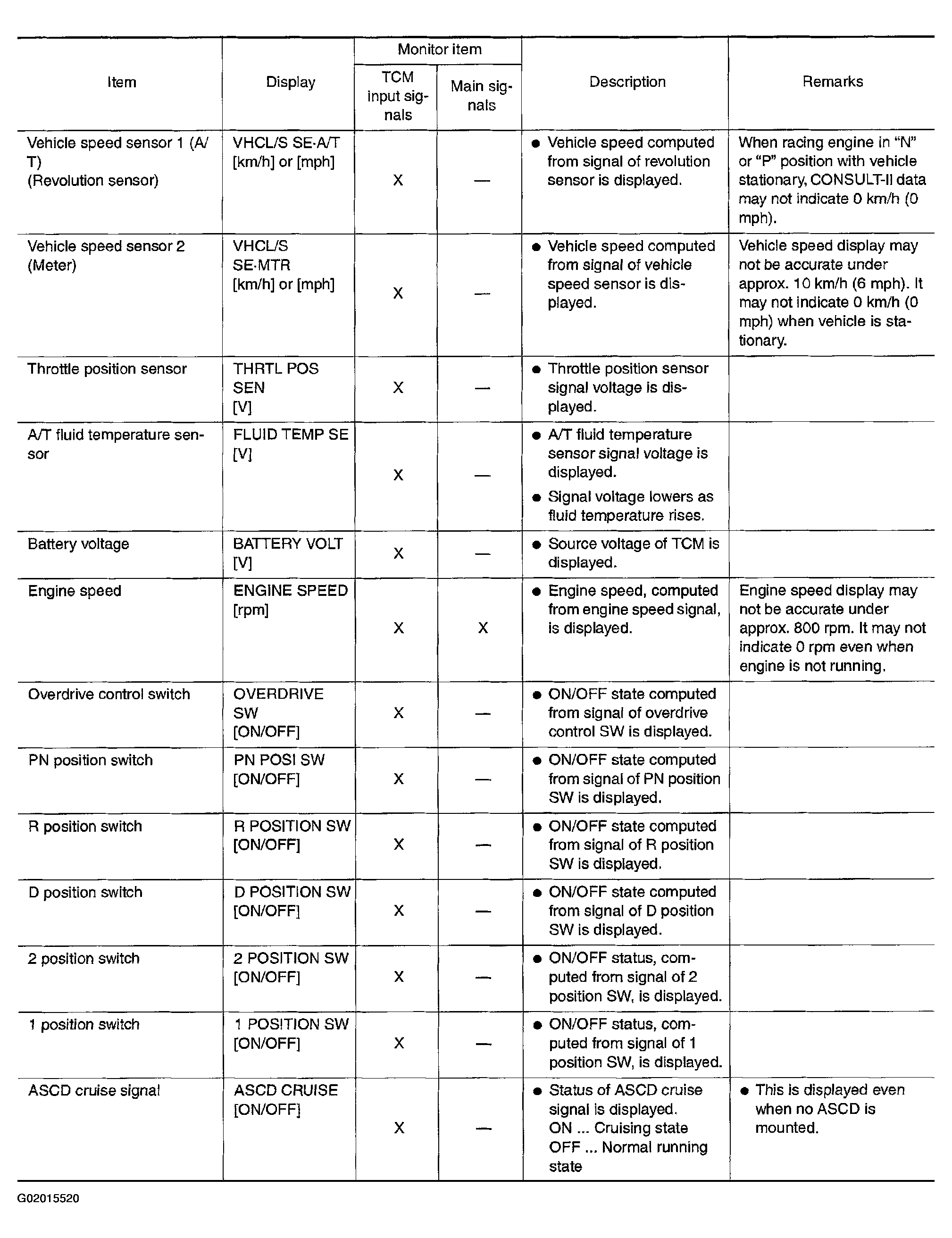

Fig 1: Data Monitor Mode Chart (1 Of 3)
G02015520Courtesy of NISSAN MOTOR CO., U.S.A.

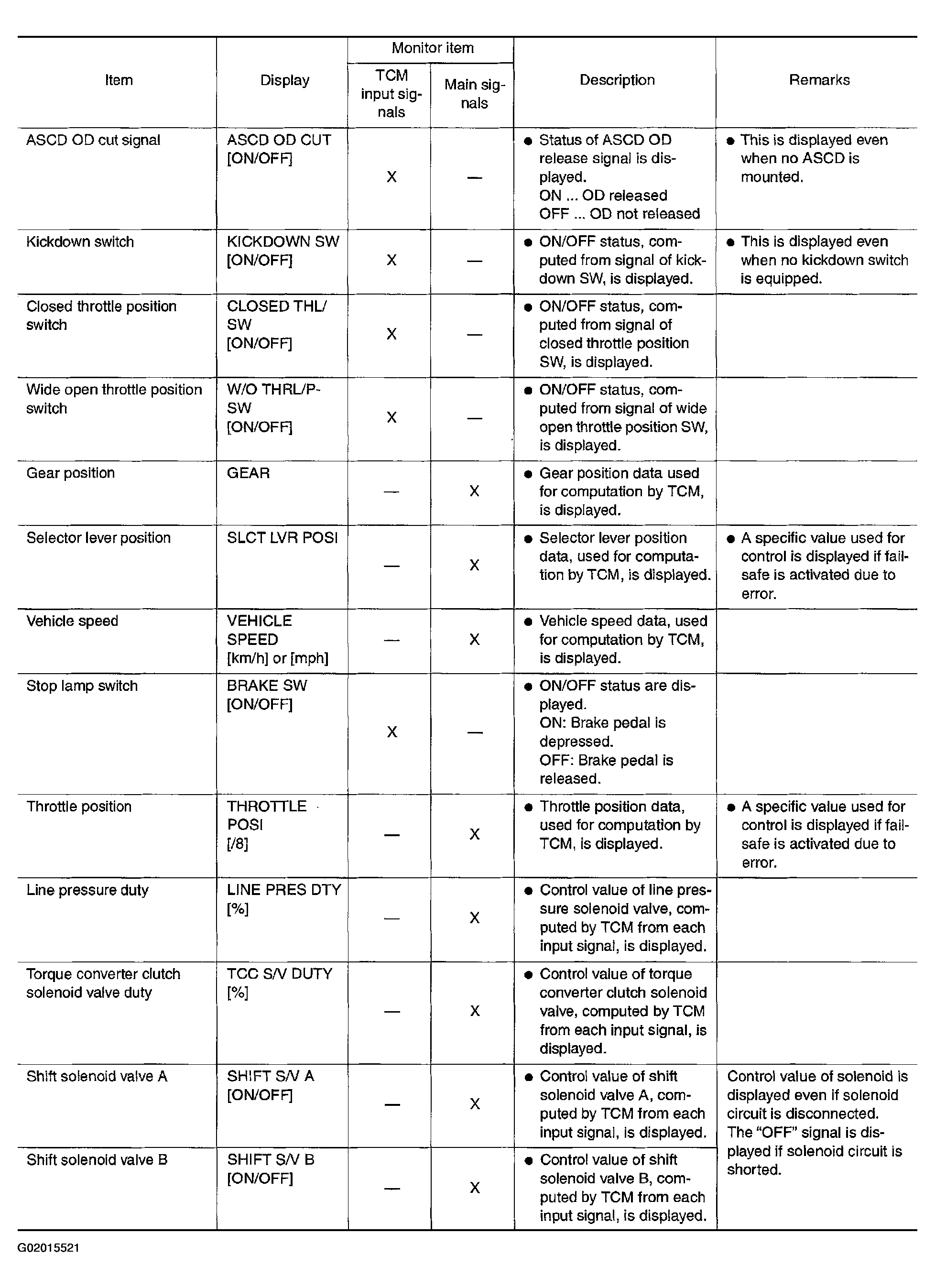

Fig 2: Data Monitor Mode Chart (2 Of 3)
G02015521Courtesy of NISSAN MOTOR CO., U.S.A.

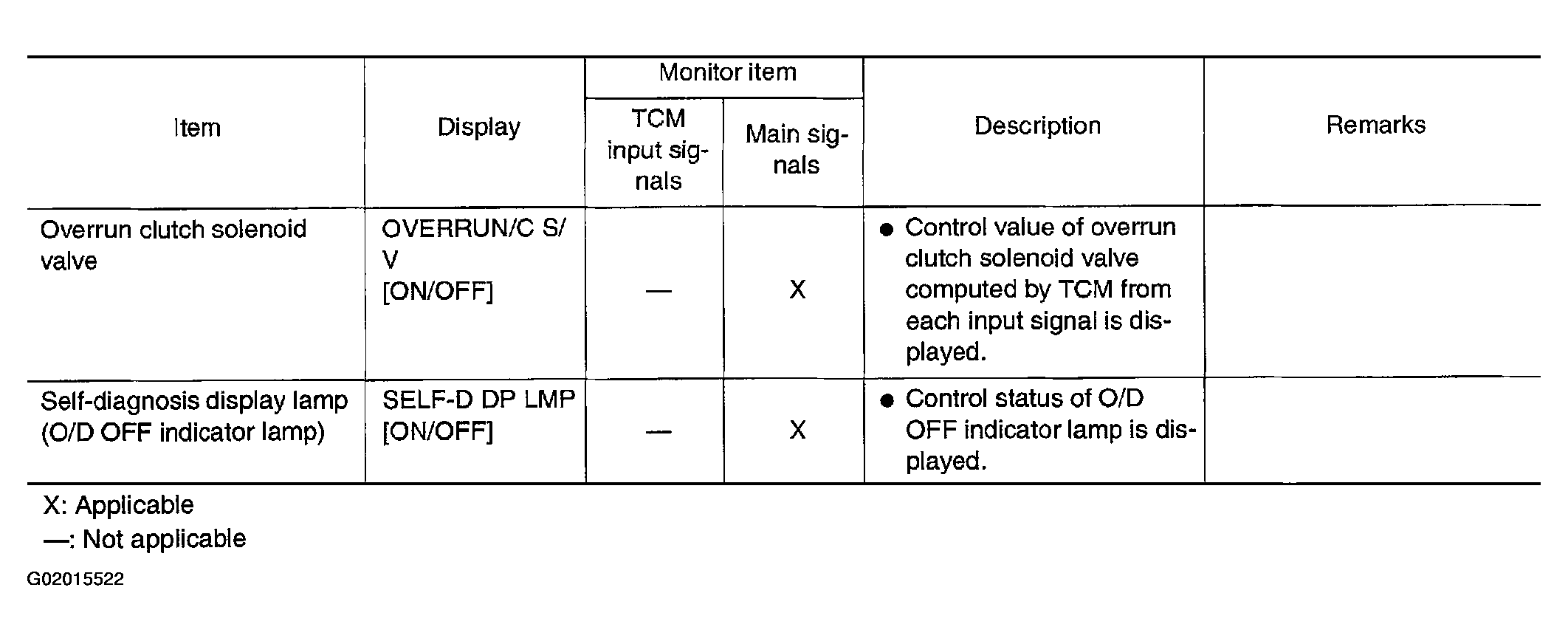

Fig 3: Data Monitor Mode Chart (3 Of 3)
G02015522Courtesy of NISSAN MOTOR CO., U.S.A.
