DTC P0750: Shift Solenoid Valve A: Description: Notes

Shift solenoid valves A and B are turned ON or OFF by the TCM in response to signals sent from the PNP switch, vehicle speed and throttle position sensors. Gears will then be shifted to the optimum position.

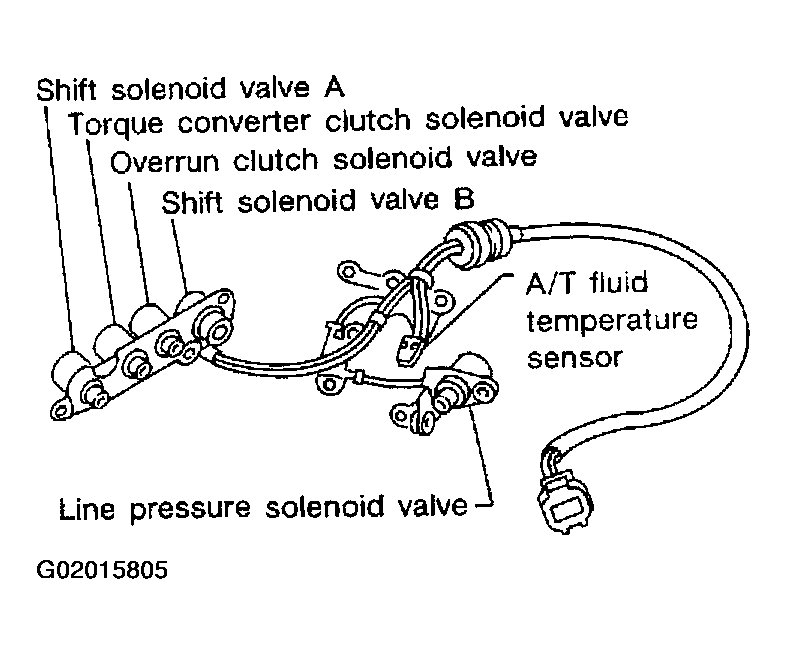

Fig 1: Identifying Shift Solenoid Valve A Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Malfunction Detection Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
