Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

Fig 1: Identifying Data Link Connector & Hood Opener Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Display Engine Consult-II Data Sheet (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS" on the "SELECT SYSTEM" screen.
If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Display Engine Consult-II Data Sheet (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, touch either "WITH SUNROOF" or "WITH OUT SUNROOF".

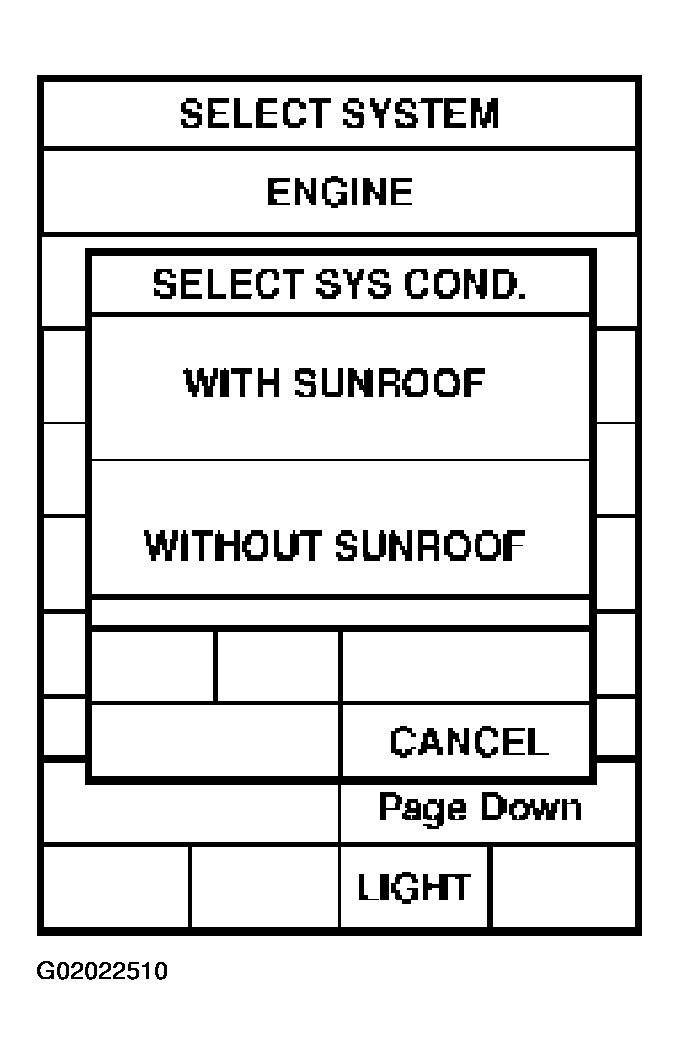

Fig 4: Display Engine Consult-II Data Sheet (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "OK". If the selection is wrong, touch "CANCEL".
Touch "THEFT WARNING SYSTEM" on the "SELECT TEST ITEM" screen.
- WORK SUPPORT, DATA MONITOR and ACTIVE TEST are available for the vehicle security system.

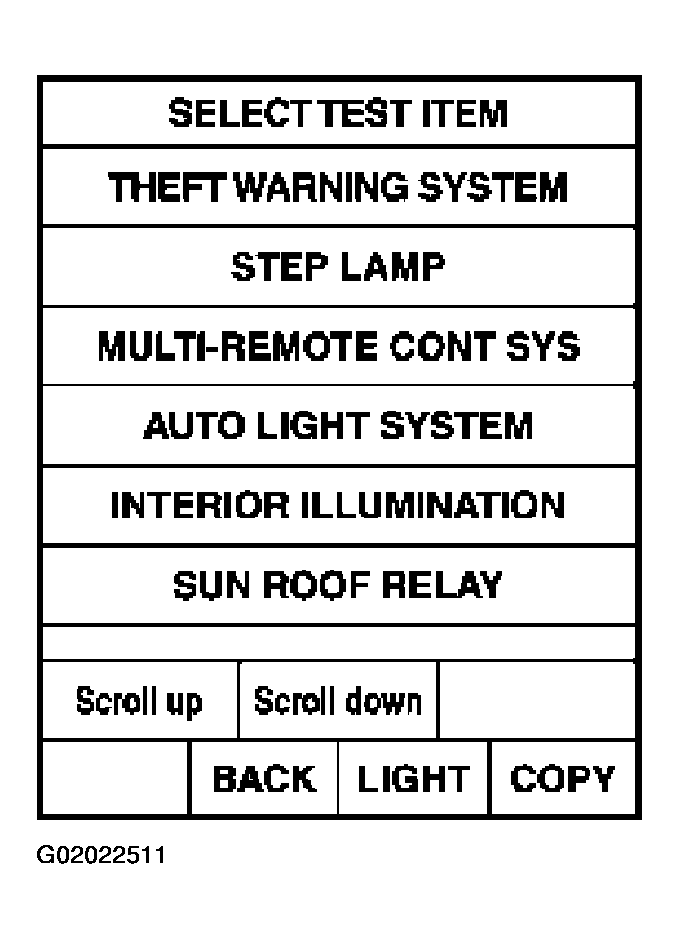

Fig 5: Display Engine Consult-II Data Sheet (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
