Coil Spring And Strut Assembly: Reassembly

WARNING: This page is about a different car, the 2004 Infiniti M45 and 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Compress coil spring using a spring compressor, and install it onto strut assembly. Face tube side of coil spring downward. Align lower end to spring seat. Apply soapy water to bound bumper and insert into strut mounting insulator.
  2. Be careful to install spring correctly. See Fig 1 . Install upper spring seat with slit facing outer side of vehicle. Install piston rod lock nut and tighten to specification. See TORQUE SPECIFICATIONS  .

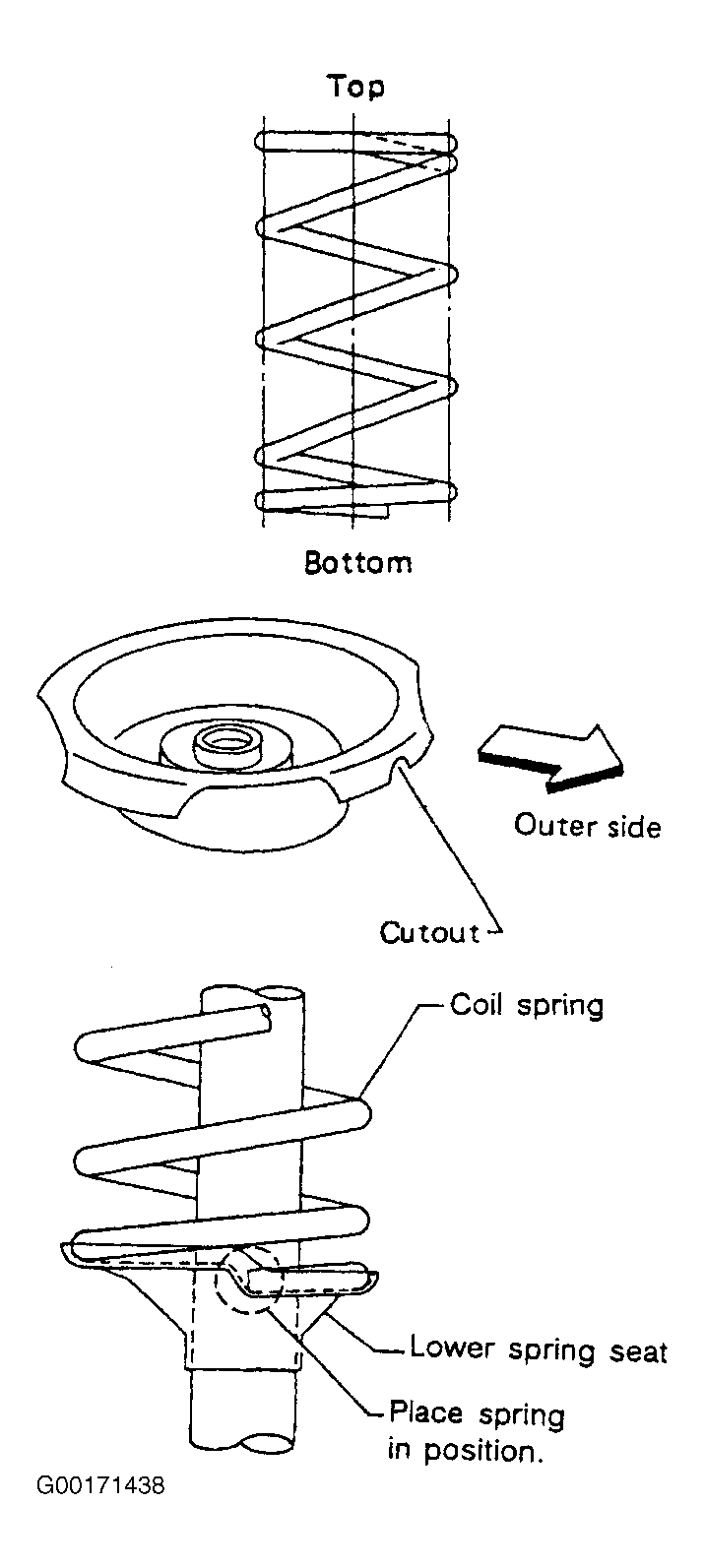

Fig 1: Installing Coil Spring In Strut Assembly
G00171438Courtesy of NISSAN MOTOR CO., U.S.A.
