Stop Lamp Switch

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect stop lamp switch harness connector.

Fig 1: Locating ASCD Brake Switch And Stop Lamp Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

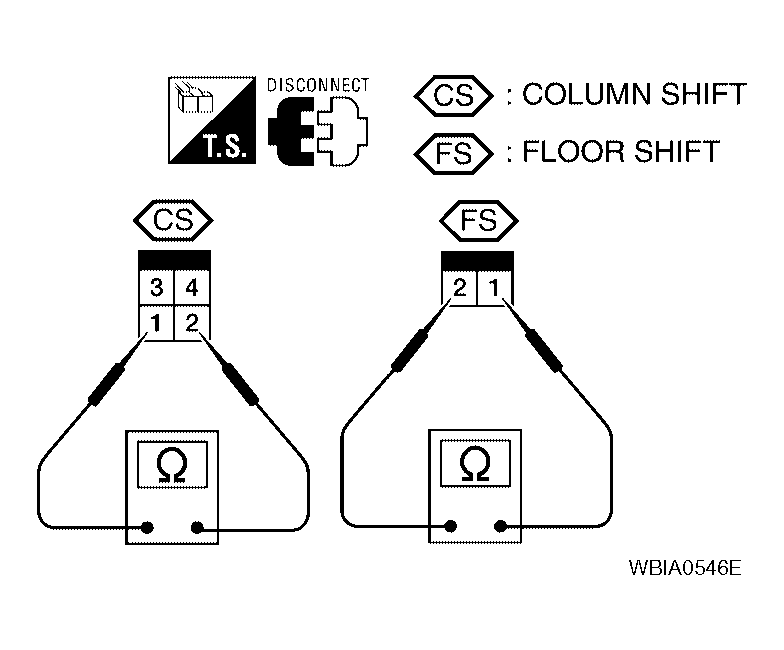

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.

CONDITION REFERENCE CHART

Conditions	Continuity
Brake pedal: Fully released	Should not exist.
Brake pedal: Slightly depressed	Should exist.

If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step 2 again.
