With Consult-II

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine (VDC switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.

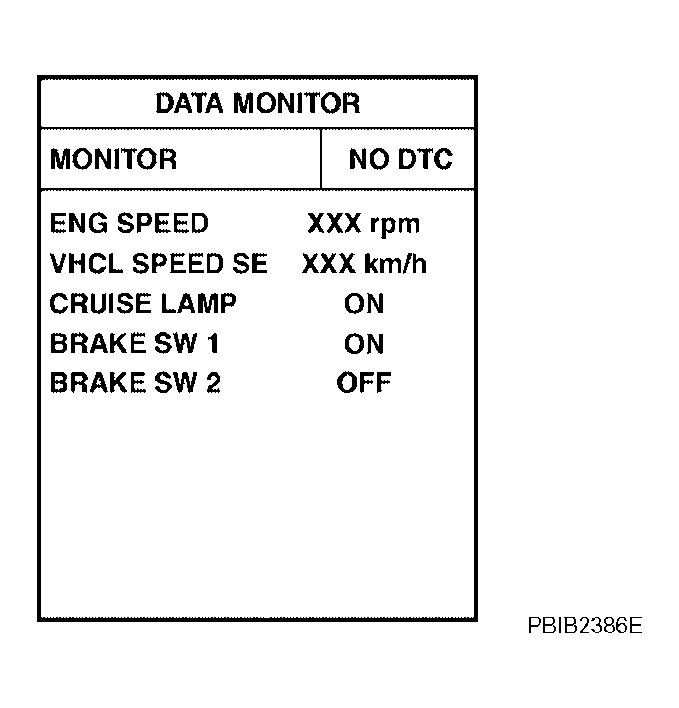

    3. Fig 1: CONSULT-II Display - DATA MONITOR
    G04185500Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Press MAIN switch and make sure that CRUISE indicator lights up.
  4. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    CONDITION REFERENCE

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position

    If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

    If DTC is not detected, go to the following step.

  5. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    CONDITION REFERENCE

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position
    Driving location Depress the brake pedal for more than five seconds so as not to come off from the above-mentioned condition.
  6. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
