WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

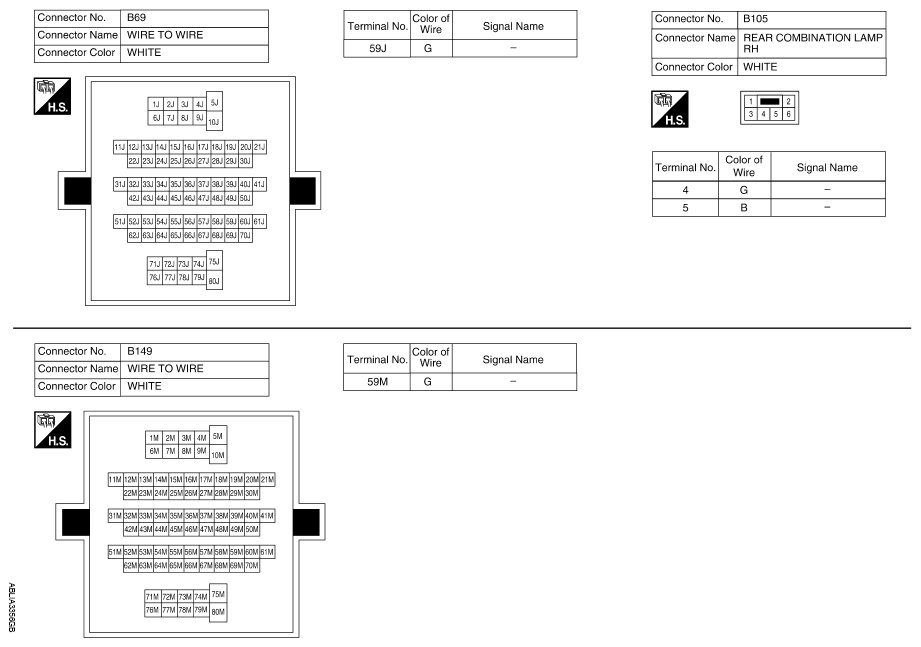

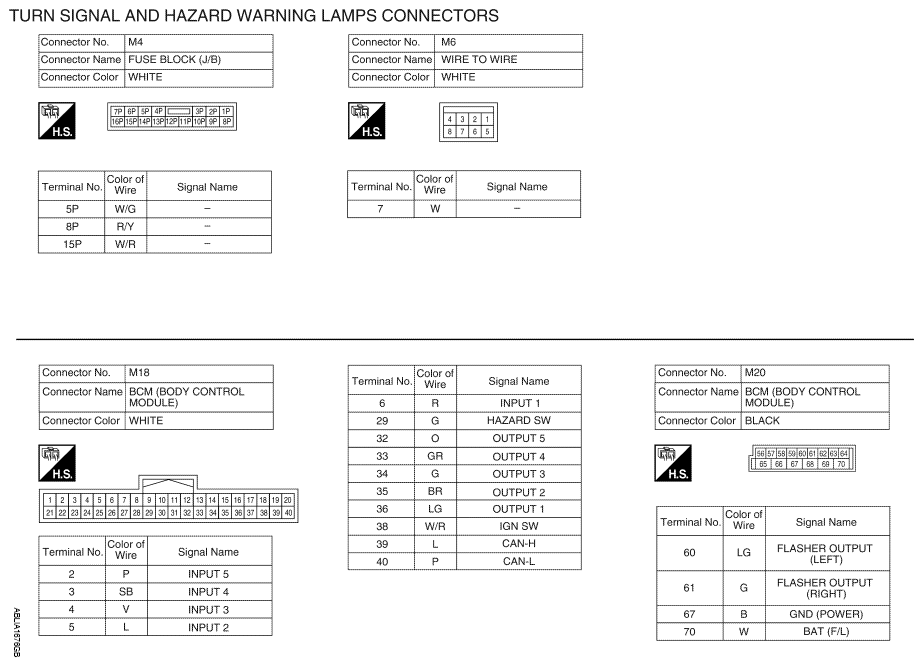

Fig 1: Identifying Turn Signal And Hazard Warning Lamp Connectors (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

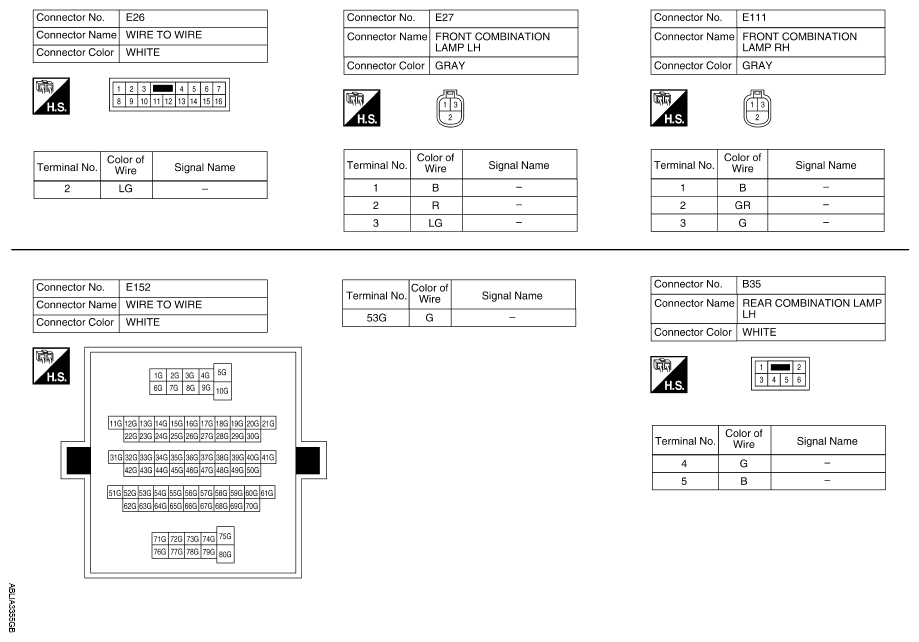

Fig 2: Identifying Turn Signal And Hazard Warning Lamp Connectors (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

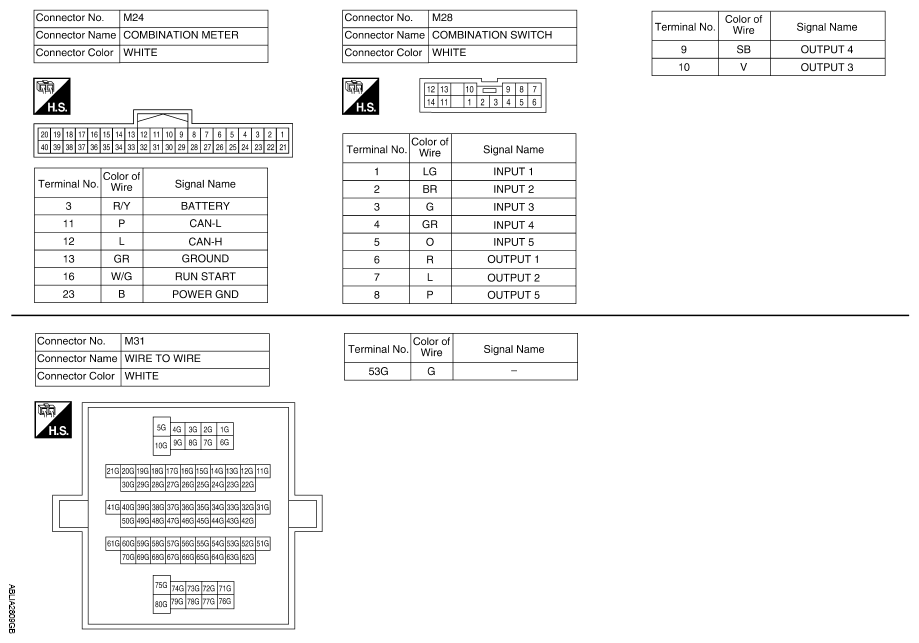

Fig 3: Identifying Turn Signal And Hazard Warning Lamp Connectors (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

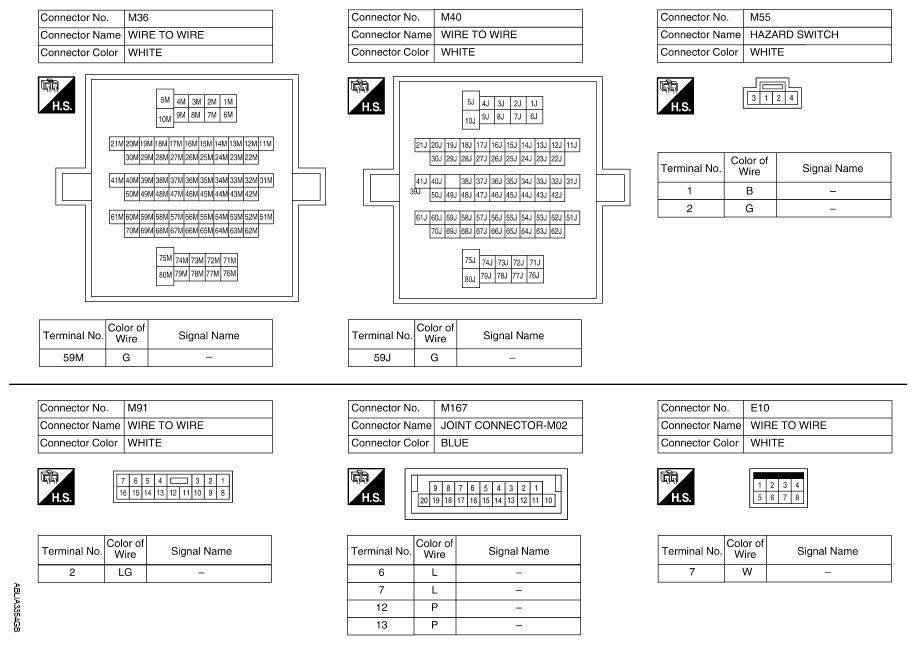

Fig 4: Identifying Turn Signal And Hazard Warning Lamp Connectors (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Identifying Turn Signal And Hazard Warning Lamp Connectors (5 Of 5)
