WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

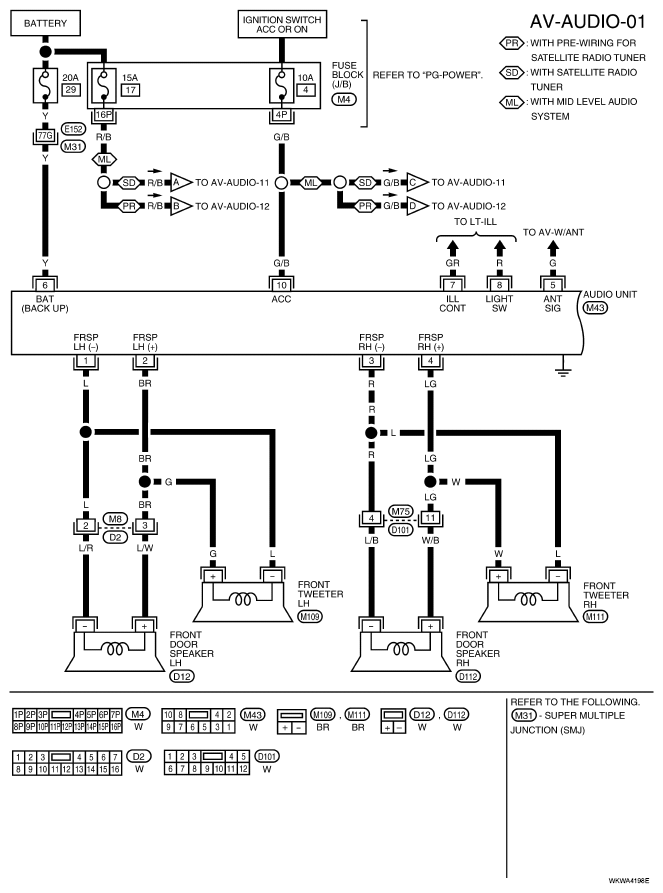

Fig 1: Identifying Base And Mid Level System Wiring Diagram - AV-AUDIO-01

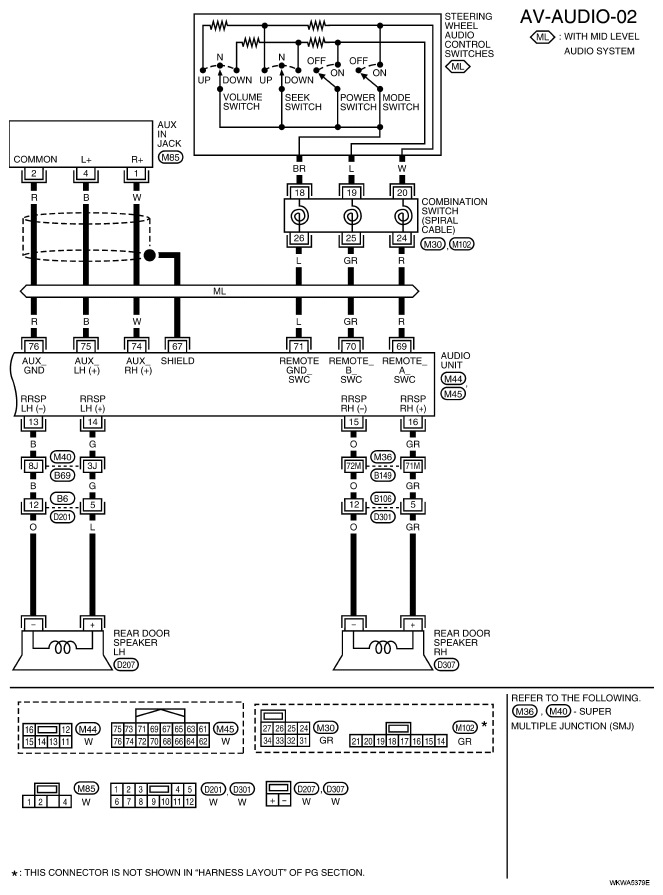

Fig 2: Identifying Base And Mid Level System Wiring Diagram - AV-AUDIO-02
