Wiring Diagram -COMM-

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

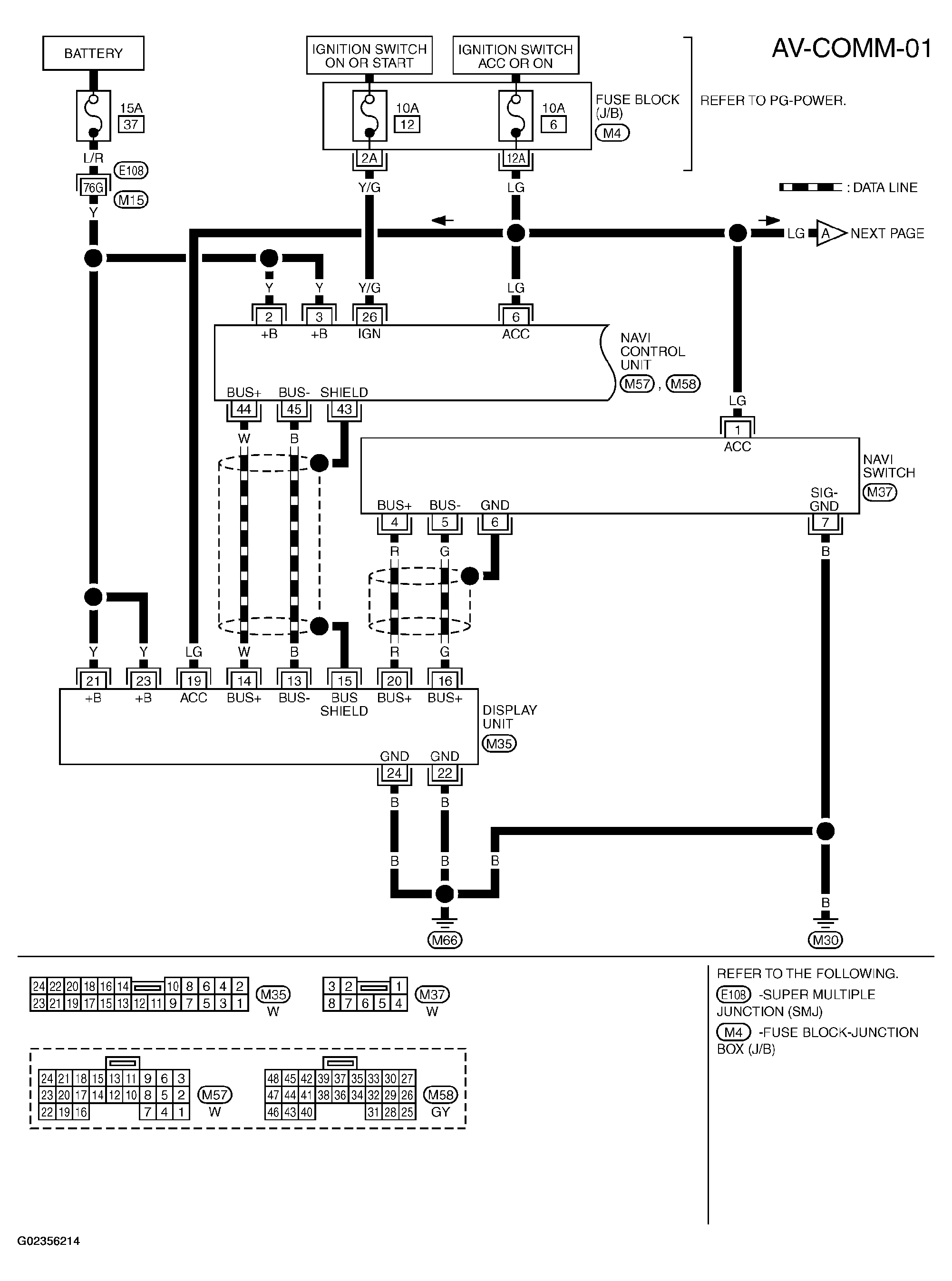

Fig 1: Wiring Diagram -COMM- AV-COMM-01
G02356214Courtesy of NISSAN MOTOR CO., U.S.A.

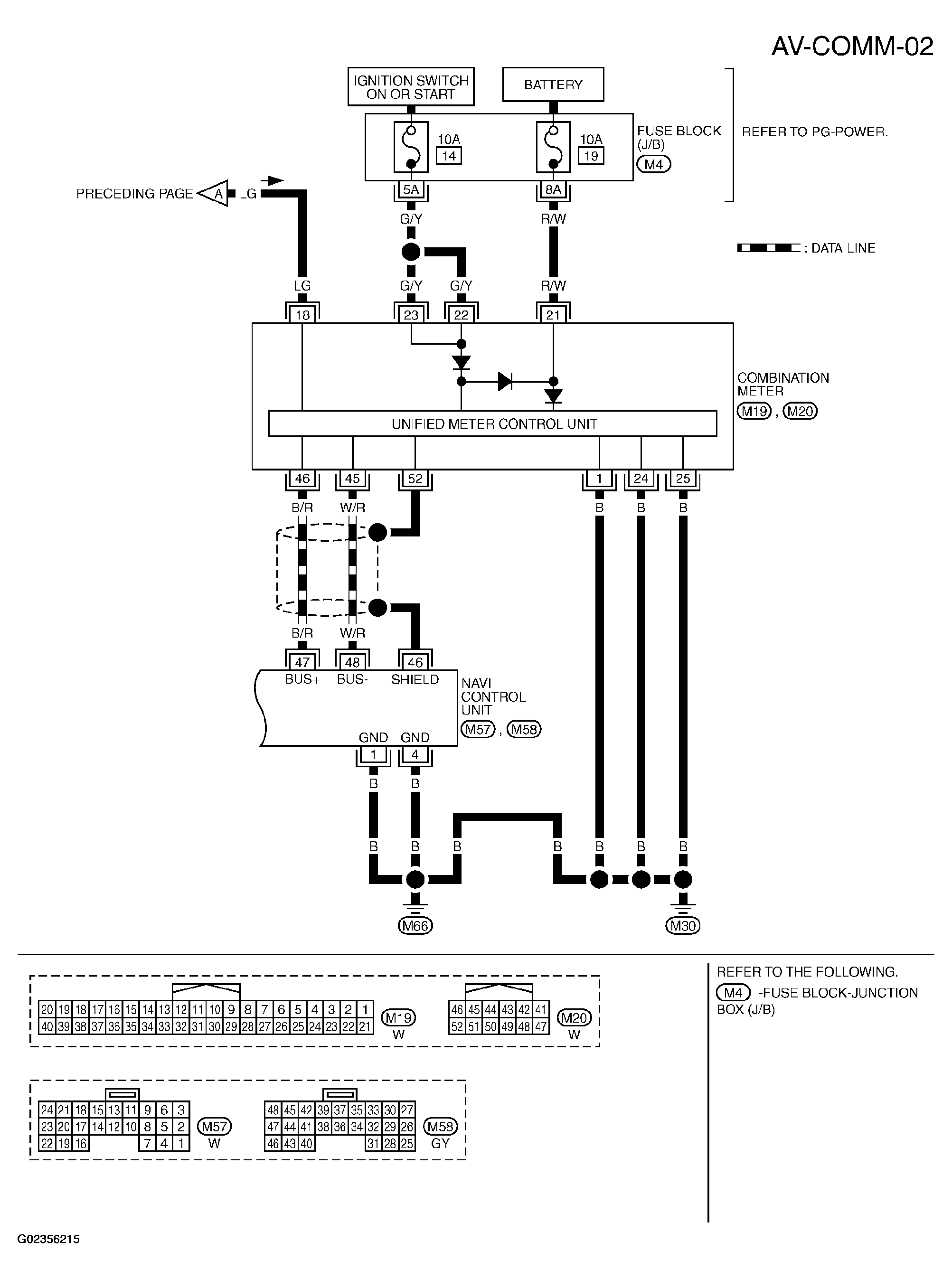

Fig 2: Wiring Diagram -COMM- AV-COMM-02
G02356215Courtesy of NISSAN MOTOR CO., U.S.A.
