Steering Wheel Audio Control Switch Resistance Check

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

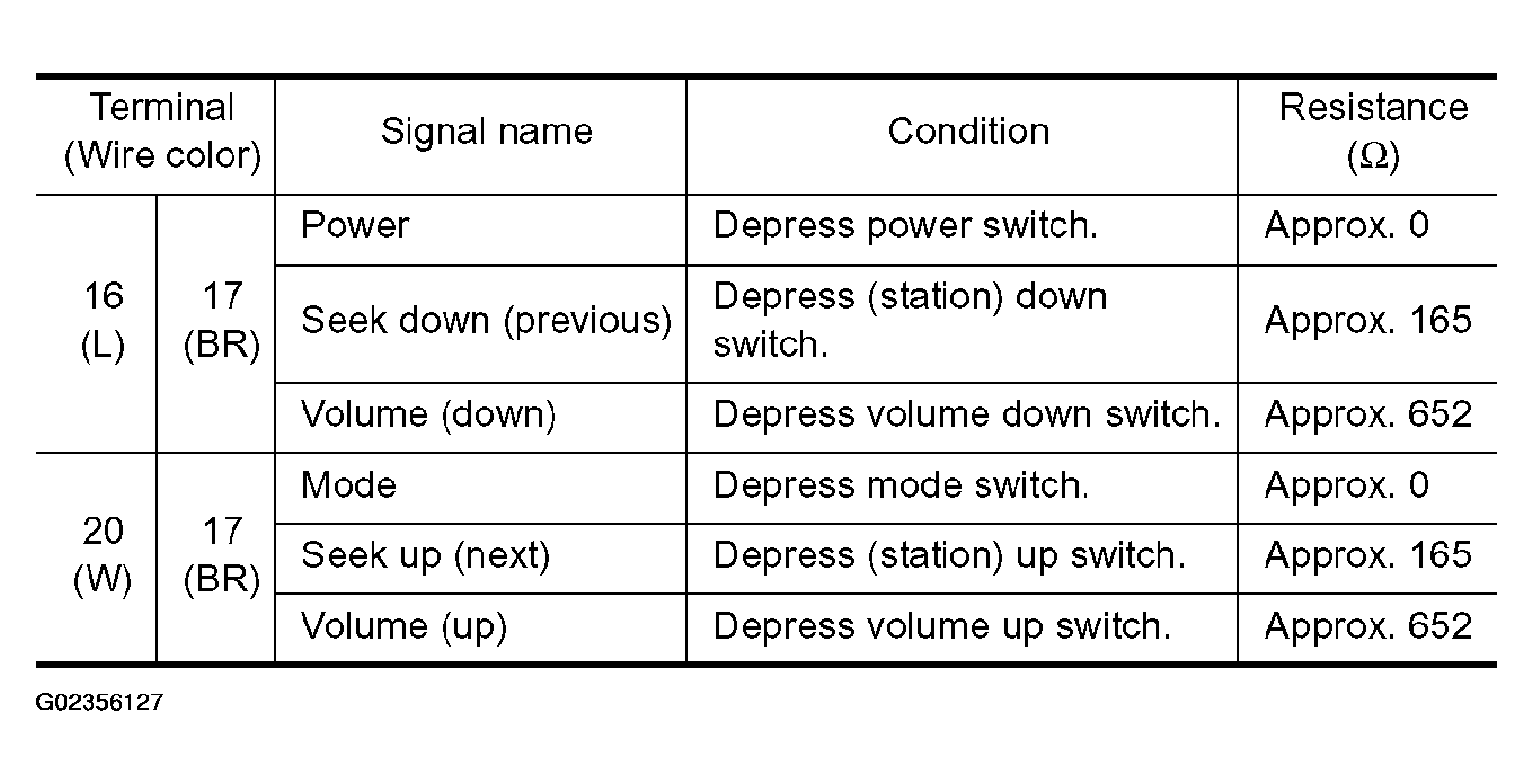

Fig 1: Steering Wheel Audio Control Switch Connector Terming 16, 17, & 20 Continuity Specifications Table
G02356127Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Steering Wheel Audio Control Switch Connector Terming 16, 17, & 20 Continuity Test
G02356128Courtesy of NISSAN MOTOR CO., U.S.A.
