Removal And Installation

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove access caps.
  2. Disconnect the connector.
  3. Remove 2 nuts and remove high-mounted stop lamp.

    Installation is in the reverse order of removal.

    High-mounted stop lamp nuts: 3.38 N.m (0.34 kg-m, 30 in-lb)

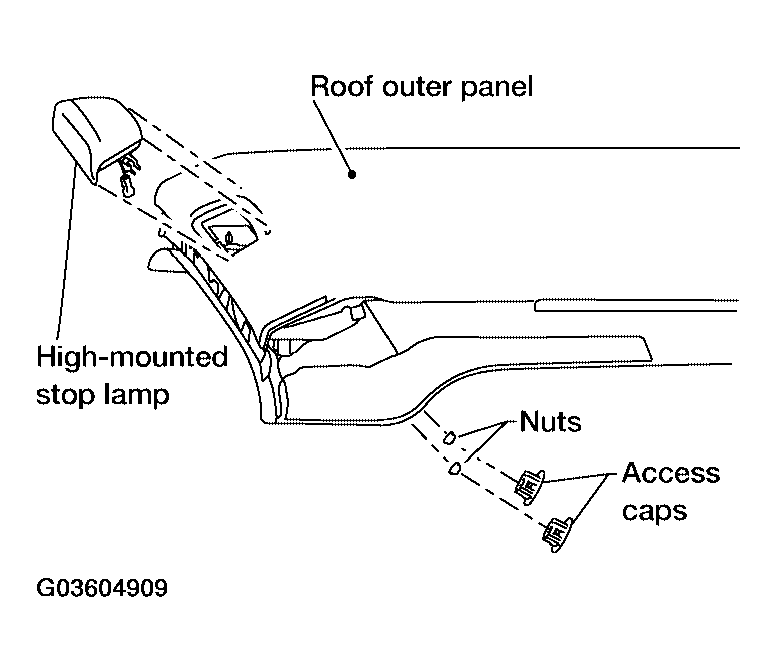

    Fig 1: Removing/Installing High-Mounted Stop Lamp
    G03604909Courtesy of NISSAN MOTOR CO., U.S.A.
