Personal Lamp 2nd Row Control Does Not Operate (Room/Map Lamps Operate)

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK EACH DOOR SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make sure switches listed in display item list turn ON-OFF linked with switch operation. Refer to "SWITCH OPERATION " for switches and their function.

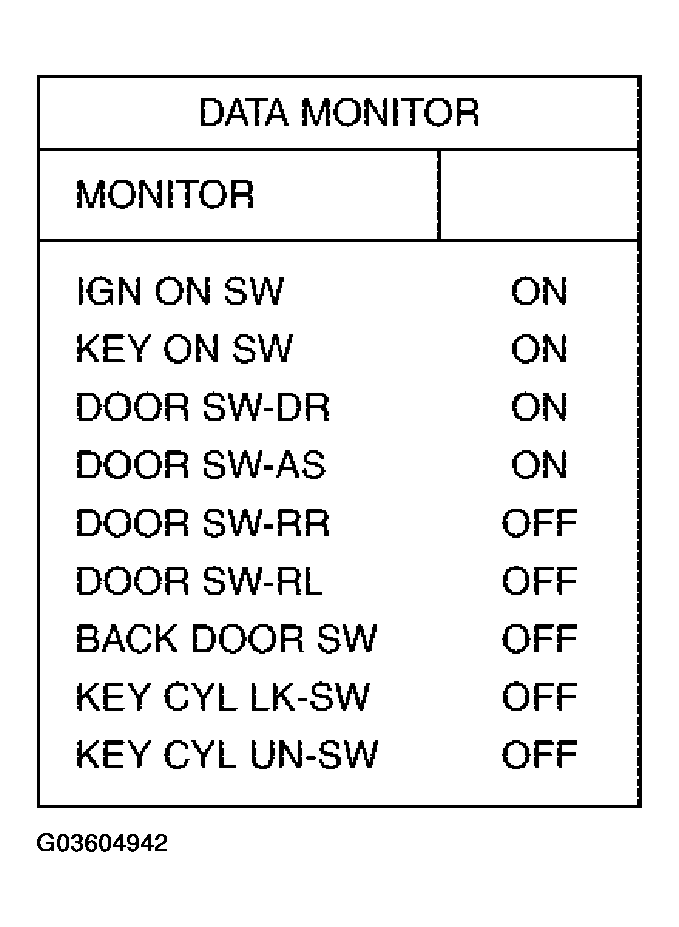

Fig 1: BCM On CONSULT-II With INT LAMP Display
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: GO TO 2.
- NG: Inspect malfunctioning door switch.
CHECK PERSONAL LAMP 2ND ROW OUTPUT
1. Turn ignition switch OFF.
2. Confirm lamp switch is in the "DOOR" position.
3. Disconnect personal lamp 2nd row connector.
4. Open any door.
5. Check voltage between personal lamp 2nd row harness connector R203 terminal 3 (R/G) and ground.
  3 (R/G) - Ground: Battery voltage should exist .
OK or NG
- OK: GO TO 3.
- NG: Repair harness or connector.
CHECK PERSONAL LAMP 2ND ROW CONTROL CIRCUIT
1. Disconnect front room/map lamp assembly connector.
2. Check continuity between front room/map lamp assembly harness connector R102 terminal 2 (R) and personal lamp 2nd row harness connector R203 terminal 1 (R).
  2 (R) - 1 (R): Continuity should exist .
OK or NG
- OK: Replace personal lamp 2nd row.
- NG: Repair harness or connector.
