ABS Motor

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ON" and "OFF" on the screen. Check that ABS motor relay operates as shown in following table.

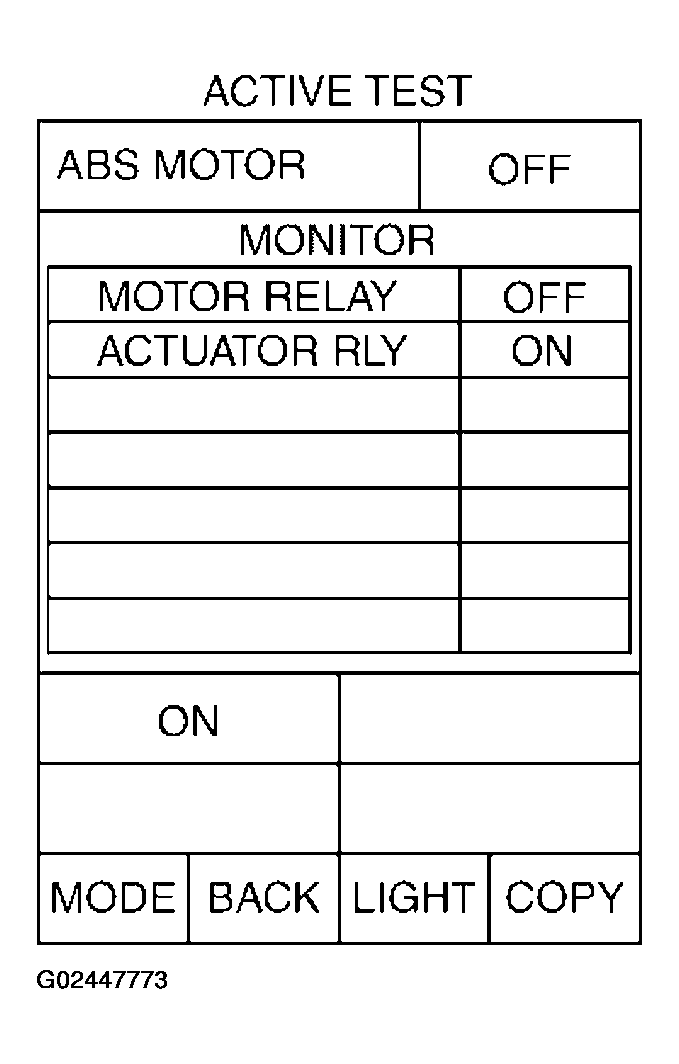

Fig 1: Displaying "ACTIVE TEST" Mode
G02447773Courtesy of NISSAN MOTOR CO., U.S.A.
ABS MOTOR OPERATION TABLE

Operation ON OFF
ABS actuator relay ON ON
ABS motor relay ON OFF
NOTE:
  • If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
  • "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
