Power Window Switch Power Supply Circuit Check

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

POWER SUPPLY CIRCUIT CHECK
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector D7 terminal 1, 10 and ground.

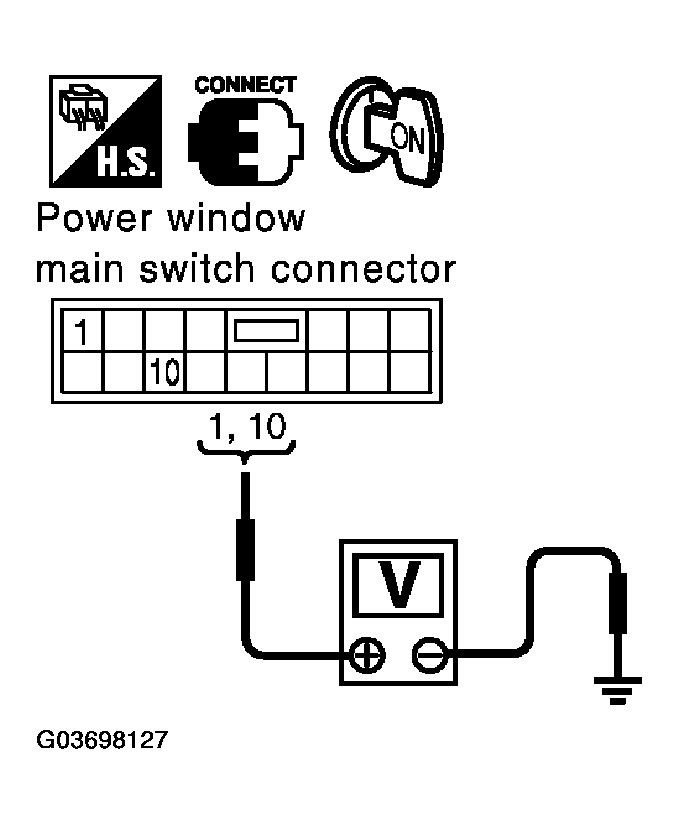

  Fig 1: Checking Voltage Between Power Window Main Switch Connector D7 Terminal 1, 10 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  1 (W) - Ground: Battery voltage

  10 (P) - Ground: Battery voltage
3. Check voltage between power window sub-switch connector D43 terminal 10 and ground.

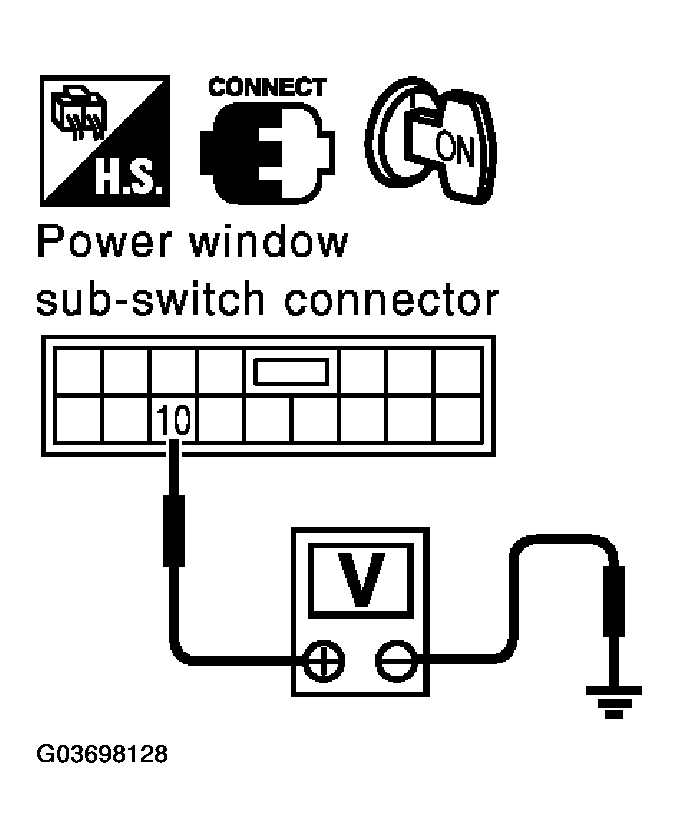

  Fig 2: Checking Voltage Between Power Window Sub-Switch Terminal 10 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  10 (W) - Ground: Battery voltage
OK or NG
1. OK: Power window switch power supply is OK.
2. NG: GO TO 2 .
CHECK POWER WINDOW SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM, power window main switch and power window sub-switch connector.
3. Check continuity between BCM connector M2 terminal 53, 54, power window main switch connector D7 terminal 1, 10, and between BCM connector M2 terminal 53, 54 and ground.

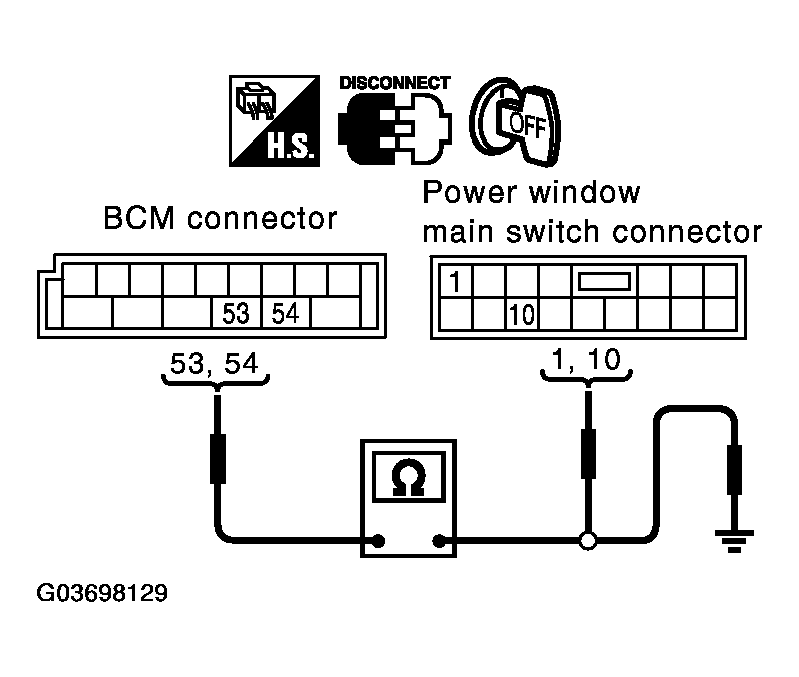

  Fig 3: Checking Continuity Between BCM Terminal 53, 54, 1, 10 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  BCM - Power window main switch

  53 (Y/B) - 10 (P): Continuity should exist.

  54 (W) - 1 (W): Continuity should exist.

  BCM - Ground

  53 (Y/B) - Ground: Continuity should not exist.

  54 (W) - Ground: Continuity should not exist .
4. Check continuity between BCM connector M2 terminal 54, power window sub-switch connector D43 terminal 10, and between BCM connector M2 terminal 54 and ground.

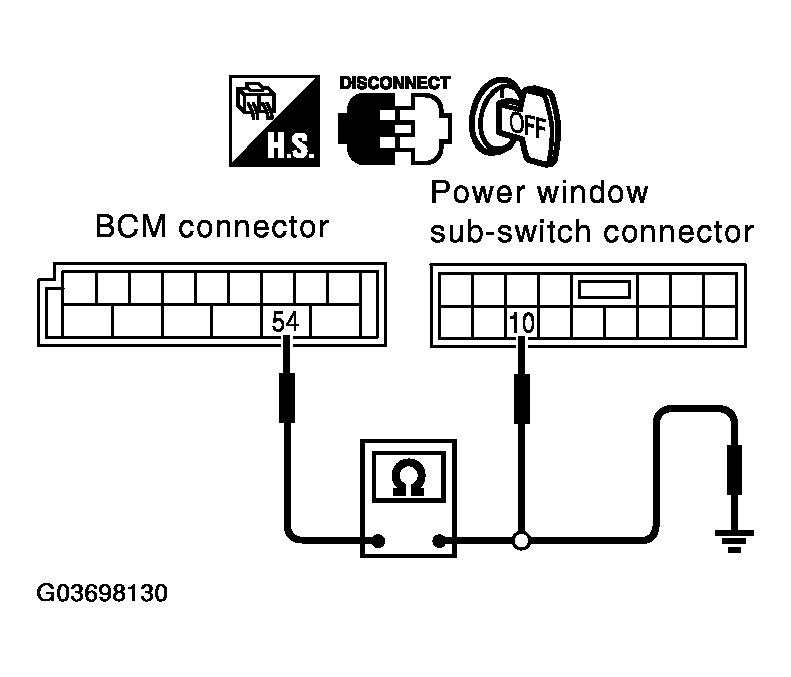

  Fig 4: Checking Continuity Between BCM Terminal 54, 10 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  BCM - Power window sub-switch

  54 (W) - 10 (W): Continuity should exist.

  BCM - Ground

  54 (W) - Ground: Continuity should not exist .
OK or NG
1. OK: GO TO 3 .
2. NG: Repair or replace harness.
CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M2 terminal 53, 54 and ground.

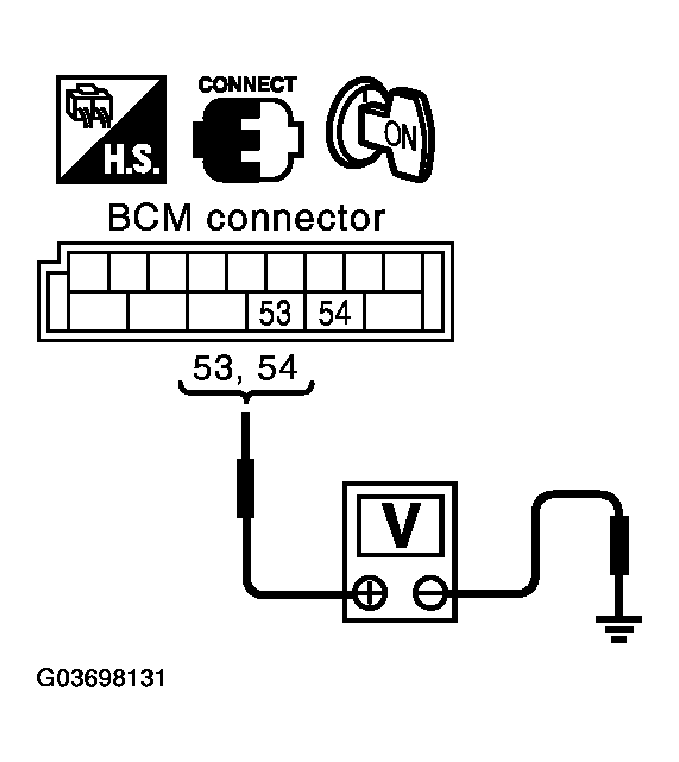

  Fig 5: Checking Voltage Between BCM Terminal 53, 54 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  53 (Y/B) - Ground: Battery voltage

  54 (W) - Ground: Battery voltage
OK or NG
1. OK: INSPECTION END
2. NG: Replace BCM.
