Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC
    1. Turn ignition switch ON. (Do not start engine.)
    2. Select "SELF-DIAG RESULTS" mode for "TRANSMISSION" with CONSULT-II.
    3. Erase self-diagnostic results. Refer to "HOW TO ERASE DTC (WITH CONSULT-II) ".
    4. Turn ignition switch OFF, and wait for 5 seconds or more.
    5. Start engine.
    6. Confirm self-diagnostic results again. Refer to "SELF-DIAGNOSTIC RESULT MODE ".

    Is the line pressure control displayed?

    1. YES: Replace TCM. Refer to "PRECAUTIONS FOR CVT ASSEMBLY REPLACEMENT ".
    2. NO: INSPECTION END

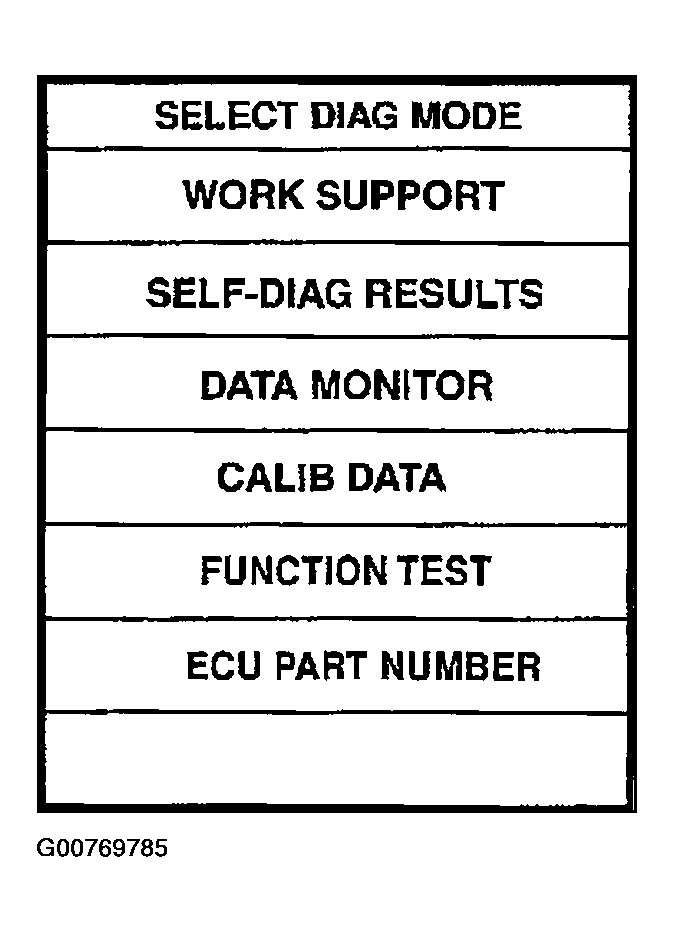

    Fig 1: SELF-DIAG RESULTS - Consult II Display
    G00769785Courtesy of NISSAN MOTOR CO., U.S.A.
