With Consult-II

  1. Turn ignition switch ON and select DATA MONITOR mode for ENGINE with CONSULT-II.
    Fig 1: DTC Confirmation Procedure With CONSULT-II (1 Of 2)
    G02016659Courtesy of NISSAN MOTOR CO., U.S.A.

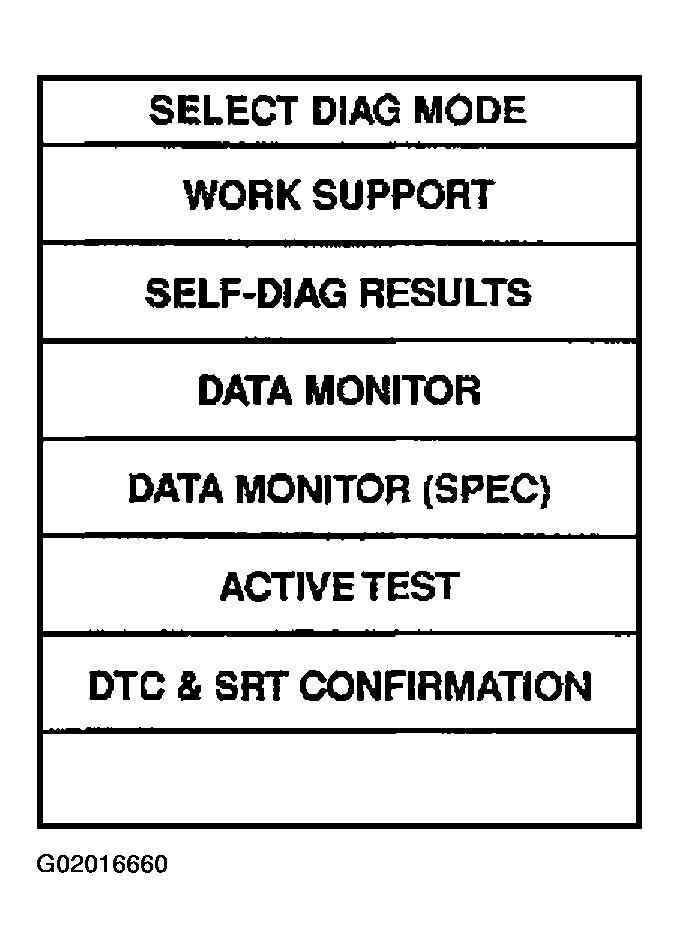

    Fig 2: DTC Confirmation Procedure With CONSULT-II (2 Of 2)
    G02016660Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)

    CMPS.RPM (REF): 450 rpm or more VHCL SPEED SE: 10 km/h (6 MPH) or more THRTL POS SEN: More than 1.2V Selector lever: D position (O/D ON)
