Operation Check

WARNING: This page is about a different variant/trim than selected.

Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.

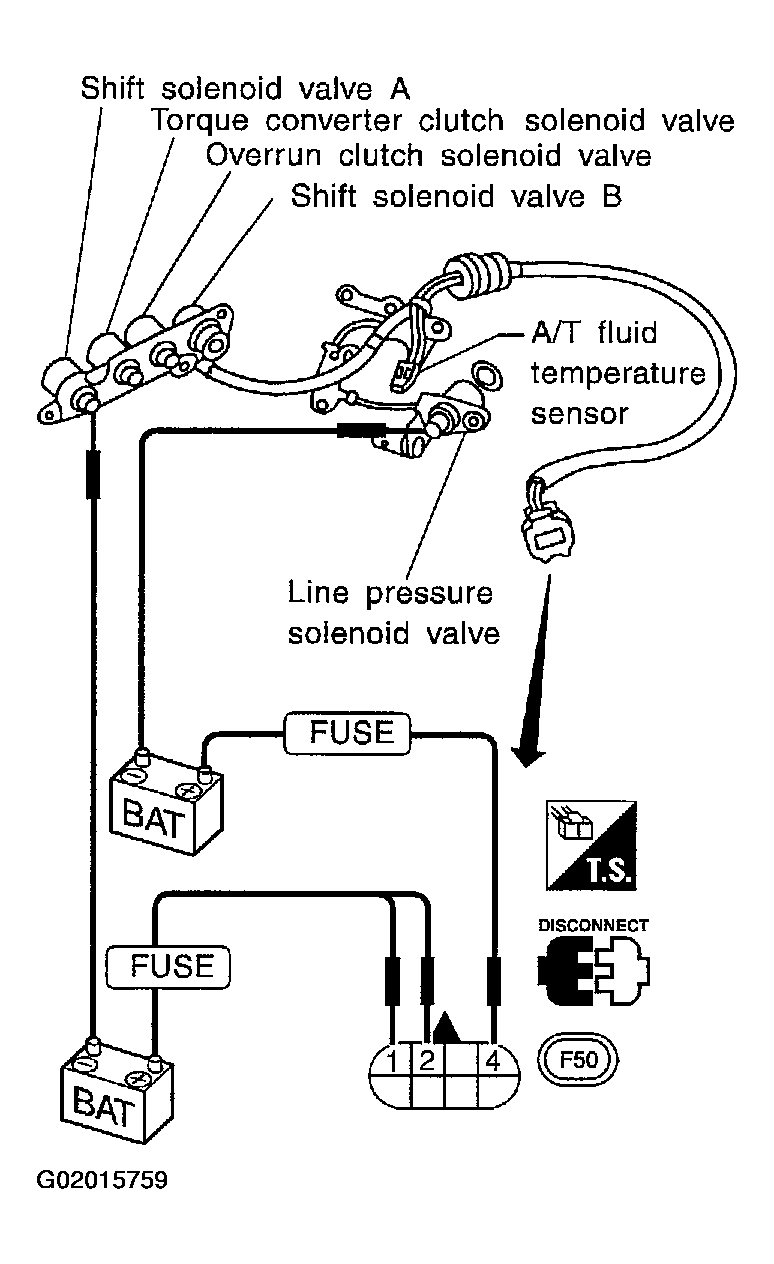

Fig 1: Checking Solenoid Valves Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
