Oil Pressure
Oil Pressure

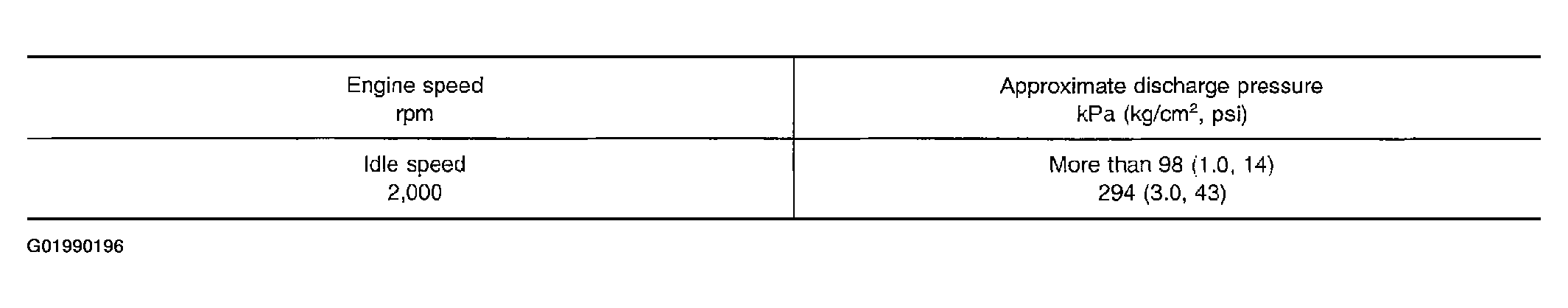

Fig 1: Oil Pressure Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
