Section 4 (Transfer Case)
>>
Removal And Installations
>>
Installation
>>
A/T Model
A/T Model
WARNING:
This page is about a different variant/trim than selected.

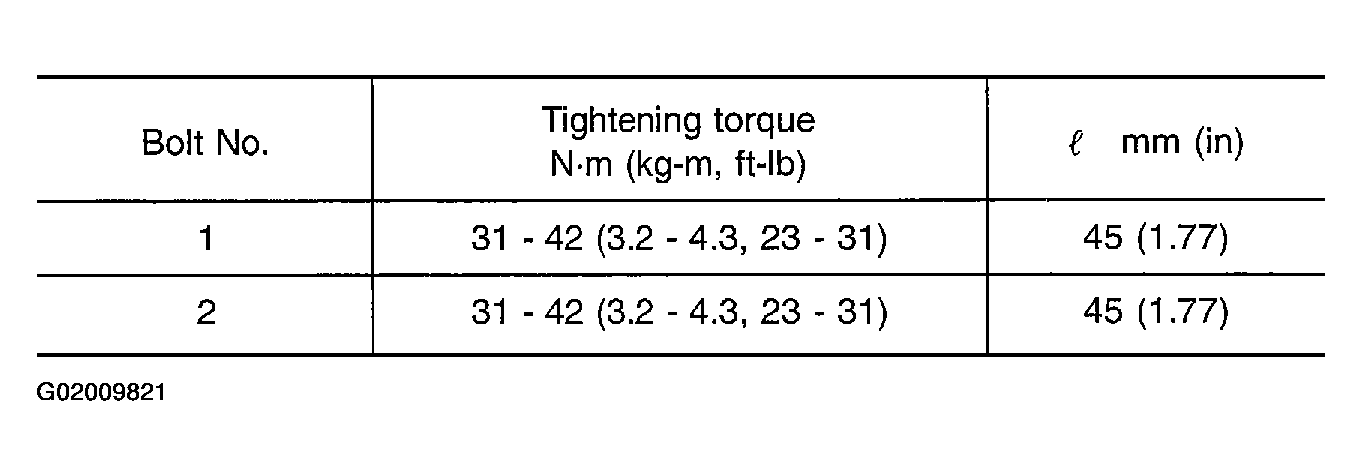

Fig 1: Bolts Tightening Torque (A/T Model) Table
Courtesy of NISSAN MOTOR CO., U.S.A.

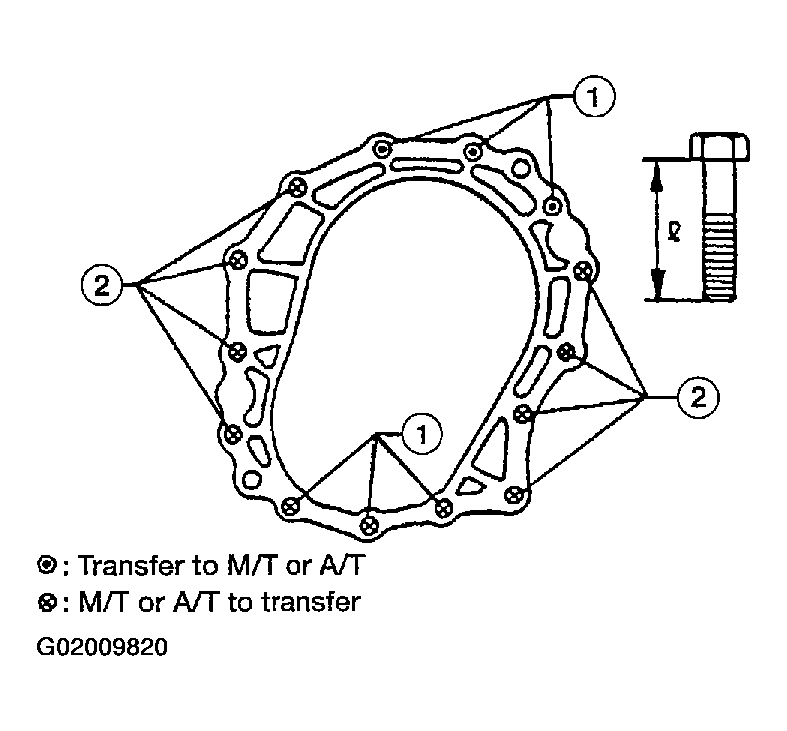

Fig 2: Tightening Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust the torsion bars for the correct vehicle height. Refer to INSTALLATION AND ADJUSTMENT .
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
