Transfer Gear Control

WARNING: This page is about a different variant/trim than selected.

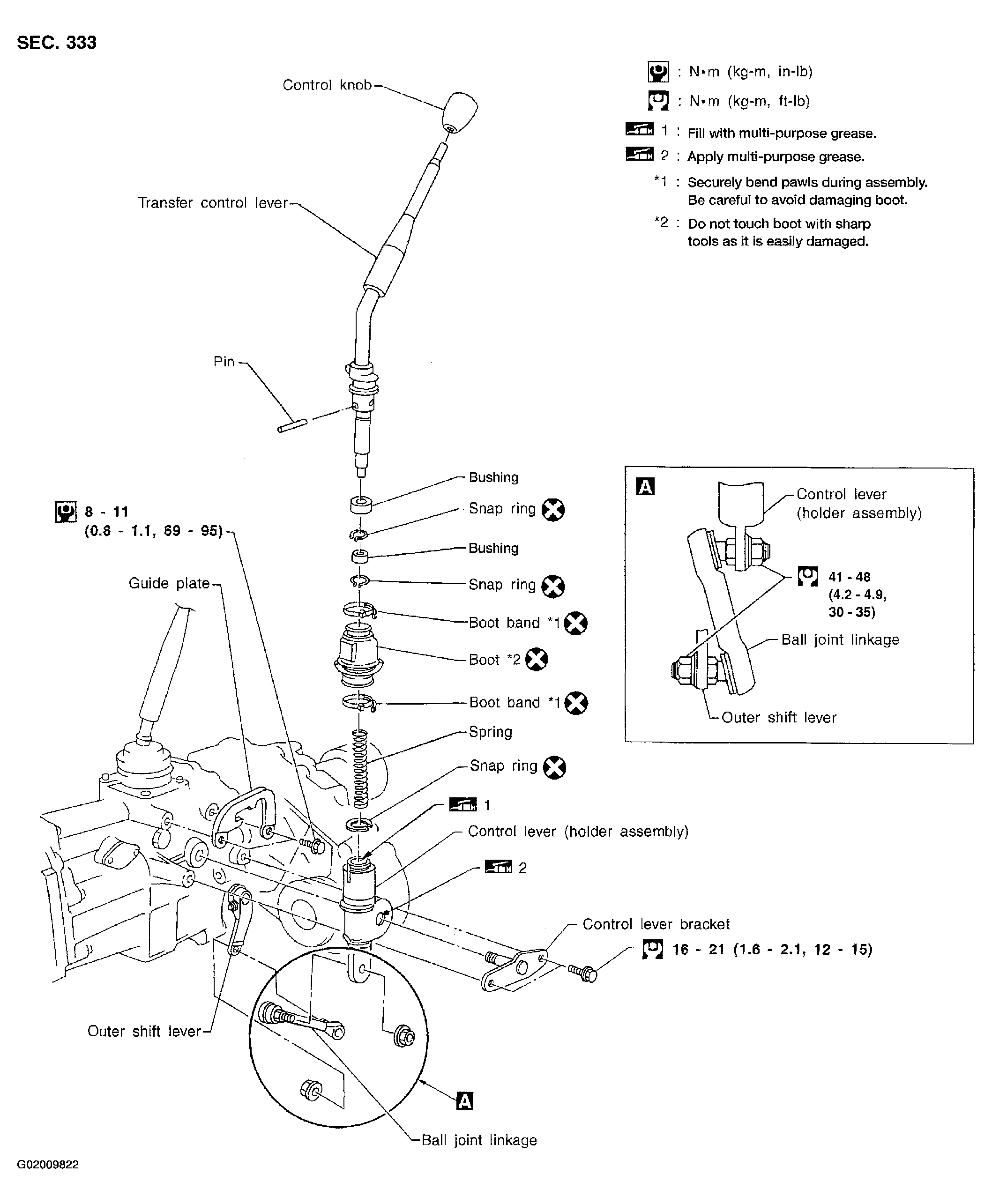

Fig 1: Exploded View Of Transfer Gear Control

G02009822

Courtesy of NISSAN MOTOR CO., U.S.A.
