Component Location

The following illustrations are provided to assist in locating components for which removal and installation procedures are not provided. See Fig 1-Fig 8 .

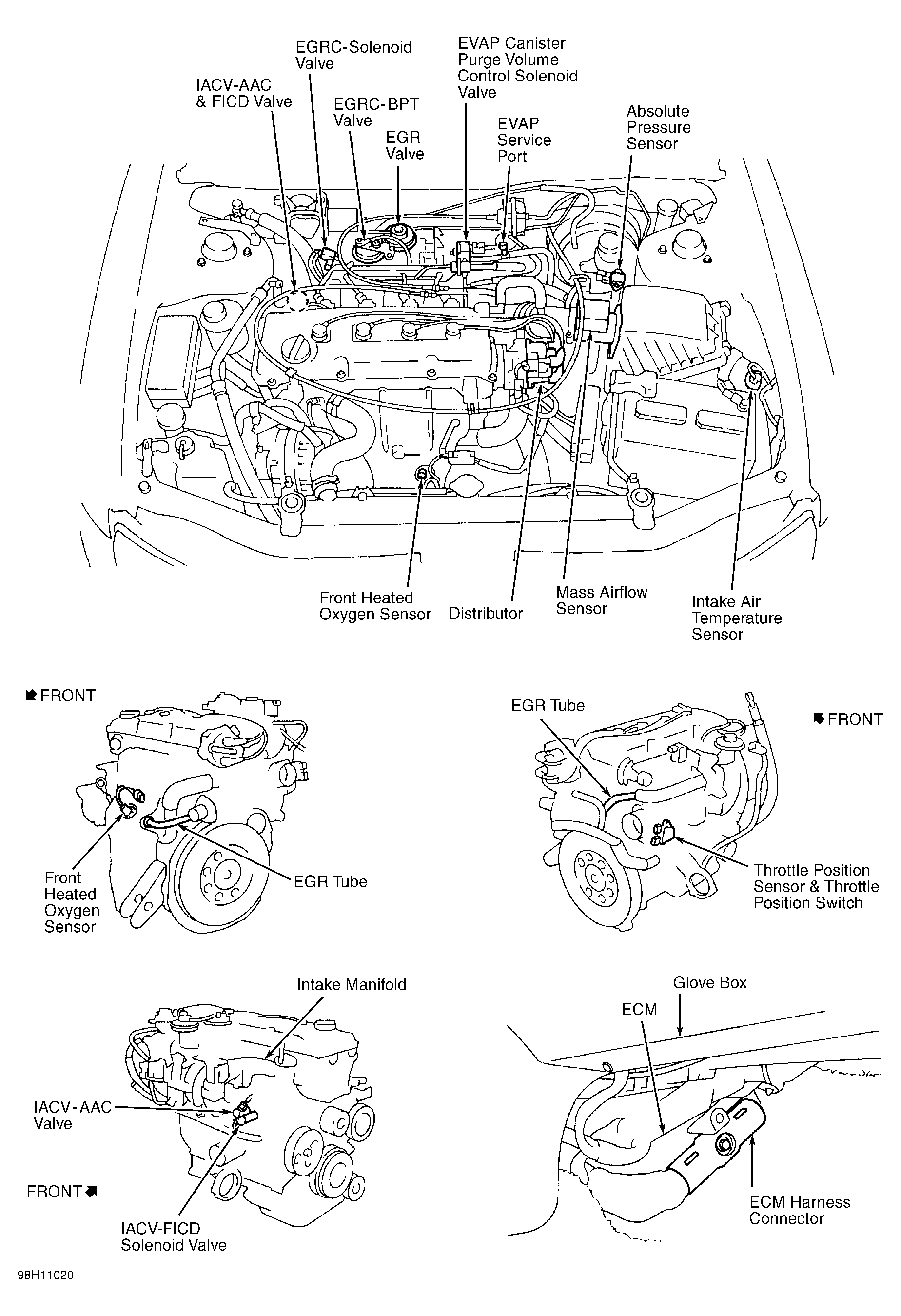

Fig 1: Locating Engine Control System Components (Maxima)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

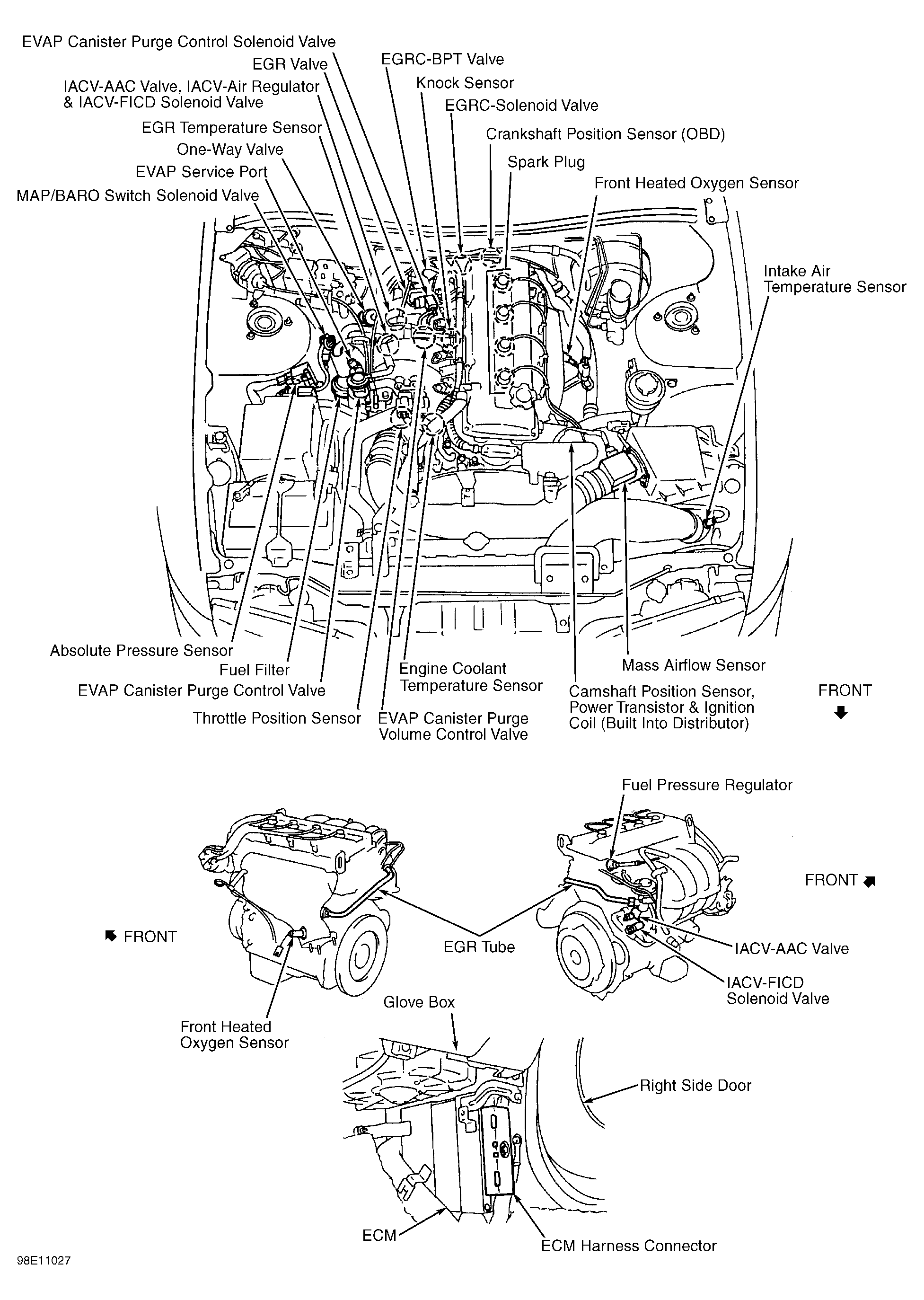

Fig 2: Locating Engine Control System Components (Frontier)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

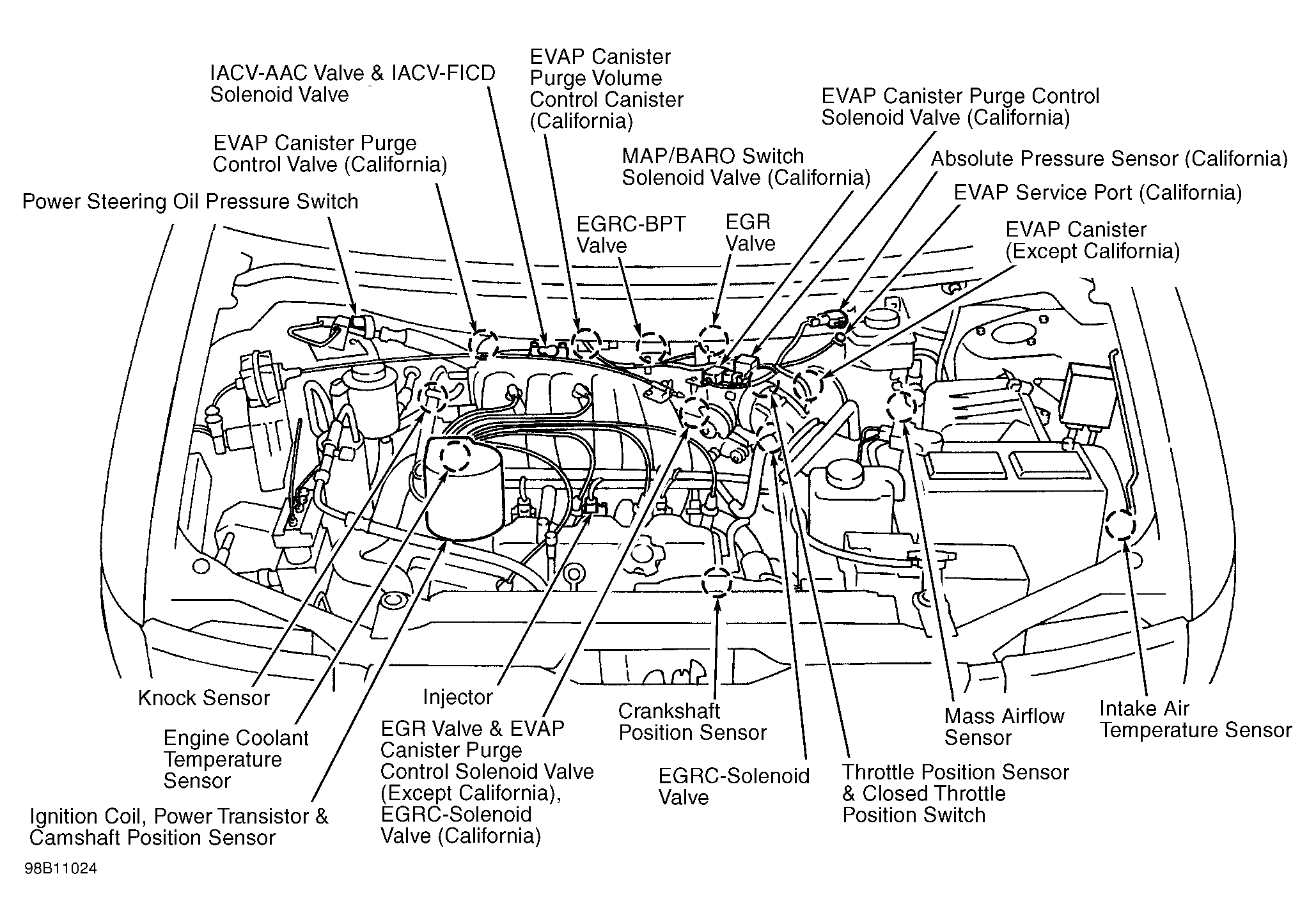

Fig 3: Locating Engine Control System Components (Altima)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

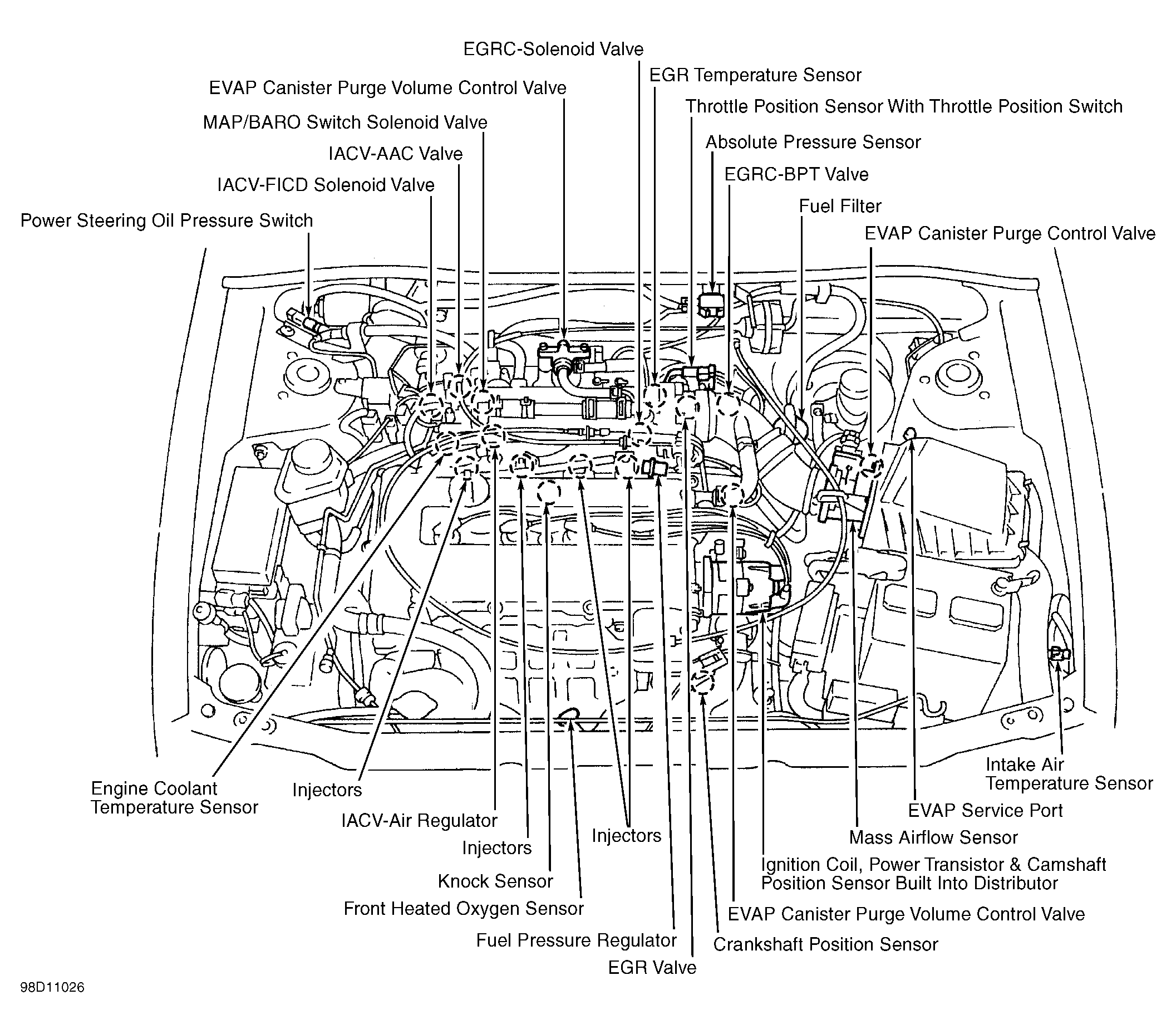

Fig 4: Locating Engine Control System Components (Pathfinder & QX4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

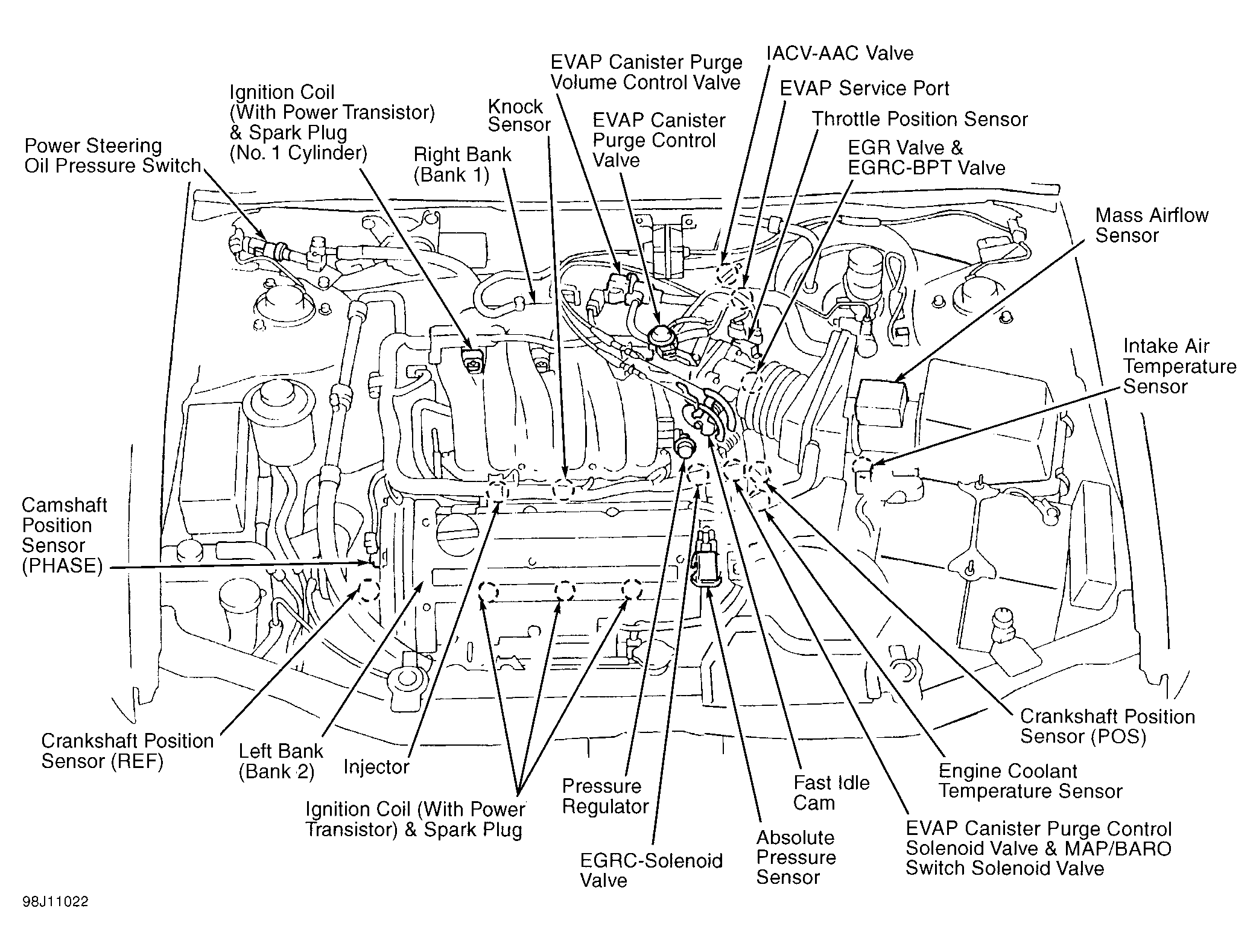

Fig 5: Locating Engine Control System Components (Quest)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

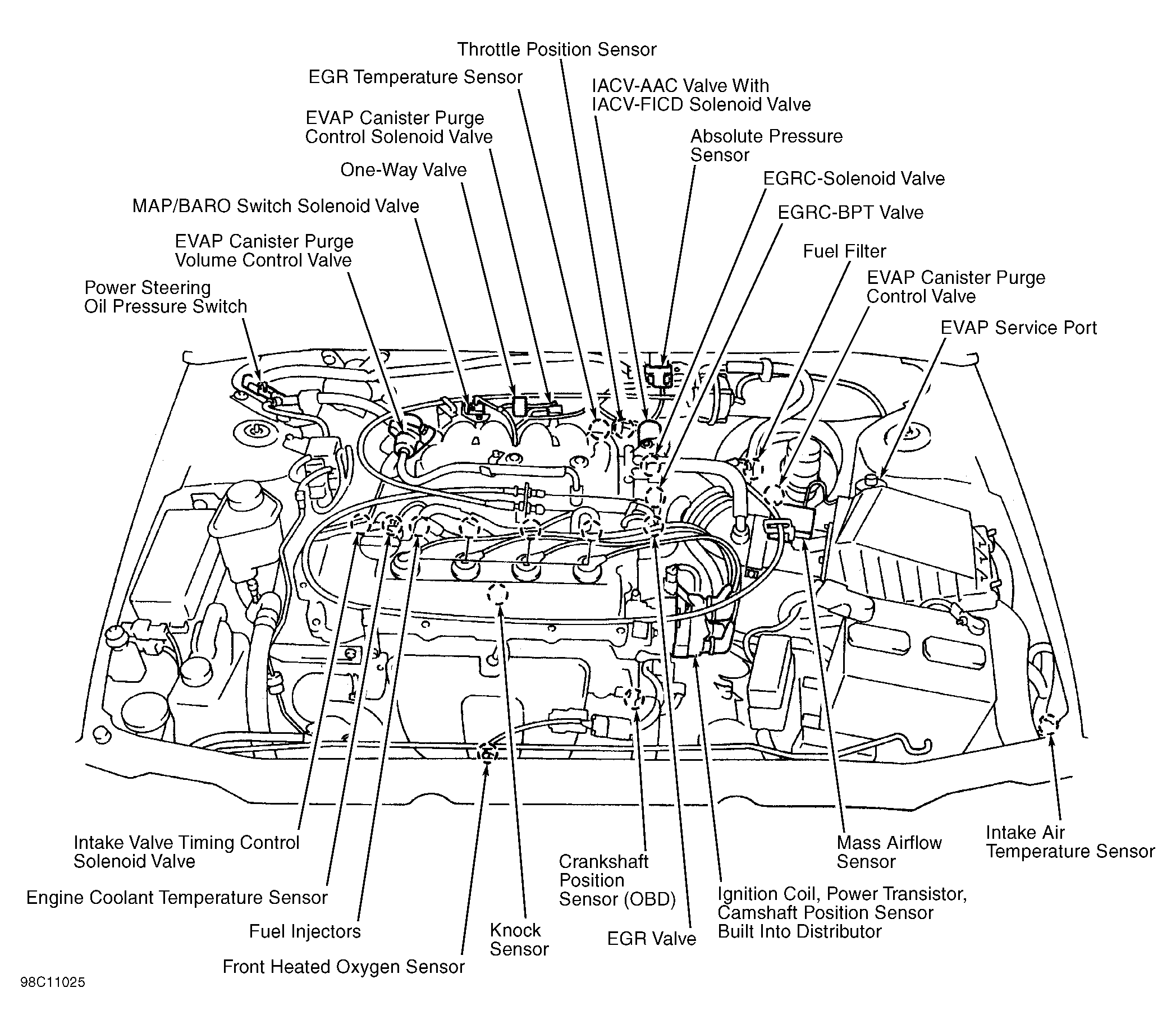

Fig 6: Engine Control System Components (Sentra & 200SX - 1.6L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

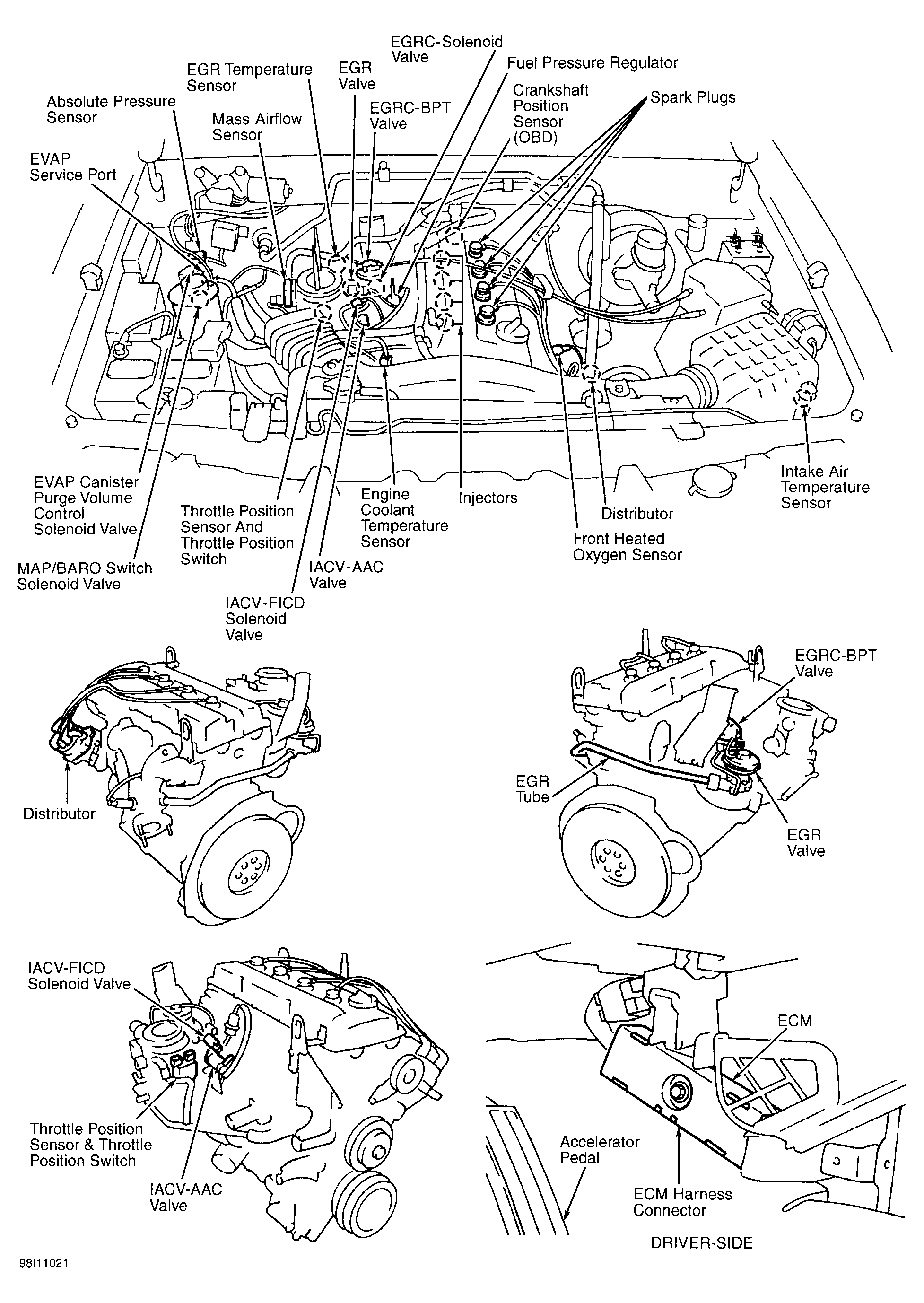

Fig 7: Engine Control System Components (Sentra & 200SX - 2.0L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Locating Engine Control System Components (240SX)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
