Engine Controls - Tests W/Codes 3.0L
>>
Connector Identification
>>
ECM Harness Connector
ECM Harness Connector
NOTE:
To locate and identify ECM connector terminals refernced in CIRCUIT TESTS, see
Fig 1
and
Fig 2
.

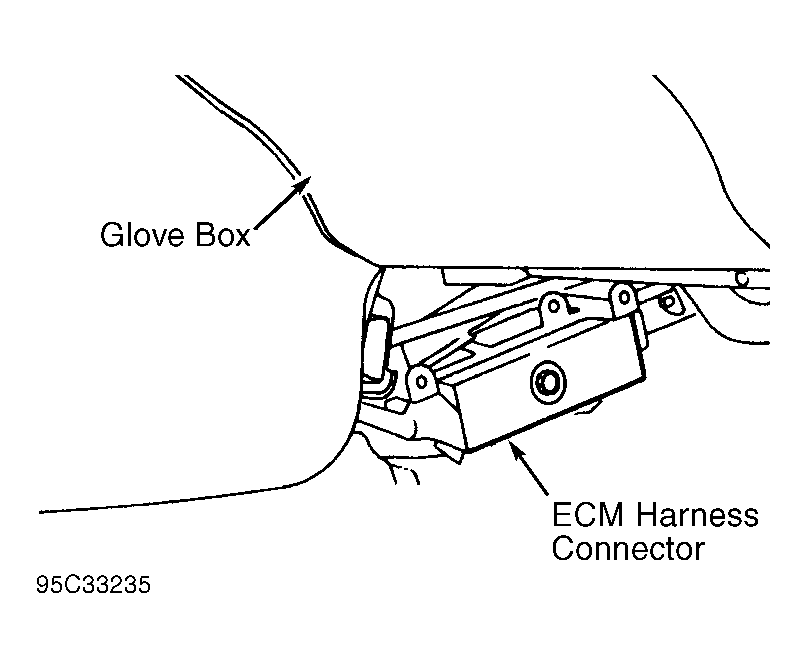

Fig 1: Locating ECM Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: ECM Wiring Harness Connector Terminals (As Viewed From Harness Side Of Connector)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
