DTC 32 - EGR Function
- Check EGR Valve Operation
Apply vacuum to EGR valve. If EGR functions correctly, go to next step. If EGR valve does not function correctly, repair or replace as necessary.
- Check Vacuum Source To EGR Valve
Start engine and warm to operating temperature. Disconnect hose from EGRC solenoid valve and check vacuum. See Fig 1
. Vacuum should not be present. Raise engine speed to about 2000 RPM and check vacuum. Vacuum should be present. If vacuum is as specified, go to next step. If vacuum is not as specified, check vacuum hose and throttle body vacuum port. Repair or replace as necessary.
- Check ECM Output Signal
Start engine. Connect voltmeter between ECM terminal No. 102 (Brown wire) and ground. See Figure
. At idle, voltmeter should be read 0.7-0.8 volt. At less than 3000 RPM, voltmeter should read battery voltage. If voltage is not as specified, go to next step. If voltage is as specified, go to step 5).
- Check Power Supply
Turn ignition on. Measure voltage between EGR solenoid valve harness connector terminal "b" and ground. See Fig 2
. If battery volt age is present, go to next step. If battery voltage is not present, repair wiring harness and/or connectors as necessary.
- Check Ground Circuit
Turn ignition off. Disconnect ECM and EGRC wiring harness connector. See Figure
. Measure resistance between ECM terminal No. 102 (Brown wire) and EGRC harness connector terminal "a" (Brown wire). See Figure
and Fig 3
. If resistance is about zero ohms, go to next step. If resistance is not about zero ohms, repair circuit or connector as necessary.
- Check Component
Check EGRC solenoid valve. Also check EGR temperature sensor. See the SYSTEM/COMPONENT TESTS
article. Repair or replace as necessary and perform FINAL CHECK
.

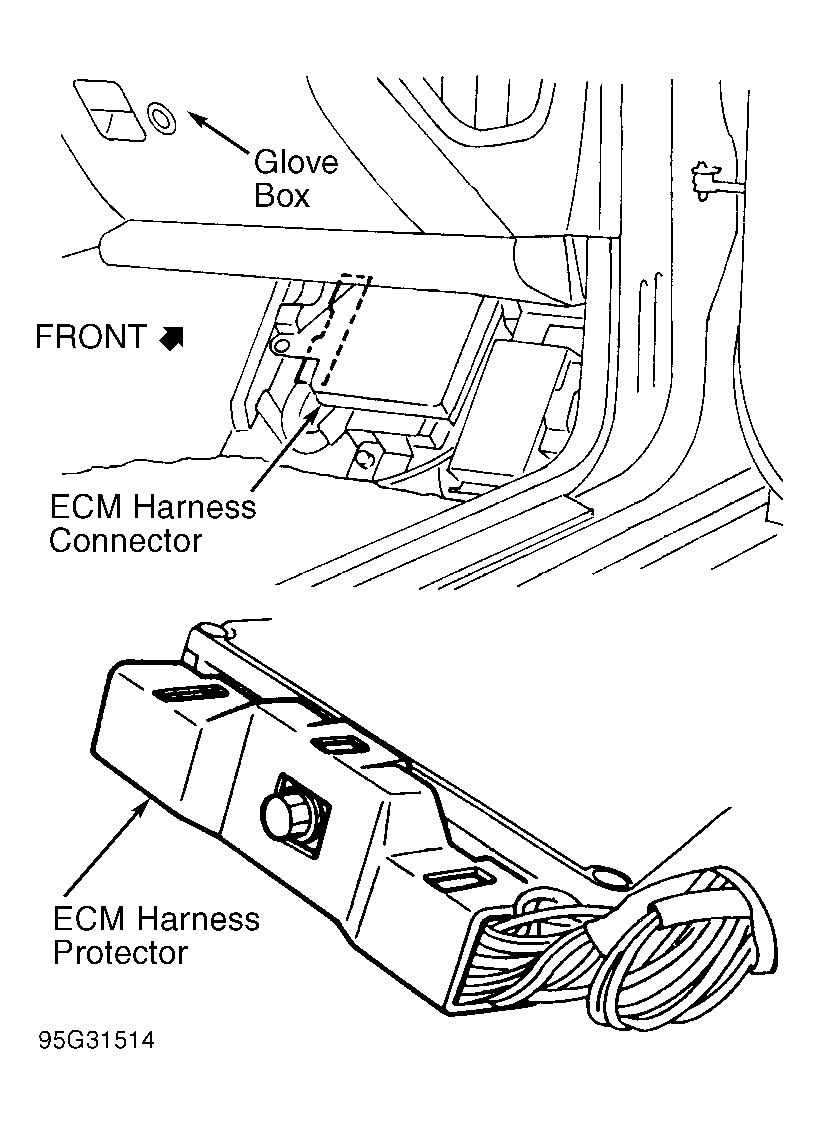

Courtesy of NISSAN MOTOR CO., U.S.A.
