Check Input Signal Circuit

Turn ignition off. Disconnect ECM harness connector and A/T control unit harness connector. See Figure and Fig 1 . Ensure continuity is present between following terminals. See Fig 2 .

• A/T control unit connector terminal No. 10 (Brown/Yellow wire) and ECM connector terminal No. 42 (Brown/Yellow wire).
• A/T control unit connector terminal No. 11 (Green/Orange wire) and ECM connector terminal No. 44 (Green/Orange wire).
• A/T control unit connector terminal No. 12 (Green/Yellow wire) and ECM connector terminal No. 12 (Green/Yellow wire).

If continuity is present, perform FINAL CHECK in this article. If continuity is not present, check connectors between ECM and A/T control unit. Repair harness or connectors as necessary and perform FINAL CHECK in this article.

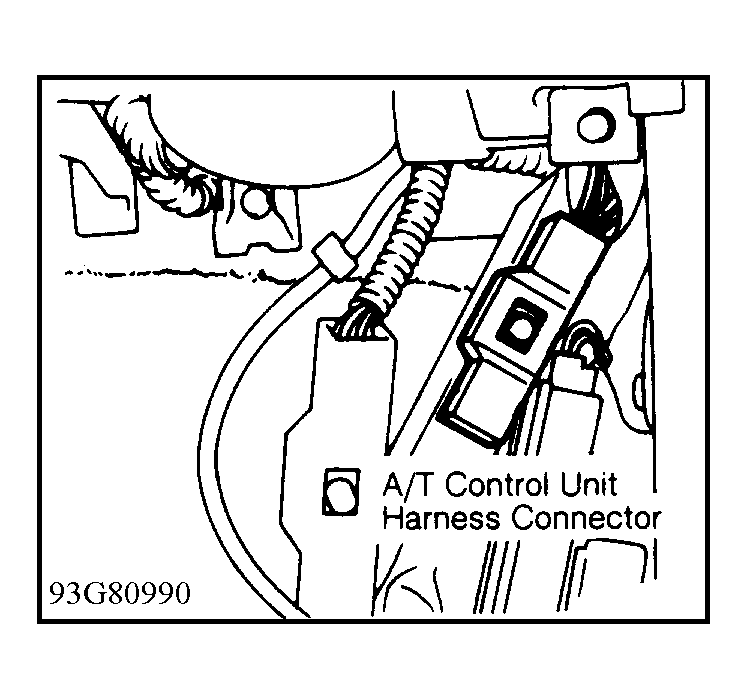

Fig 1: Locating A/T Control Unit Connector (240SX)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: DTC 54, Checking Input Signal Circuit (240SX)

Courtesy of NISSAN MOTOR CO., U.S.A.
