Home >> Nissan-Datsun >> 1992 >> Maxima SE, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Connector Identification

Connector Identification

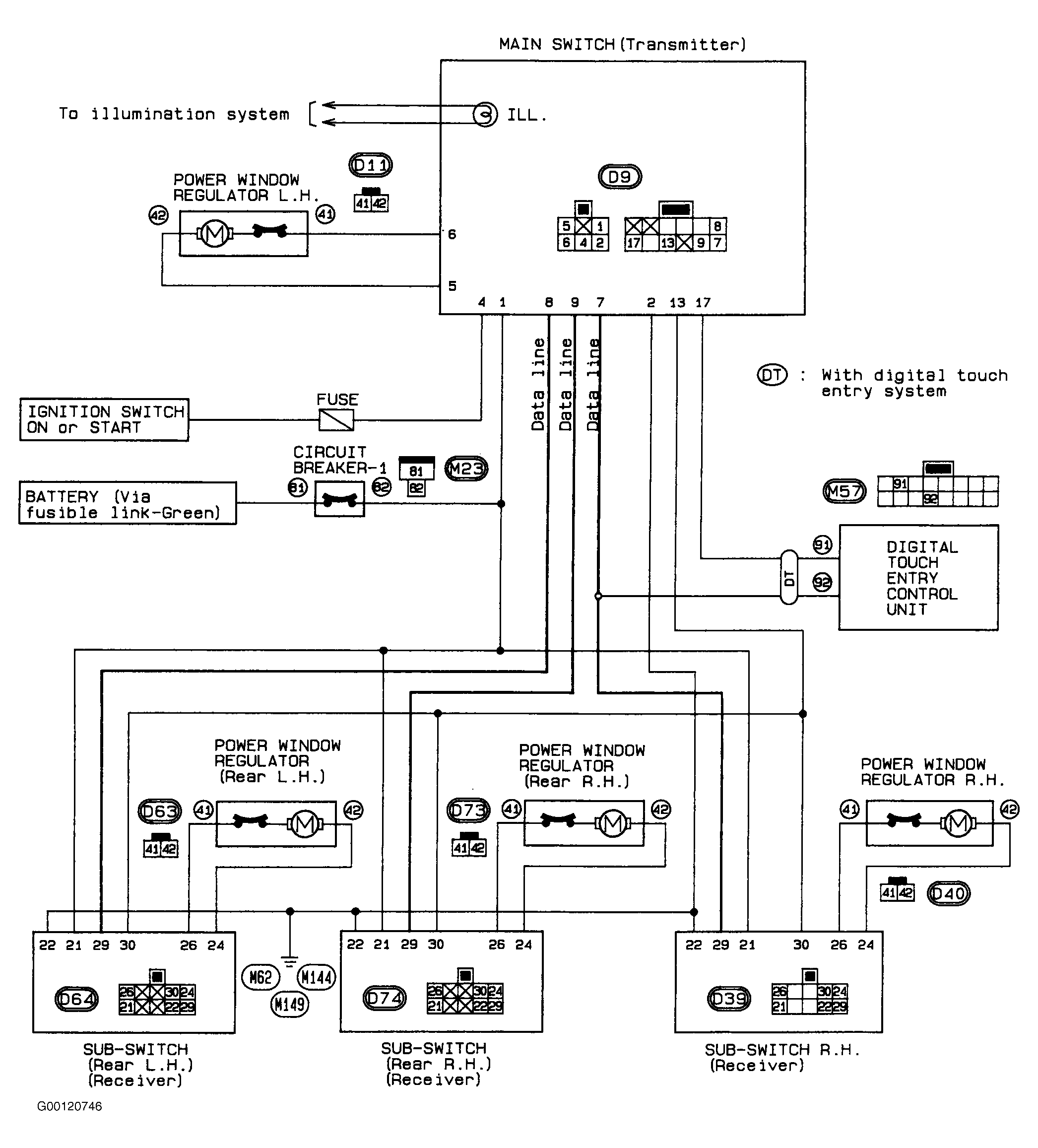

For connector and terminal identification, see Figure .
