Vehicle Speed Sensor (Switch On/Off Diagnosis)

Fig 1: Test O, Maxima, 200SX-SE & 300ZX

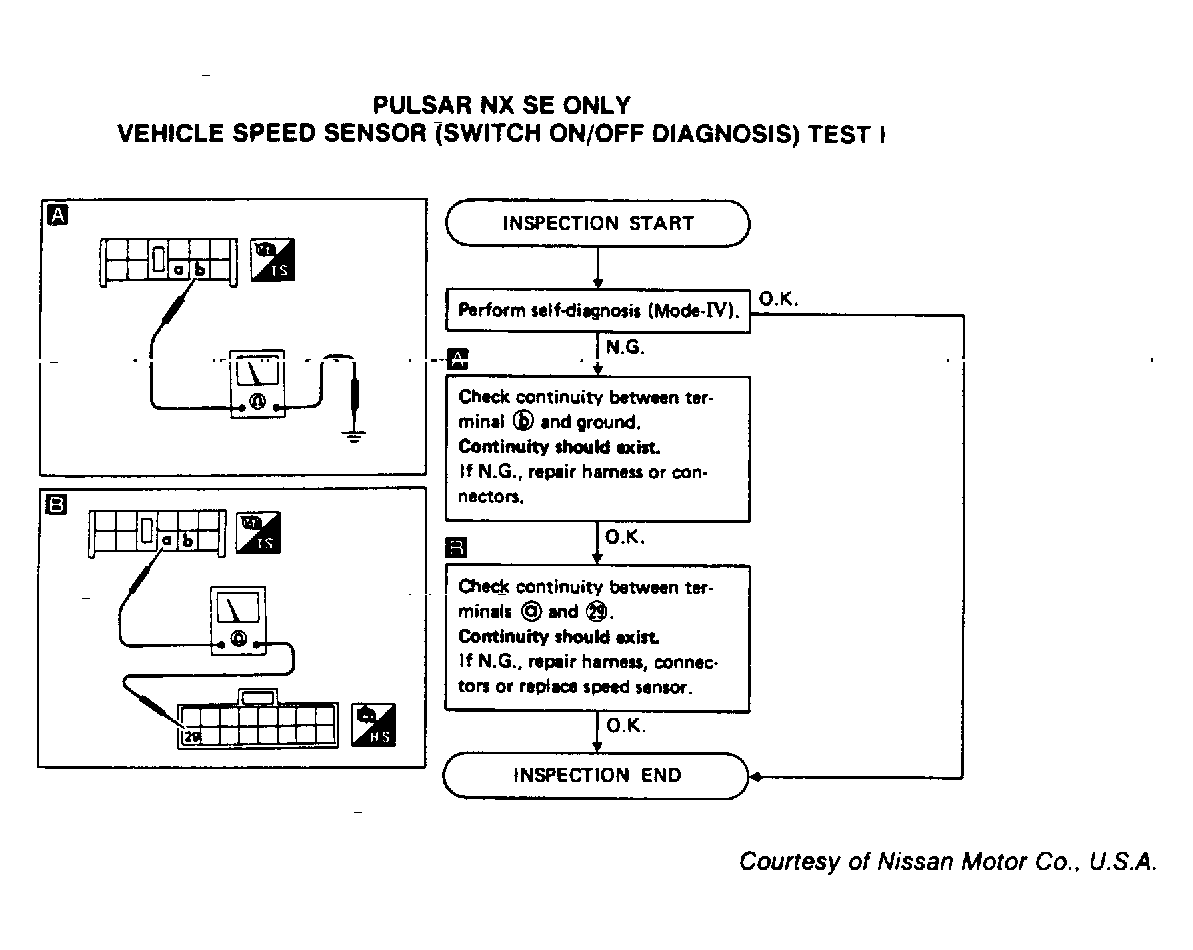

Fig 2: Test I, Pulsar NX SE

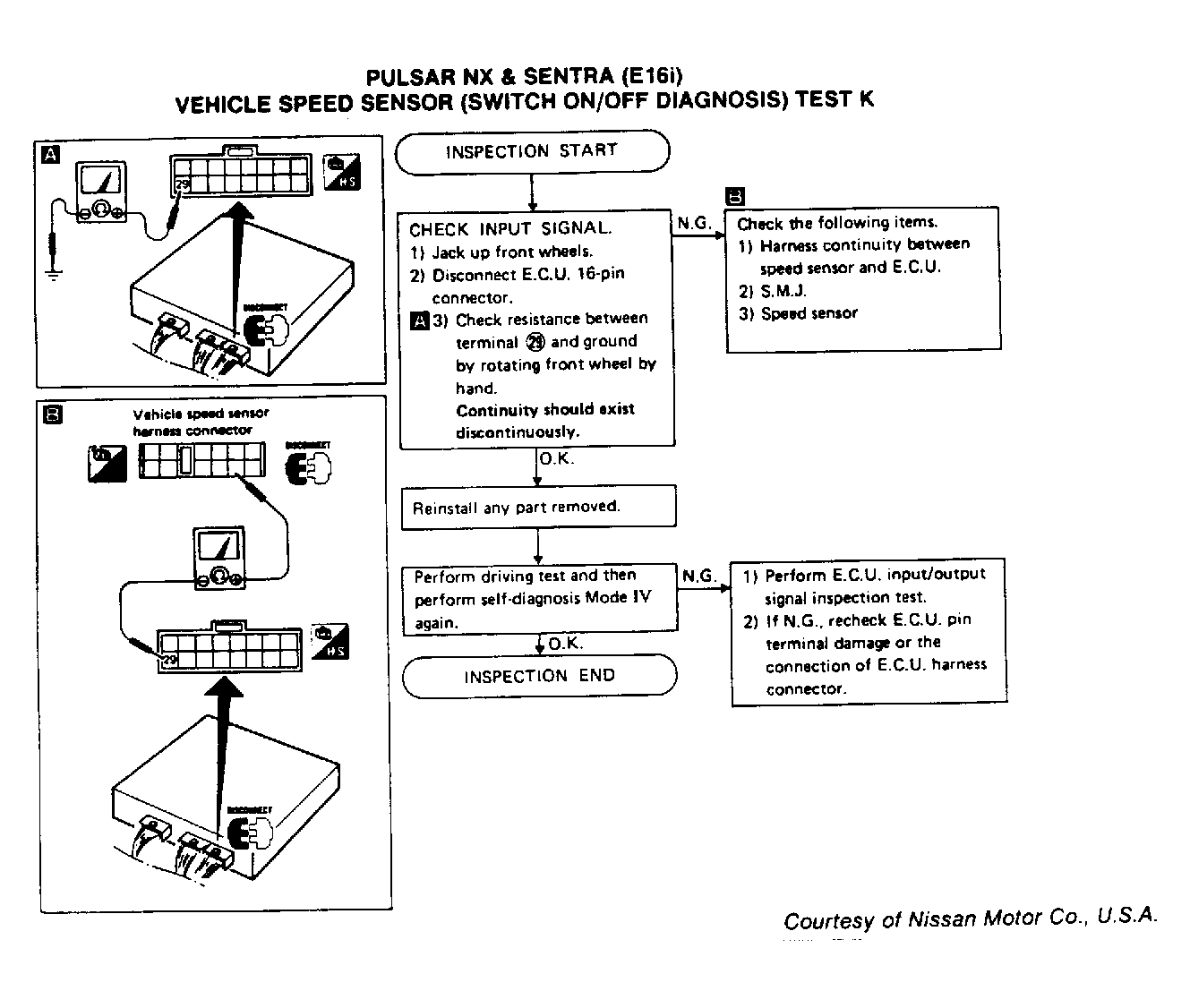

Fig 3: Test K, Pulsar NX & Sentra (E16i)

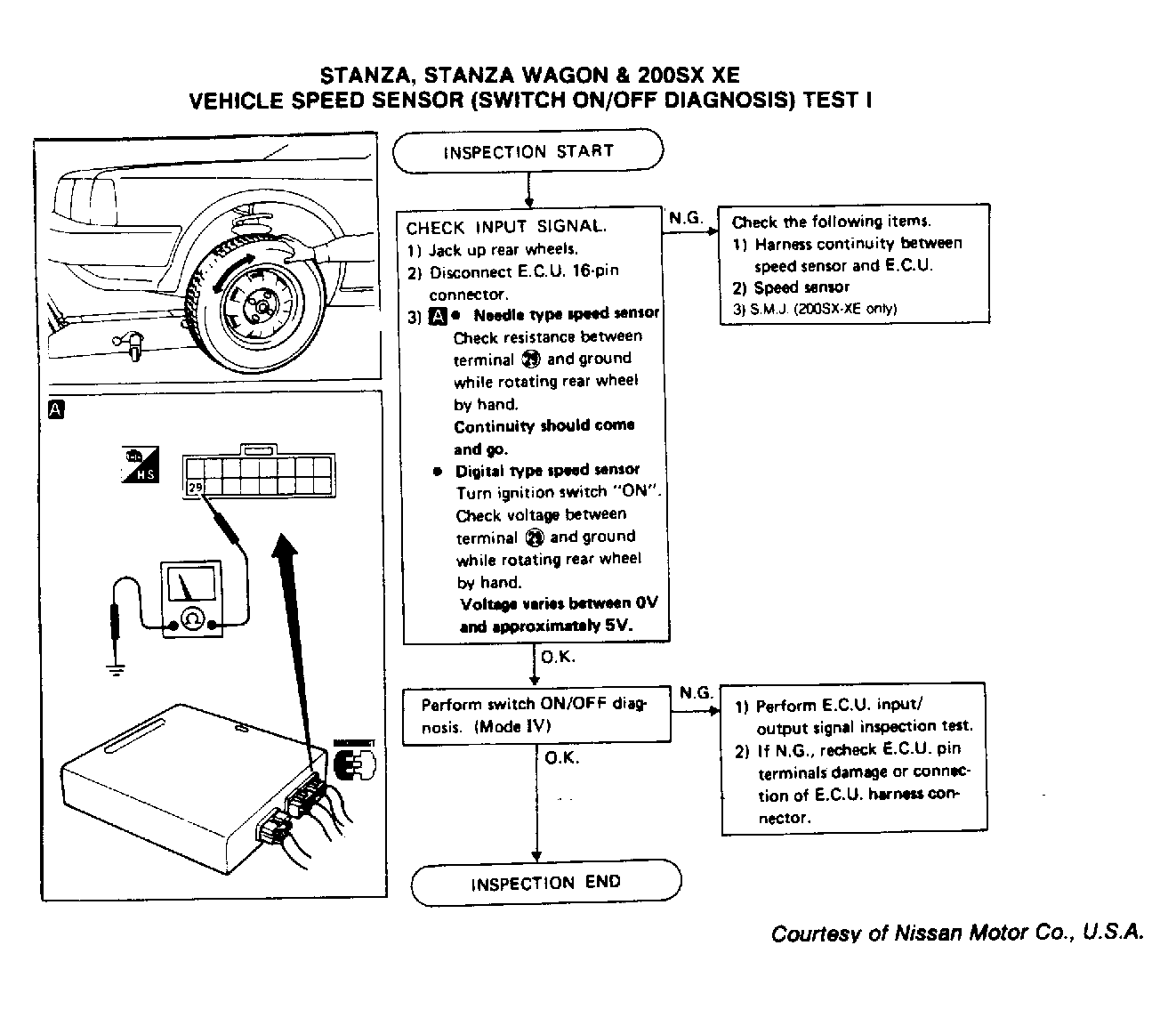

Fig 4: Test I, Stanza, Stanza Wagon & 200SX XE

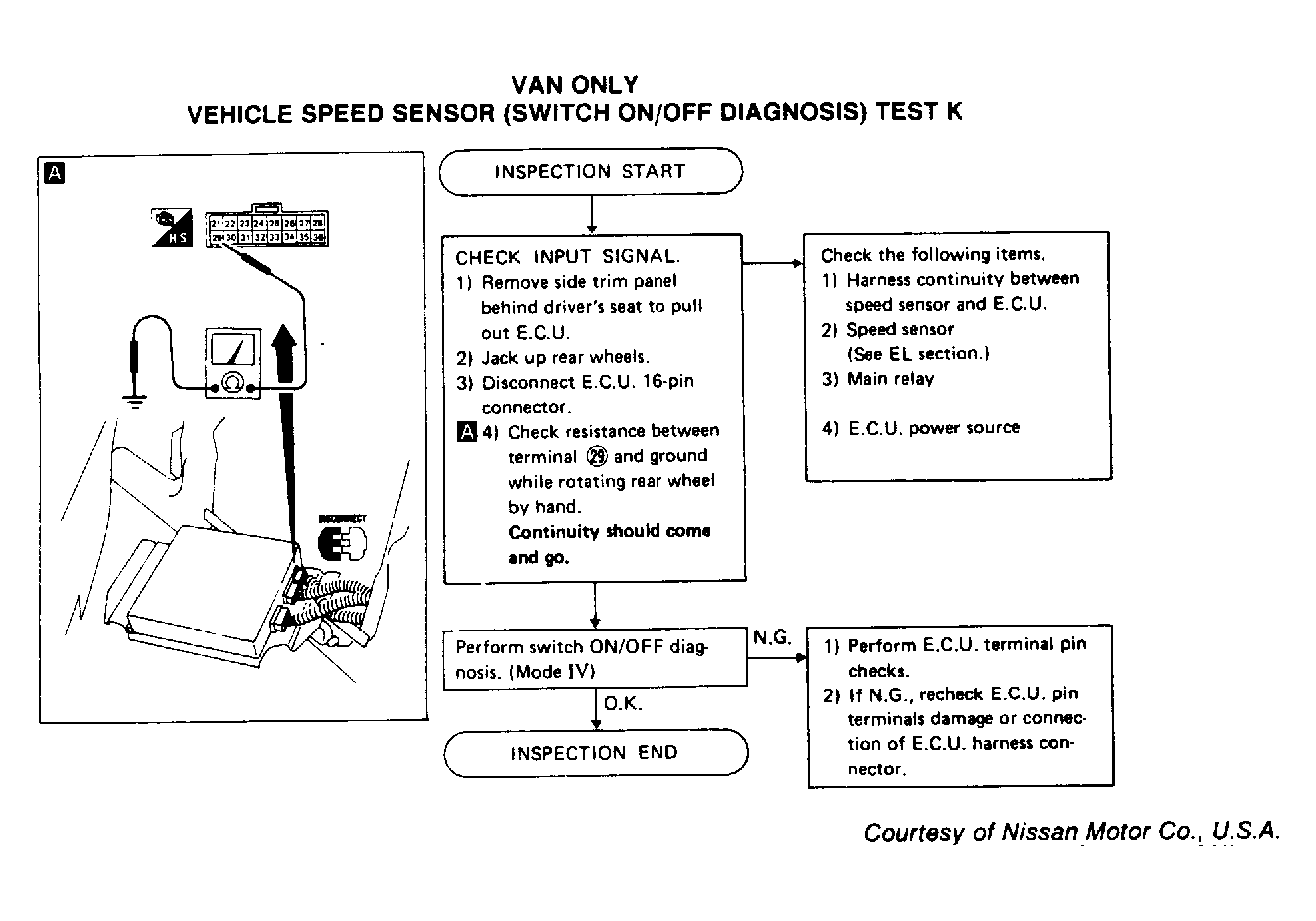

Fig 5: Test K, Van
