Start Signal (Switch On/Off Diagnosis)

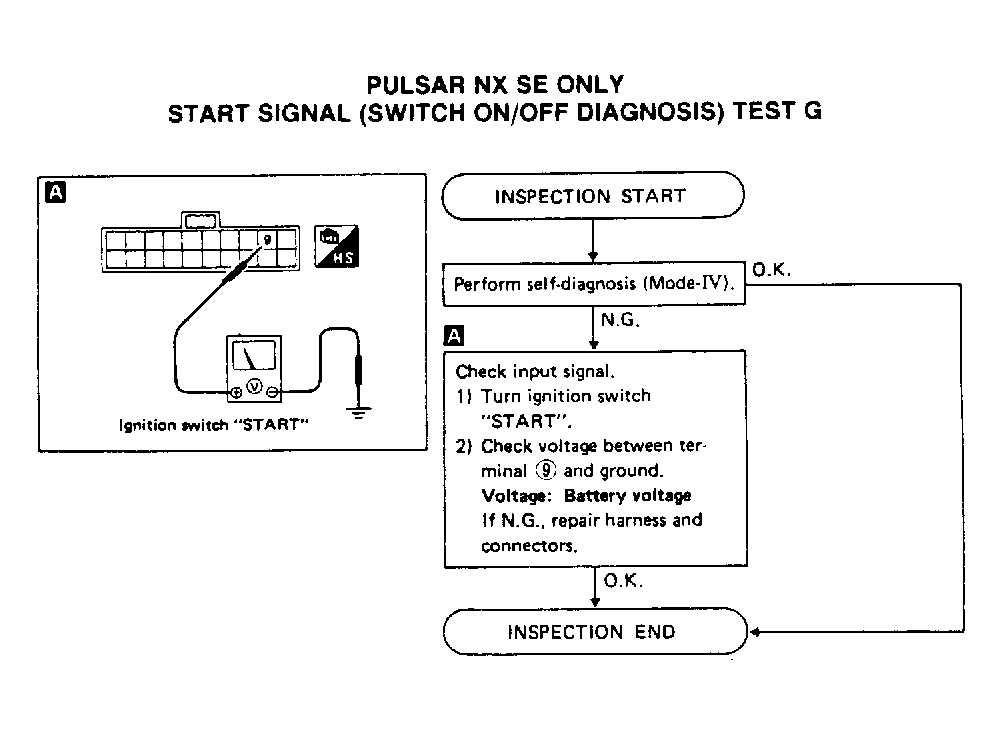

Fig 1: Test Test G, Pulsar NX SE

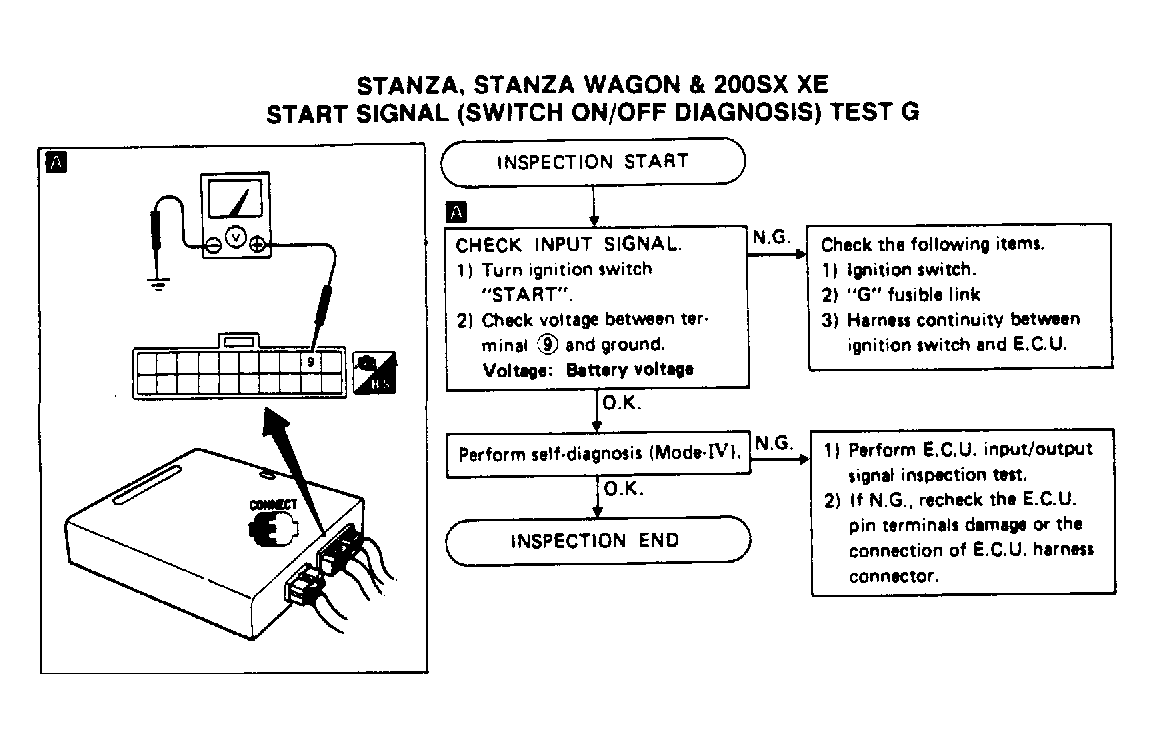

Fig 2: Test G, Stanza, Stanza Wagon & 200SX XE

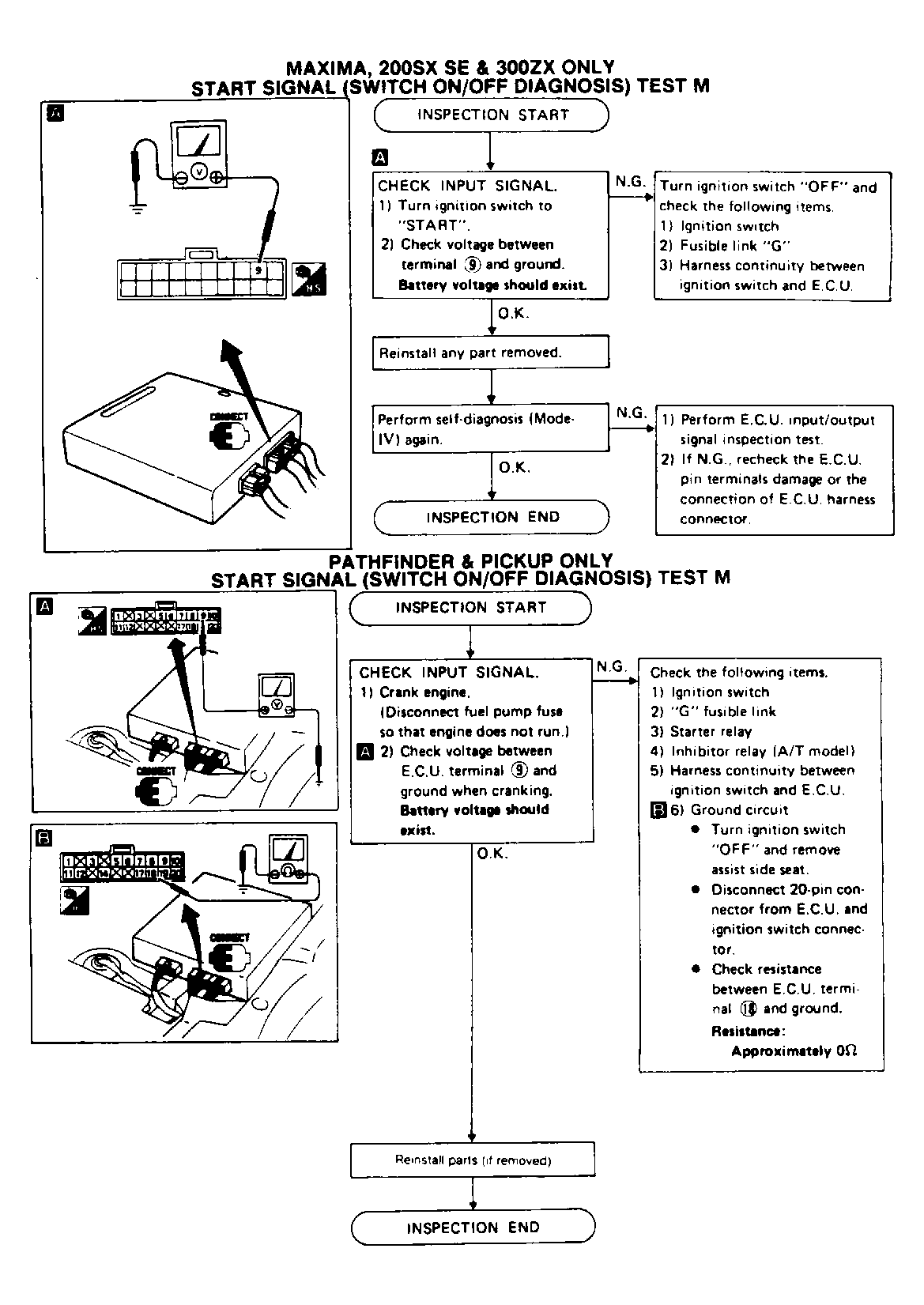

Fig 3: Test M, Maxima, 200 SX SE & 300ZX

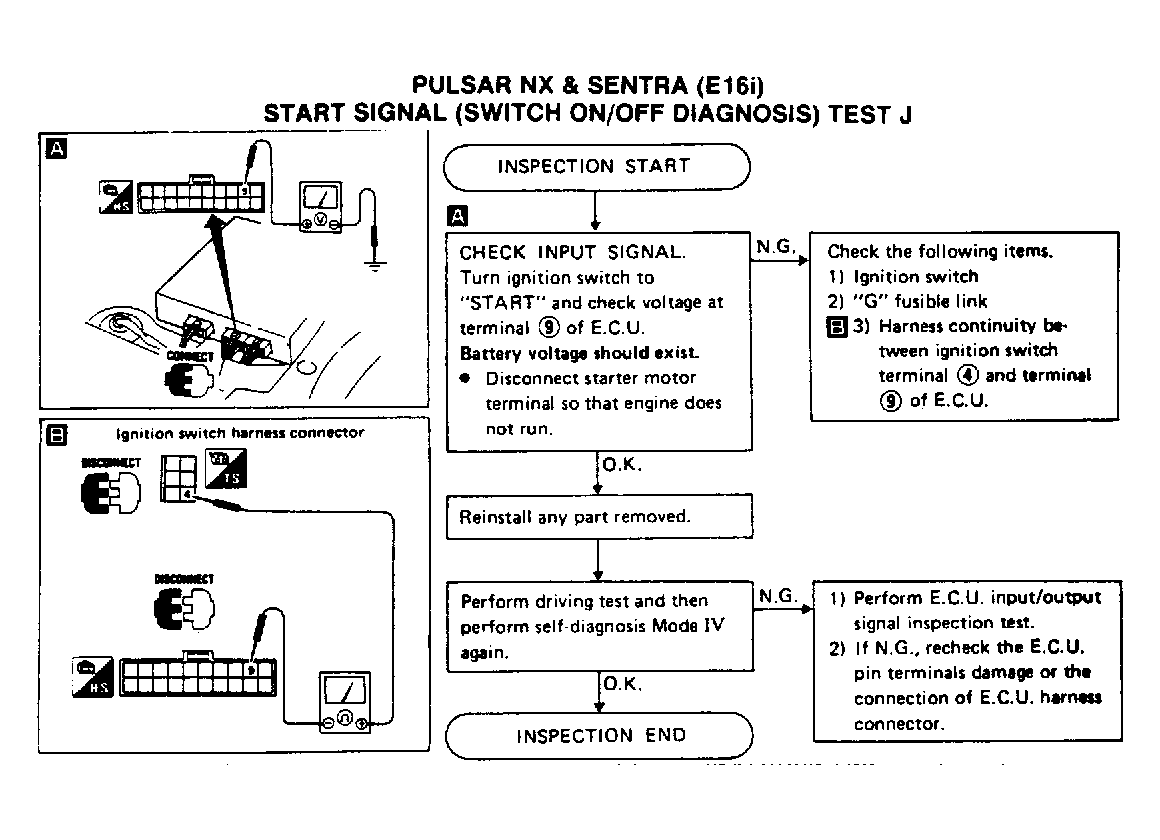

Fig 4: Test J, Pulsar NX & Sentra (E16i)

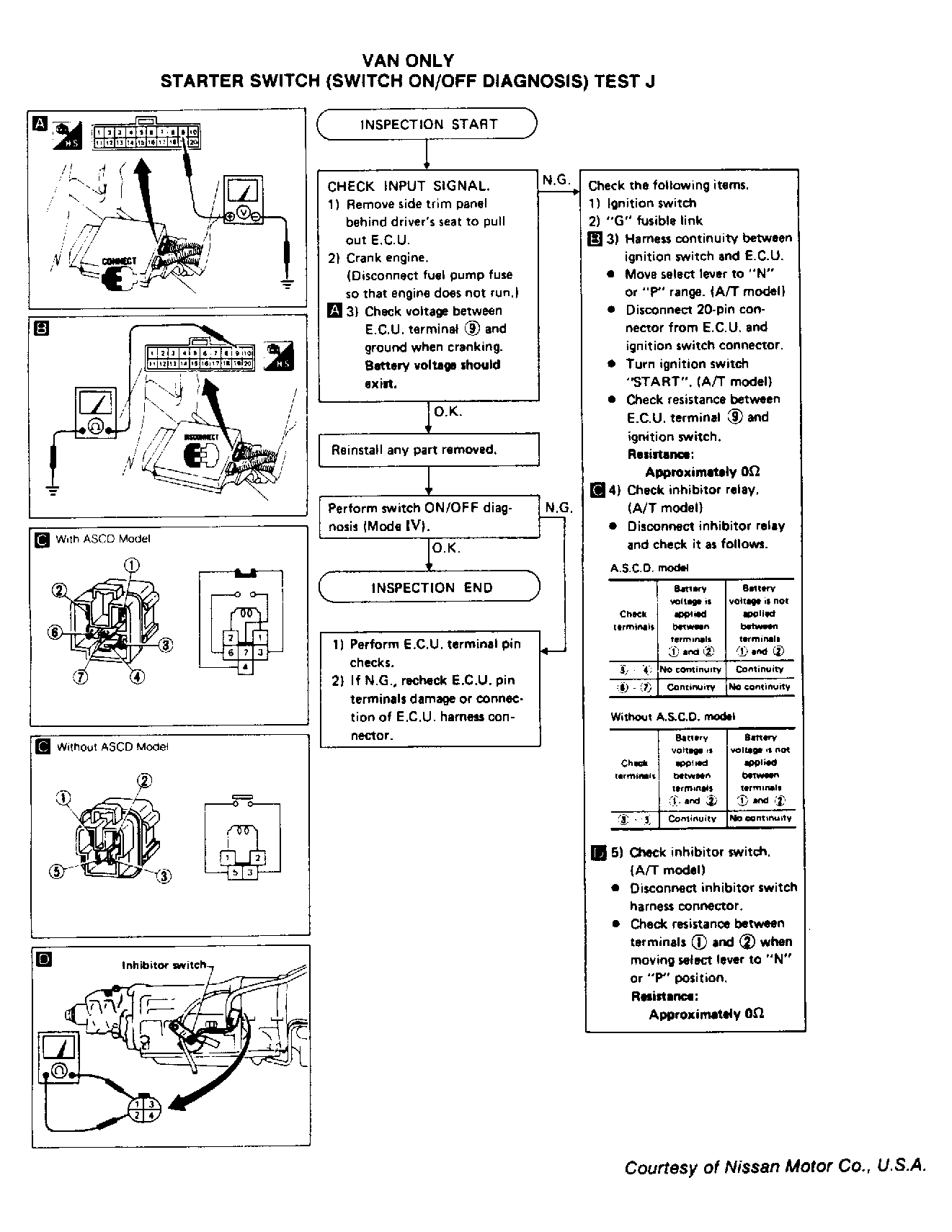

Fig 5: Test J, Van
